100° Vertical Clamp With Safety Lock, 2.5 kN Thrust, 6.5 kN Holding Force, 2.3 kg - Kukamet

Take advantage of a robust vertical clamp that combines a 6,500 N holding capacity, a 2,500 N closing force and a secure safety lock to maintain stable fixturing in demanding workshop environments. Order the clamp directly via Metav Werkzeuge or consult the Metav team for application advice.

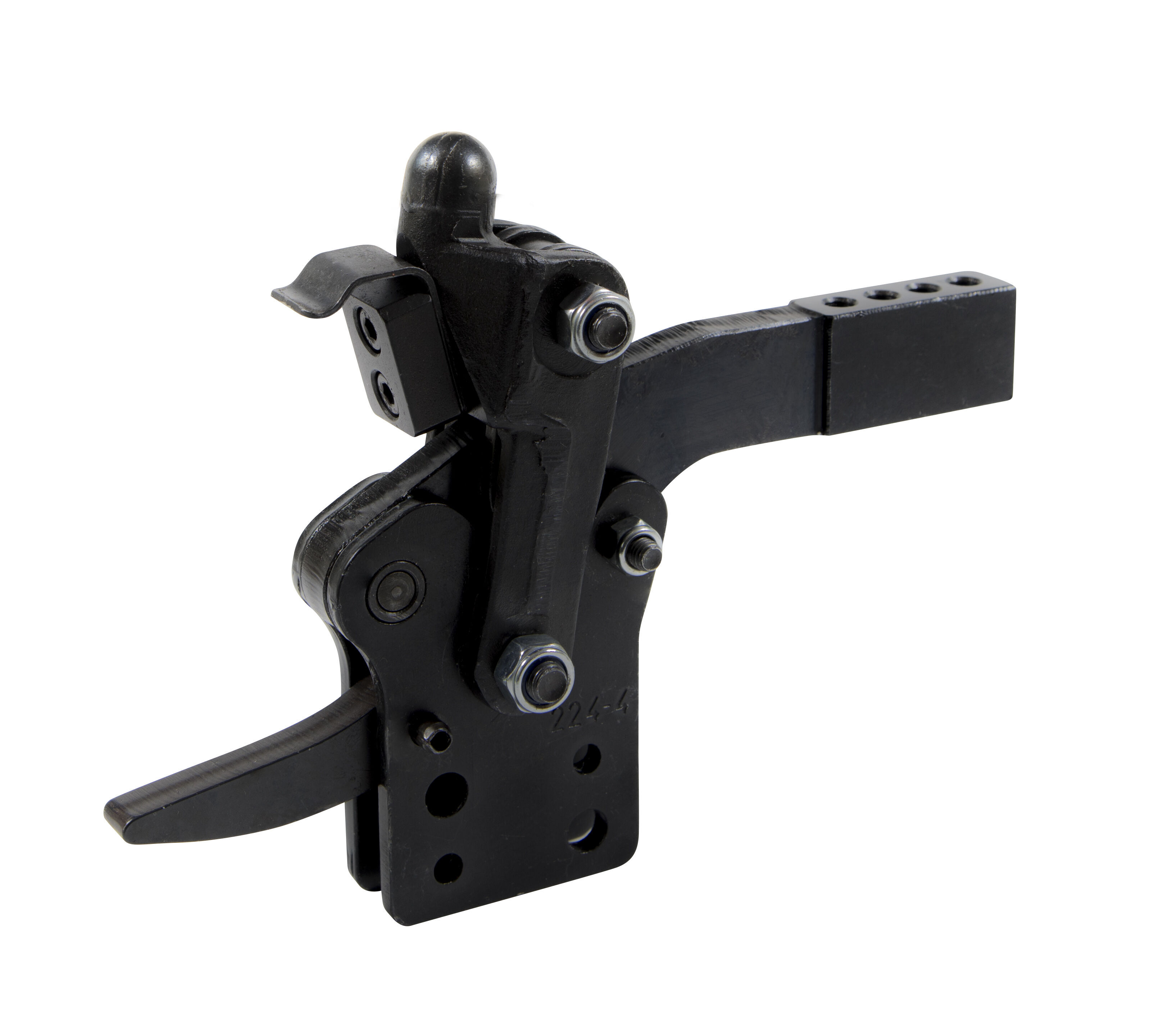

Vertikalspanner 224 — Vertical clamp with safety lock (Kukamet)

The Vertikalspanner 224 is a vertical clamp designed for secure workholding and repeatable fixturing in machining and assembly applications.

• Vertical base for upright mounting
• Safety locking mechanism included
• 6,500 N maximum holding force
• Black-burnished, robust finish

Dependable holding for precision machining

The vertical clamp delivers a clear performance advantage through its 6,500 N maximum holding force, paired with a 2,500 N closing force. This difference means the device secures parts under load while the actuating force remains manageable, which reduces wear on the actuator and shortens cycle times. The lever-clamp design provides fast engagement, making the clamp suitable for repetitive production where secure, repeatable clamping reduces scrap rates and downtime. Holding force and closing force are stated values that allow planners to calculate safety factors for fixtures and choose the correct clamp for the workpiece mass and cutting forces.

Built-in safety and workshop ergonomics

A mechanical safety lock prevents unintended release once the clamp is engaged, improving operator safety and protecting delicate workpieces during secondary operations. The clamp’s vertical foot mounting enables compact fixturing on upright plates and modular fixture systems, saving table space and simplifying setup. The black-burnished finish reduces surface glare and provides a degree of corrosion resistance that helps maintain a dependable contact surface between clamp and workpiece. These features together lower the risk of costly operator errors and support a steady production flow.

Fast installation and versatile use

Designed as a lever-style vertical clamp, the unit mounts quickly and integrates cleanly into jigs and fixture plates with standard workshop practices. The 100° operating angle offers a balance between clearance and compact design, making the clamp suitable for confined setups. At 2.3 kg it is light enough for manual handling during fixture changes but solid enough to resist vibration and lateral load. The clamp is therefore a practical choice where reliable clamping, straightforward assembly and robust finish matter to both small shops and production lines.

Specify the Kukamet Vertikalspanner 224 for secure vertical fixturing — contact Metav Werkzeuge in Emmerich for tailored advice and ordering at info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• SKU: 224-6-L
• GTIN: 8680731501308
• eClass: 21041717
• ETIM: EC011973

Core specifications

• Max closing force: 2,500 N
• Max holding force: 6,500 N
• Weight: 2.3 kg
• Operating angle: 100°

Design & special features

• Vertical foot (upright mounting)
• Safety locking mechanism
• Black-burnished finish
• Lever clamp style

FAQ

How much holding force does the clamp provide?
The clamp offers a maximum holding force of 6,500 N, providing secure fixturing for medium-duty machining tasks with the Vertikalspanner 224.

What is the closing or actuation force required?
Actuation requires up to 2,500 N of closing force; this balanced ratio reduces actuator strain while maintaining high holding capacity in the Kukamet clamp.

Can the clamp be mounted on vertical plates?
Yes, the vertical foot is designed for upright mounting and integrates with common fixture plates and jig systems.

Does the clamp include a safety lock?
Yes, the Vertikalspanner 224 features a mechanical safety lock to prevent unintended release during secondary operations.

Is the finish corrosion-resistant?
The black-burnished surface offers enhanced wear resistance and reduced glare, supporting longevity in workshop conditions.
