13x22mm Coupling M8x1.25mm Thread, Precision Mechanical Joint - Vertex
€3.81
Product information "13x22mm Coupling M8x1.25mm Thread, Precision Mechanical Joint - Vertex"
Take advantage of the compact dimensions and standard M8x1.25 thread to speed up assembly and reduce part mass in confined installations; the lightweight design and Vertex quality ensure consistent handling and simple stocking via Metav Werkzeuge — order directly through Metav Werkzeuge or consult the team for procurement guidance.
Vertex coupling 2612M – compact coupling with M8x1.25 thread
A Vertex coupling designed for mechanical connections in confined assemblies, offering a compact 13 x 22 mm footprint and compatibility with standard M8x1.25 threaded components.
- Compact 13 x 22 mm footprint
- Compatible with M8 x 1.25 thread
- Lightweight at 0.033 kg

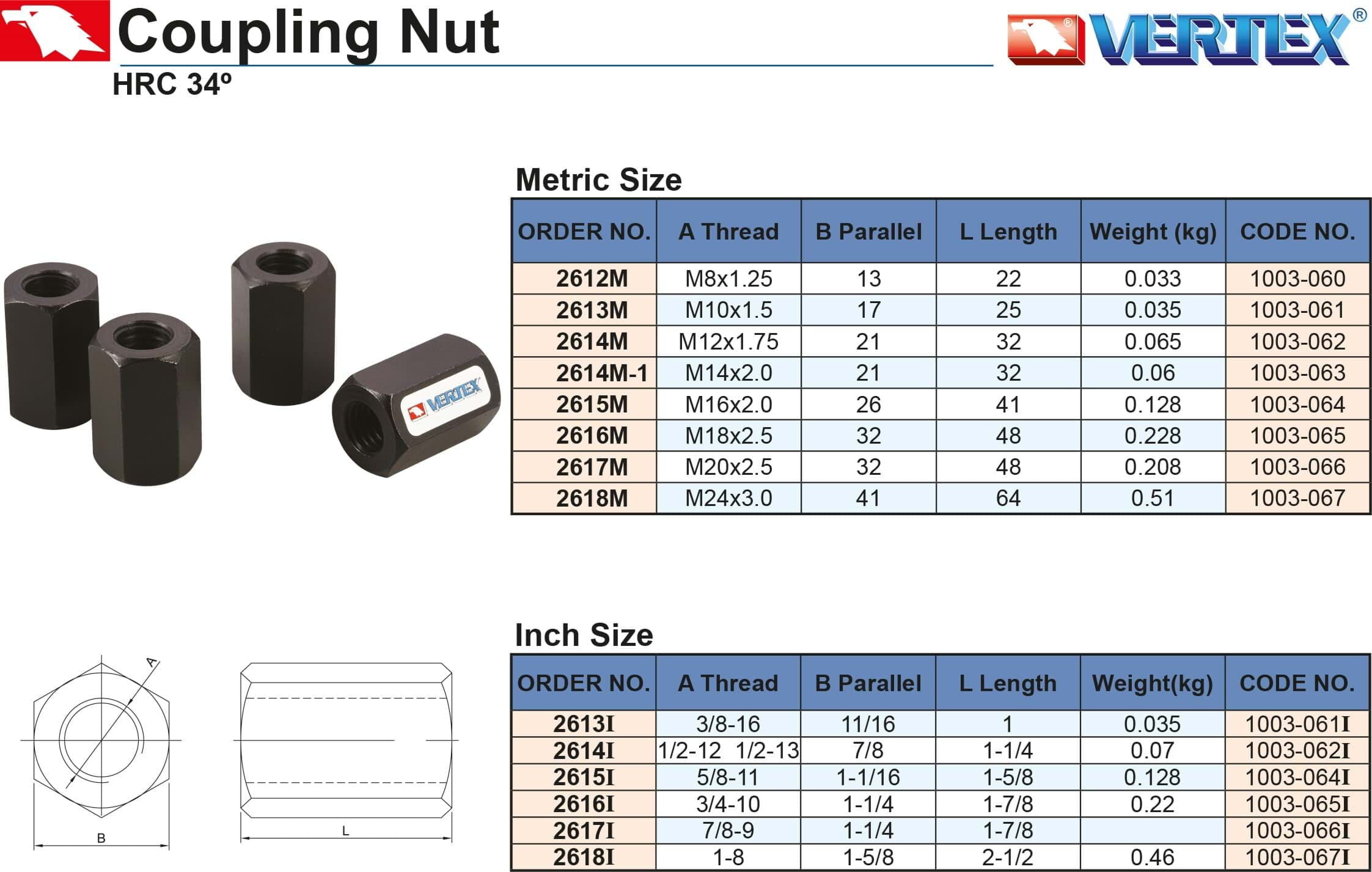

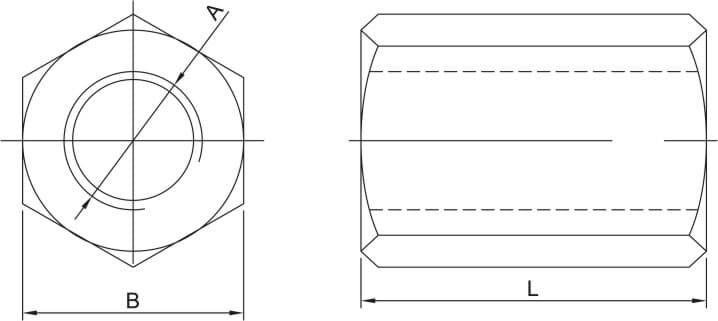

- Technical drawing and detail images available
Space-saving form that keeps assemblies compact and predictable
The compact 13 x 22 mm format reduces the installation envelope, enabling denser layouts on fixtures and jigs without compromising service access. With a mass of 0.033 kg, extra rotating or moving masses are minimised, which can contribute to lower inertia in dynamic assemblies. The standard M8x1.25 specification denotes a metric thread with a 1.25 mm pitch, meaning the part will mate reliably with common M8 fasteners and tapped holes. This combination of small footprint and standard threading supports faster component selection and simpler inventory management, while the clear dimensional data aids in collision checks and CAD planning.
Designed for straightforward integration and dependable mechanical connection
The coupling functions as a mechanical connector for threaded interfaces, designed to join components where a compact threaded junction is required. Compatibility with the M8x1.25 thread ensures interchangeability with widely used fasteners, reducing the need for bespoke machining. The visible technical drawing and detailed images allow quick verification of fit and orientation before assembly. Where thread engagement is critical, matching the mating thread quality and ensuring appropriate tightening practice secures a consistent connection; the compact geometry also simplifies access with standard hand tools, reducing assembly time and the potential for rework.
Procurement reliability and workshop-ready supply from Metav
Sourcing the part through established channels reduces lead-time risk for production and maintenance operations. Metav Werkzeuge operates as a quality filter for the European market, providing a central supply point for precision parts and workshop essentials. Stocking a concise, standardised coupling such as this supports predictable reordering and helps maintain continuity in production processes. The Vertex name indicates manufacturer origin for traceability, while the available technical files support purchasing decisions and quality checks during incoming inspection.
Secure the Vertex coupling 2612M for your next compact assembly via Metav Werkzeuge — contact Metav Werkzeuge in Emmerich for order placement or procurement advice and benefit from their European stock and quality filter.
Technical data
- SKU: 2612M
- GTIN: 4061905084799
- eClass: 21131711
Facts
- Size: 13 x 22 mm
- Thread: M8 x 1.25 mm
- Weight: 0.033 kg
Special features
- Designation: Coupling
- Brand: Vertex
- Technical drawing and detailed images available
FAQ
What thread does the coupling use?
The coupling is specified with an M8 x 1.25 thread, compatible with standard M8 fasteners and tapped holes.
What are the external dimensions of the part?
External dimensions are 13 x 22 mm, suitable for installations with limited space.
How much does the coupling weigh?
The coupling weighs 0.033 kg, approximately 33 grams.
Are technical drawings available for fit verification?
Yes, technical drawings and detailed images are provided for the coupling 2612M to assist with fit checks and planning.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
