11.6" DataMet Display Unit Windows Touchscreen MDS PRO, CSV/XLS/PDF Export, Wi‑Fi RJ‑45 HDMI - Microtech Metrology

Take advantage of a ready-to-run data-collection station that combines an 11.6" Full HD touchscreen, robust connectivity and flexible export options. The unit’s Windows platform with the MDS PRO app ensures rapid integration with Microtech measuring instruments and direct export to CSV, XLS or PDF for immediate processing — order the MDS DataMet display unit DESKTOP directly via Metav Werkzeuge or consult our specialists for configuration advice.

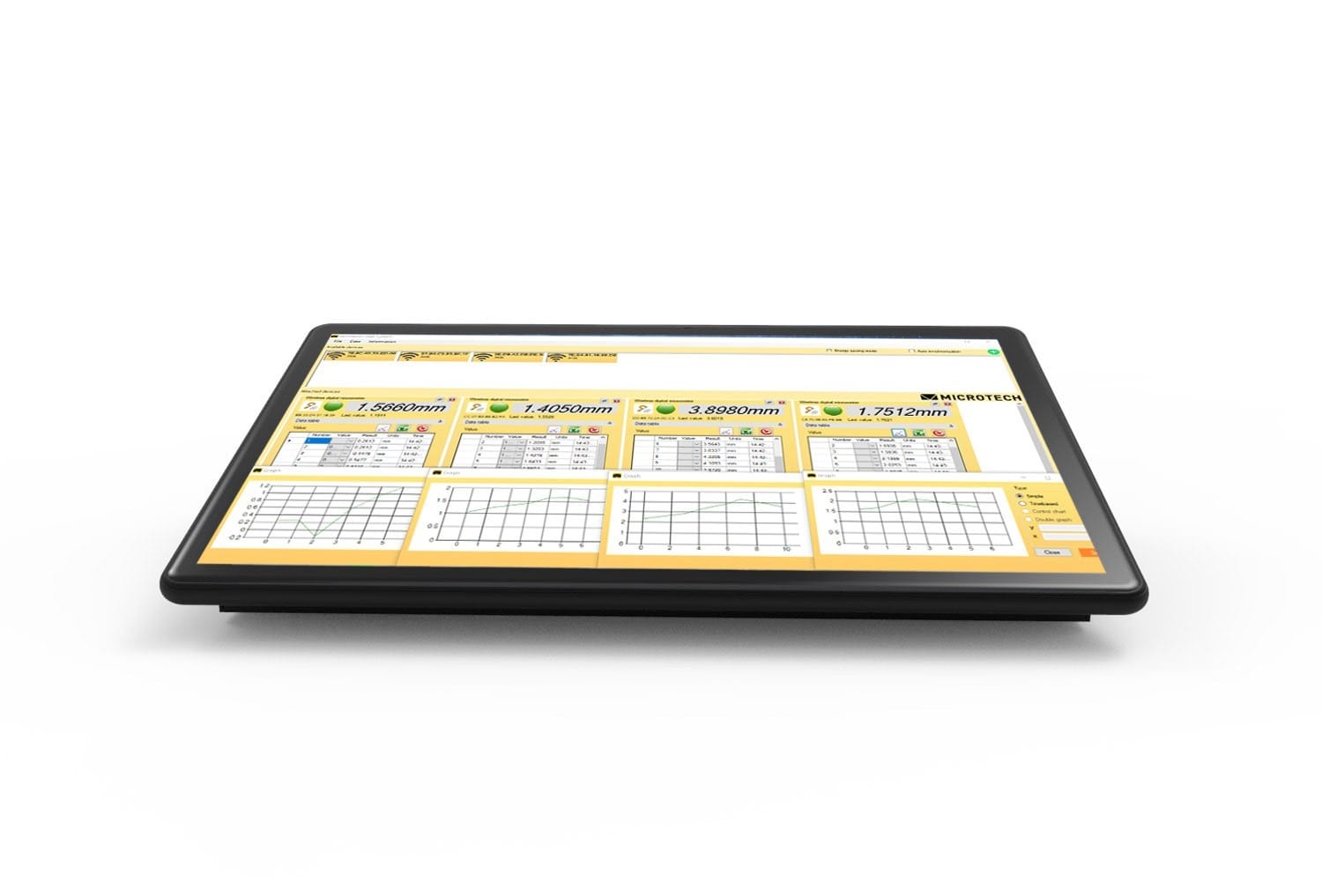

MDS DataMet display unit DESKTOP — Windows-based data-collection display with 11.6" touchscreen (Microtech Metrology)

The MDS DataMet display unit DESKTOP is a compact, Windows-based data terminal engineered for production and laboratory environments to collect, synchronise and export measurement data from Microtech instruments.

• 11.6" Full HD touchscreen display
• Windows 10 with MDS 5.5 PRO included
• Multi-protocol wired and wireless connectivity
• Direct export to csv, xls and pdf formats

Streamlined data capture that accelerates inspection cycles

The system is delivered as a ready data-collection solution, combining a Windows tablet PC running MDS PRO with a USB dongle for immediate use. This configuration enables automatic device pairing, autoconnection and reading synchronisation so measurement transfers occur reliably without a separate PC or tablet. The result is a measurable reduction in manual entry time and fewer transcription errors, which translates directly into faster inspection throughput and clearer audit trails for quality records. The included software supports user management and Go/NoGo checks to keep repetitive tasks consistent.

Broad connectivity and seamless integration with enterprise tools

Designed for industrial metrology, the display unit supports multiple physical and wireless interfaces (USB, RS‑232, RS‑485, RJ‑45 and Wi‑Fi) and offers HID modes for peripherals. Data can be exported in csv, xls and pdf formats and sent on‑line to external applications such as Excel, SAP or SolidWorks; export settings (decimal separator, column symbols) are adjustable to match local workflows. A graphical mode and 2D plotting save visual results in PNG format, making trend analysis and reporting straightforward. These capabilities simplify integration into existing production IT and reduce time spent on data conversion.

Ergonomic design for shop‑floor reliability

Measuring tasks are supported by practical functions such as mm/inch conversion, timer, resolution selection and optional footswitch or button inputs for zeroing and data capture, which maintain operator ergonomics and speed. At 283 × 177 × 73 mm and approximately 1.25 kg, the unit is compact enough for bench or mobile use while still offering a clear 11.6" viewing area for graphs and tables. The compact form factor, combined with multi‑language support, makes it suitable for small inspection stations through to multi‑machine quality cells, helping firms standardise measurement processes across sites.

Secure, auditable workflows and adaptable operation

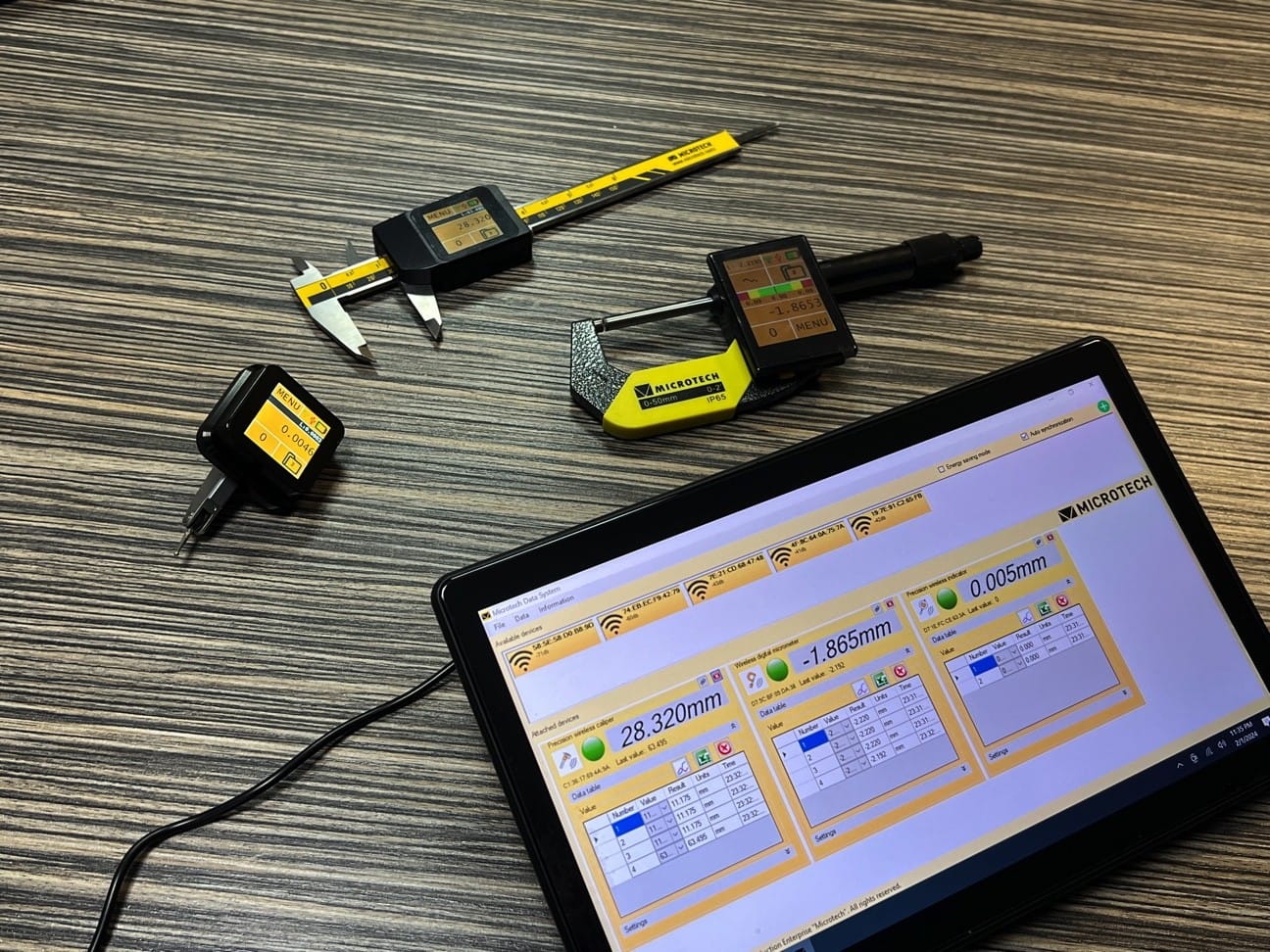

The platform supports multiple dongle and wireless connections to interface with several instruments concurrently, enabling centralised collection from several heads or benches. File editing of common office formats is supported directly on the device, and graphical exports allow immediate visual checks without additional software. These features make the device a practical hub for both daily quality control and traceable reporting, bringing industry‑grade data handling within reach of standard workshop teams.

Contact Metav Werkzeuge today to discuss Microtech Metrology’s MDS DataMet display unit DESKTOP, confirm compatibility with specific gauges and systems, or request a tailored configuration; Metav Werkzeuge can be reached at info@metav-werkzeuge.com or +49 2822 7131930

Technical Data

• Article number: 299999001
• Label: MDS DataMet display unit DESKTOP
• Manufacturer: Microtech Metrology

Facts

• Touchscreen: 11.6" (1920 × 1080)
• Platform: Windows 10 / MDS 5.5 PRO
• Dimensions, mm: 283 × 177 × 73
• Weight, kg: 1.25
• USB ports: 4
• RS‑232 ports: 3
• RS‑485 ports: 1
• Wireless connections: 8 (max 32)
• USB‑dongles: 1 (optional up to 8)

Special features

• Ready data-collection solution with tablet PC and MDS PRO app
• USB dongle PRO included
• Autoconnection and reading synchronizing
• Save data to csv, xls, pdf; save graphs as png
• On‑line export to Excel, SAP, SolidWorks
• Graphical mode and 2D graphical mode
• Go/NoGo functions and user manager
• mm/inch conversion, timer and resolution selection
• HDMI, RJ‑45, card reader
• Optional footswitch and DataMet buttons
• Multilanguage support (10 languages)
• *.xls, *.csv, *.doc file editor on device

FAQ

What interfaces are available for connecting gauges? The unit supports USB, RS‑232, RS‑485 and Wi‑Fi connectivity; HID over USB and wireless HID modes are supported for peripherals and measuring instruments.

Can measurement data be exported to enterprise systems? Yes — the device exports to csv, xls and pdf and can resend data to external applications such as Excel, SAP and SolidWorks with adjustable format settings.

Is a dedicated software licence included? The package includes the MDS PRO app on a Windows 10 tablet and a USB dongle PRO for licensing and secure operation.

Is graphical data available for quality documentation? Graphical and 2D graphical modes are available and plotted charts can be saved as PNG files for reports and traceable visual evidence.

How many instruments can be connected simultaneously? Multiple instruments can be paired; the unit supports up to 8 wireless connections by default (expandable up to 32) and multiple USB/serial peripheral connections.

Is a footswitch available for hands‑free capture? A footswitch is offered as an optional accessory for zeroing and data capture to improve ergonomics and throughput.
