MDS DataMet display unit IP67 – rugged Windows tablet data collector (Microtech Metrology)

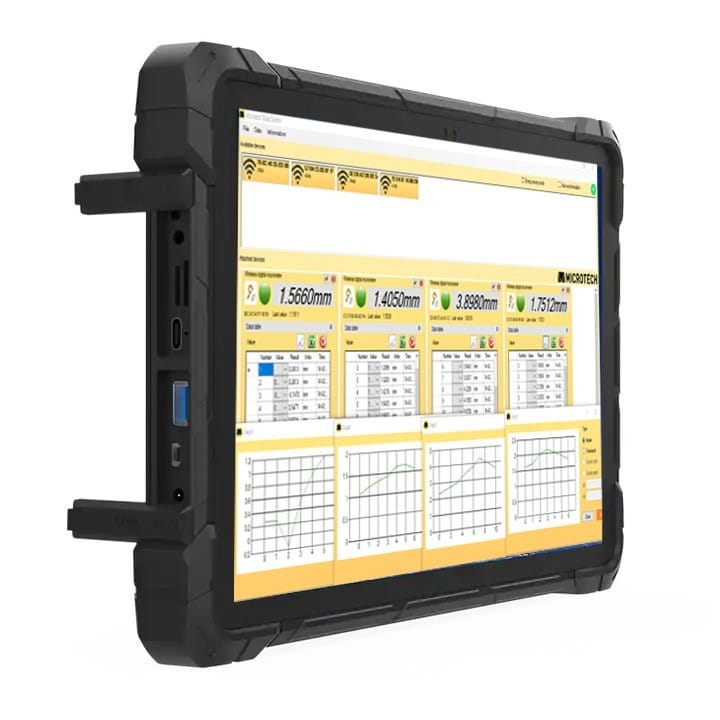

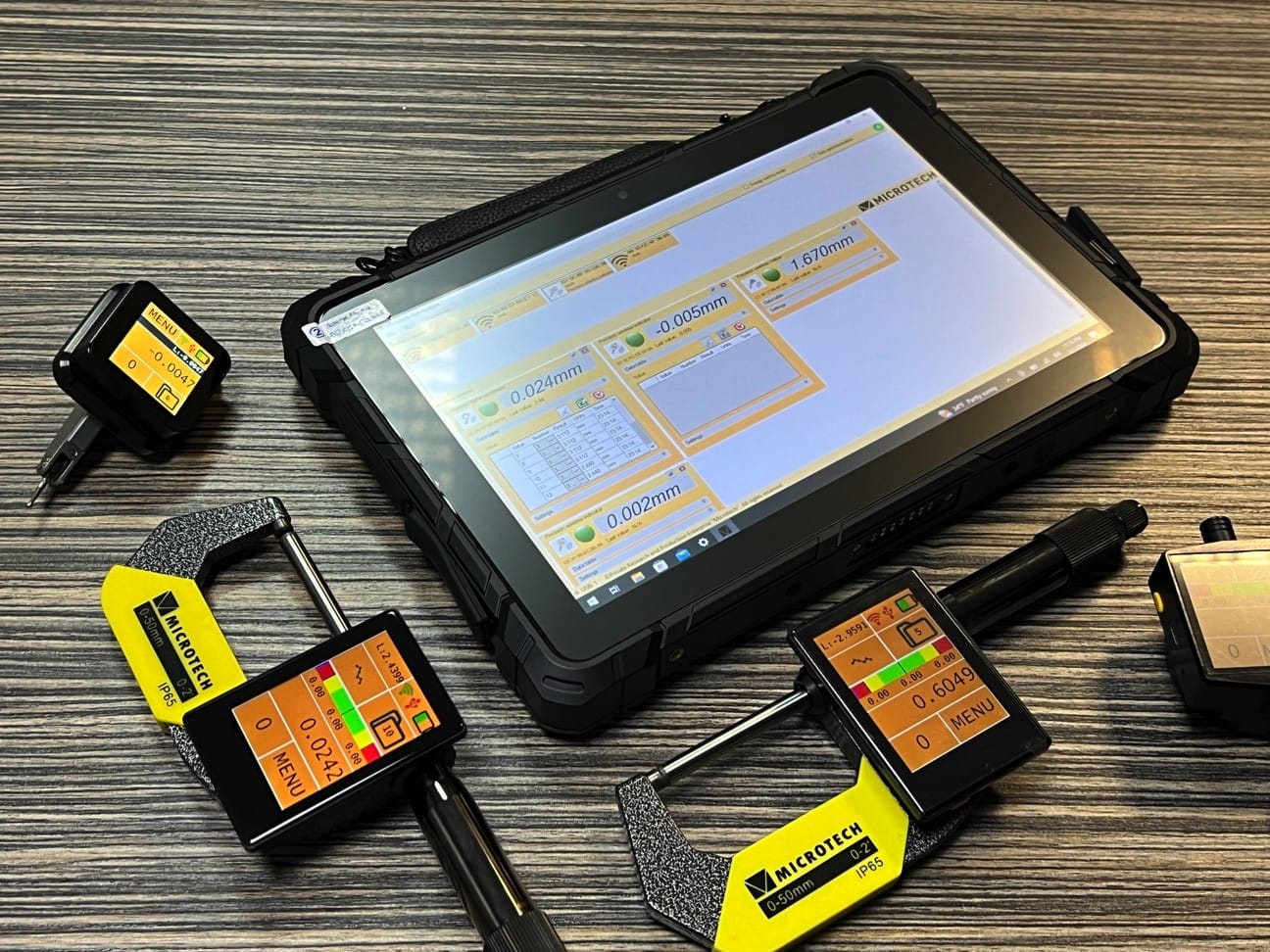

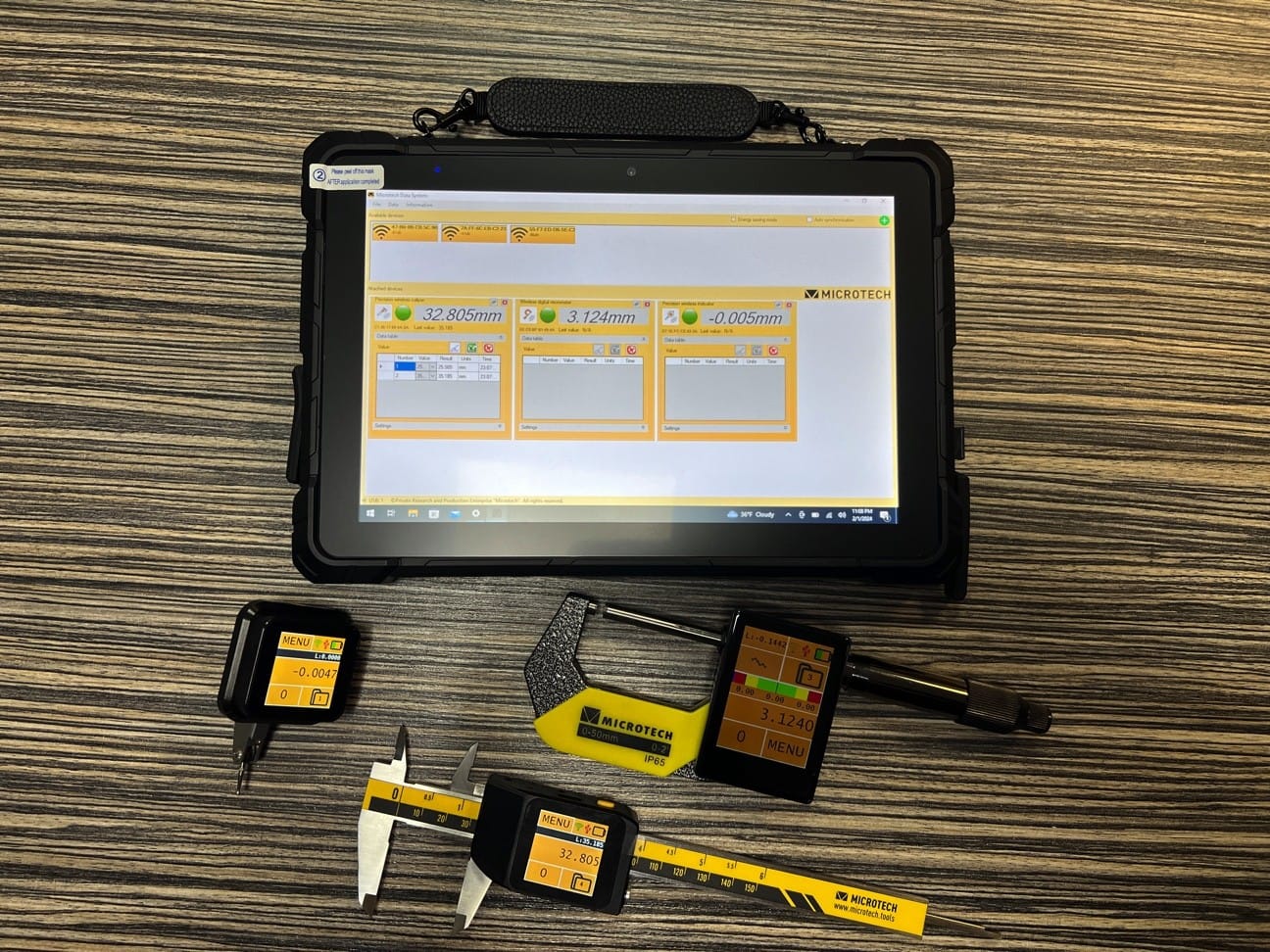

The MDS DataMet display unit IP67 is a portable, impact‑resistant display and data‑collection platform designed for direct connection to Microtech metrology instruments, enabling on‑the‑fly measurement capture on the shop floor.

*IP67 dust and splash protection for harsh environments *Integrated Windows 10 tablet with MDS PRO software *8000mAh battery for extended operation *Exports to csv, xls and pdf plus graphical png output

Reliable, protected capture for the production environment

The display unit delivers robust data acquisition under demanding shop conditions thanks to its IP67 rating and a capacious 8000mAh rechargeable Li‑Pol battery. These characteristics translate into fewer interruptions during production shifts and a lower risk of data loss when measurements are taken in wet or dusty work areas. The compact construction and light weight (approx. 1.15 kg with a footprint of 280×184×26 mm) make the unit easy to handle, mount or carry between workstations while maintaining the physical resilience expected in industrial settings.

Fast instrument integration and seamless data flow to ERP/CAD

Equipped with Windows 10 and the MDS PRO application, the system provides automatic device pairing and autoconnection, enabling immediate reading synchronisation from Microtech instruments. Multiple interfaces (wired and wireless), a USB dongle option and standard serial/USB support allow direct export to systems such as Excel, SAP or SolidWorks. Collected values can be saved as csv, xls or pdf, and graphical results exported as png, facilitating rapid inclusion in quality reports or process records and reducing transcription effort.

Clear visual feedback and user‑oriented controls for repeatable checks

The wide 10" touchscreen (1280×800) displays measurement values alongside graphs and Go/NoGo indicators, making pass/fail decisions visible at a glance. The Graphical mode and 2D‑Graphical mode provide visual traces of measurement trends for immediate interpretation, while user management and configurable resolution selection support controlled inspection routines. Optional footswitches and data‑collection buttons enable hands‑free operation, improving ergonomic handling and consistency across repeated measurements.

Designed to fit established workflows and boost productivity

Connectivity options including Wi‑Fi, RJ‑45 and RS‑232 ensure compatibility with legacy and modern instruments alike, while the ability to resend data to external apps and a built‑in file editor simplify workflow automation. Multilanguage support and onboard functions such as mm/inch conversion, timers and Go/NoGo checks reduce training time and increase throughput. The device is optimised for efficient data chains: from measurement capture to formatted exports and image saves, it supports traceable, auditable records for production and quality assurance.

For a tailored quotation, supply options and integration planning from Metav Werkzeuge in Emmerich, please contact our team to discuss the MDS DataMet display unit IP67 and configuration choices.

Technical Data

• Article number: 299999003
• Touchscreen display: 10" (1280x800)
• Protection: IP67
• Platform: Windows 10 / MDS 5.5 PRO
• Rechargeable battery: Li‑Pol 8000mAh
• Dimensions (mm): 280×184×26
• Weight (kg): 1.15

Facts

• USB ports: 2 + 1
• USB‑HID: 2
• Wireless devices: 8 (max 16)
• USB‑dongles: 1 (optional 8)
• RS‑232: 1
• Multilanguage: 10 languages
• Touchscreen resolution: 1280×800

Special features

• Autoconnection
• Reading synchronizing
• User manager
• Foot‑switch connection (wired and wireless option)
• mm/inch conversion
• Go/NoGo functions
• Graphical mode
• 2D‑Graphical mode
• Timer
• Resolution selection
• Resend to external apps
• Save data to csv, xls, pdf
• Save graph as png
• *.xls, *.csv, *.doc file editor
• HDMI
• RJ‑45
• Wi‑Fi
• Card reader
• App installation support

FAQ

What protection class does the display unit have?
The MDS DataMet display unit IP67 features an IP67 enclosure, providing dust tighting and protection against immersion, which is suited to typical shop‑floor conditions.

Which data formats are supported for export?
Measurement and graphical outputs from the MDS DataMet system can be exported as csv, xls and pdf files; graphs can be saved as png images for inclusion in reports.

Can the unit connect to older instruments with serial interfaces?
Yes, the device offers an RS‑232 port in addition to USB and wireless interfaces, ensuring compatibility with legacy measurement equipment.

How long does the battery last under typical use?
The built‑in 8000mAh Li‑Pol battery is designed for extended operation to minimise interruptions; actual runtime depends on display and wireless usage patterns.

Is the MDS software preinstalled and ready for use?
The unit ships with MDS PRO on a Windows 10 platform, enabling immediate configuration and data collection once paired with Microtech instruments; optional dongles and footswitches can be added for customised workflows.
