300mm Digital Height Gauge With Rotary Fine-Adjust, 0.01mm Readout, Carbide Scriber And Dial Indicator Arm - Metav IndustryLine

Take advantage of the precise 0.01 mm reading and robust stainless steel construction for repeatable height measurements in the workshop; the integrated RB 5 data output and dial‑gauge mount speed up inspection routines and traceability — order directly via Metav Werkzeuge or contact our consultants for technical advice.

M219.059 Digital height gauge — 300 mm range, 0.01 mm resolution (Metav IndustryLine)

The M219.059 Digital height gauge is a 300 mm electronic height gauge for workshop inspection and layout tasks, featuring a handwheel and a dial‑gauge mount for measuring on granite plates or test stands.

• 300 mm measuring range, 0.01 mm resolution
• Carbide scribing needle and measuring arm
• Handwheel for fine, controlled positioning
• RB 5 data output for external recording

Precision that suits everyday shop inspection

The instrument delivers a 0.01 mm display resolution combined with a measured accuracy of approximately 0.03 mm across the full 300 mm range, which places it squarely in the standard category for workshop metrology. This balance of reach and stiffness makes the device well suited to routine dimensional checks, fixture set‑up and first‑article inspection. The fine readout and consistent accuracy translate into fewer reworks and more reliable process control, helping maintain steady throughput on the shop floor.

Built for steady handling and repeatable contact

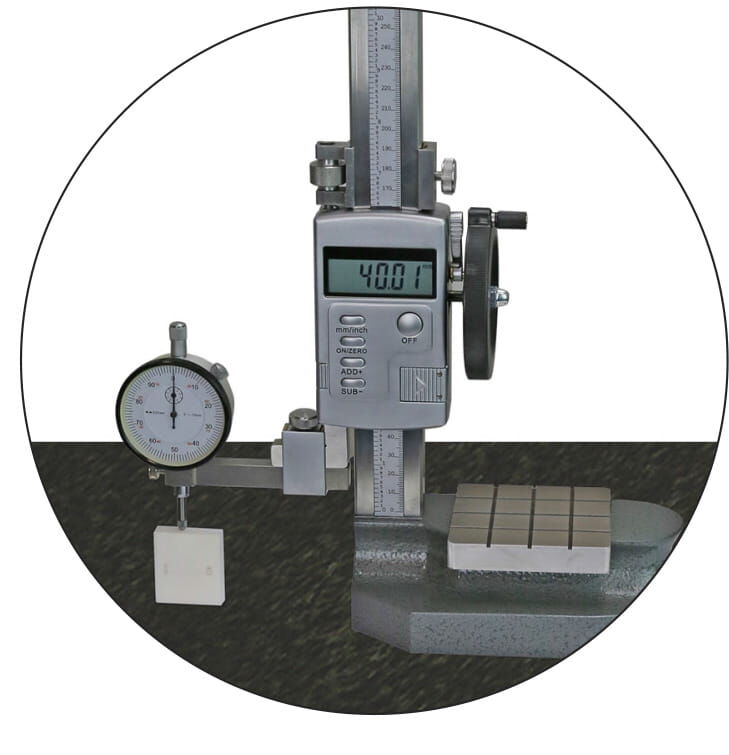

A robust stainless steel column and an 80 × 80 mm measuring table give the height gauge the rigidity required for stable measurements. The fitted handwheel allows deliberate, low‑force advancement of the scriber, reducing operator variation, while the carbide scribing needle provides a defined contact point for marking or layout. The included measuring arm and dedicated dial‑gauge mounting point enable use with a dial indicator for comparative checks or when higher tactile feedback is required; together these features support reproducible results with minimal setup time.

Digital workflow and inspection efficiency

The clearly arranged digital display includes on/off, mm/inch, zero and preset keys for fast configuration. The built‑in RB 5 data output permits direct connection to recording devices or data loggers, simplifying documentation and quality records. Integrating this height gauge into an inspection routine reduces manual transcription errors and accelerates batch sign‑off — a rational improvement that directly benefits quality assurance and traceability.

For a practical measurement solution that integrates with workshop inspection workflows, contact Metav Werkzeuge to discuss the M219.059 and available accessories or request technical assistance by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930

Technical data

• Article number: M219.059
• GTIN: 4054469163079
• eClass: 21170334
• Customs tariff number: 90173000

Numbers / Core technical data

• Measuring range: 0–300 mm
• Resolution (display): 0.01 mm
• Specified accuracy: 0.03 mm
• Weight: 8 kg
• Measuring table: 80 × 80 mm

Special features / Versions

• Material: stainless steel
• Carbide scribing needle (HM)
• Handwheel for fine adjustment
• Measuring arm with dial‑gauge mount for granite plate use
• Digital display with on/off, mm/inch, zero and preset keys
• Data output: RB 5
• Clamp thread: 10×24

FAQ

What measurement range does this height gauge cover?
The M219.059 height gauge covers a measuring range of 0–300 mm, offering a standard workshop reach for fixtures, components and general inspection tasks.

How fine is the display and what accuracy can be expected?
The digital readout shows 0.01 mm increments; the stated accuracy for the full 300 mm range is approximately 0.03 mm, suitable for routine quality control.

Can measurement results be exported electronically?
Yes, the unit provides an RB 5 data output for connection to external recorders or data capture systems to support traceability.

Is the scriber durable for repeated layout work?
The gauge is supplied with a carbide scribing needle, which provides durable, precise contact for marking and layout operations.

Does the gauge accept a dial indicator for comparative checks?
Yes, the M219.059 includes a measuring arm and a dedicated mount for a dial gauge, enabling comparative measurement or higher‑sensitivity checks on a granite plate or bench.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
