17–42mm Toggle Clamp Horizontal Base With Spring Safety Lock, 220N Thrust, Zinc-Plated - Kukamet

Robust, compact and practical: the zinc-plated construction combined with 220 N clamping force and an adjustable arm 17–42 mm delivers reliable holding for repetitive fixtures; order the 311 toggle clamp directly via Metav Werkzeuge or consult our specialists for application advice.

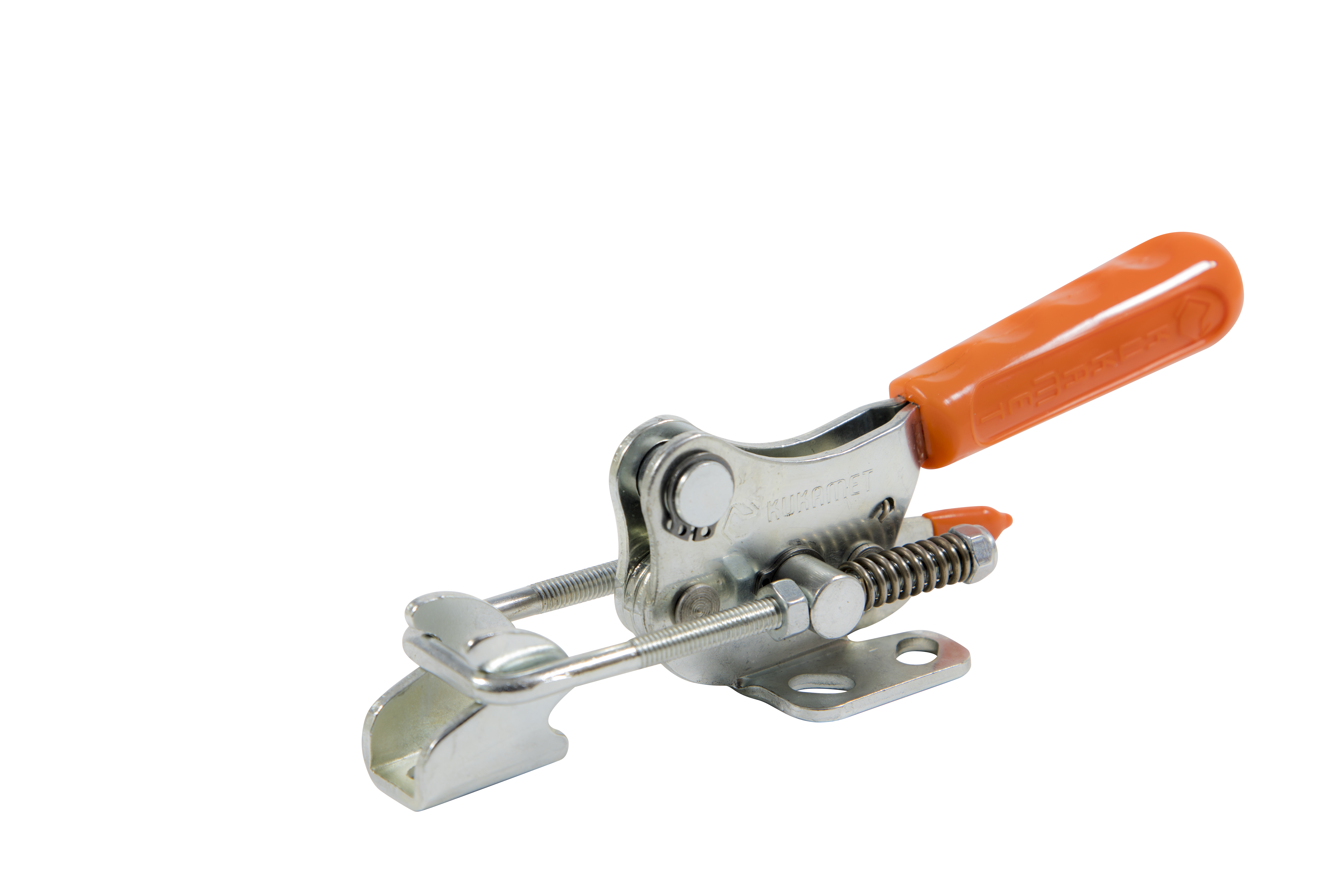

311 Toggle clamp — horizontal foot, spring-loaded with safety latch (Kukamet)

A 311 toggle clamp for horizontal mounting, providing secure, repeatable workpiece holding in production and workshop fixtures.

• Horizontal-foot mounting for stable fixation
• Spring-loaded mechanism with safety latch
• Zinc-plated corrosion resistance
• Adjustable spindle 17–42 mm for versatility

Consistent clamping performance for repetitive production

Designed for fixtures and jigs where reproducible results matter, the 311 toggle clamp applies a defined 220 N clamping force and a 325 N holding force, ensuring components remain stationary during machining, assembly or testing. The adjustable arm 17–42 mm allows fine tuning of the contact point, which reduces setup time and increases throughput in repeat operations. Numerical values are given to enable straightforward selection against fixture requirements and to support process planning.

Quick, safe operation reduces set-up time

A spring-loaded action combined with a safety latch offers both immediate clamping and secure locking to prevent accidental release during cycle times. The horizontal mounting foot simplifies integration into base plates and fixture plates, while the built-in hook provides a positive engagement. This mechanism is engineered to shorten clamping cycles, improve operator confidence and lower the risk of rework due to movement during handling.

Durable finish and compact design for workshop applications

The zinc-plated surface protects the clamp against corrosion in typical workshop environments, while the compact mass (weight 0.341 kg) keeps added inertia low when used in automated or manual fixtures. The combination of a horizontal foot and compact dimensions makes the device suitable where space is limited but reliable fixation is required. The clamp’s straightforward geometry and serviceable spindle thread length mean it can be adjusted or replaced quickly, supporting steady production with minimal downtime.

Contact Metav Werkzeuge for advice on fixture integration of the Kukamet 311 toggle clamp and for reliable supply from Emmerich — eMail: info@metav-werkzeuge.com / Tel: +49 2822 7131930

Technical Data

• SKU: 311-3-Y-L
• GTIN: 8682843523858
• Manufacturer: Kukamet

Core data

• Clamping force: 220 N
• Holding force: 325 N
• Arm range: 17–42 mm
• Thread length: 75 mm
• Weight: 0.341 kg
• Eclass: 21041718
• ETIM: EC011973

Special features

• Mounting: horizontal foot
• Hook included
• Spring-loaded with safety latch
• Material/coating: zinc-plated

FAQ

What clamping and holding forces does this clamp provide?
The Kukamet 311 toggle clamp delivers a clamping force of 220 N and a holding force of 325 N, suitable for many light- to medium-duty fixture tasks.

Is the clamp suitable for cramped fixture layouts?
Yes, the compact design and horizontal-foot mounting make the 311 toggle clamp appropriate for confined fixture plates and tight assembly stations.

How is the clamping point adjusted?
Adjustment is achieved via the spindle/arm, which covers a range of 17–42 mm; thread length is 75 mm to allow secure setting of the contact point.

What finish does the clamp have and how does it affect durability?
The clamp is zinc-plated, offering corrosion resistance for typical workshop environments and extending service life under normal operating conditions.
