10mm T-Slot Nut Single, M8 Threaded - Vertex
€4.27
Product information "10mm T-Slot Nut Single, M8 Threaded - Vertex"
Take advantage of a compact component that delivers a secure clamping interface and straightforward compatibility with standard 10 mm profiles; combine reliable fastening, precise fit and rapid procurement via Metav Werkzeuge for uninterrupted workshop workflows. Order the part directly through Metav Werkzeuge or consult the technical team for application guidance.
3412M — Vertex T-slot nut, compatible with 10 mm profiles and M8 threading
3412M is a compact T-slot nut designed for secure fixture in 10 mm T-slots, suitable as a single supply item for machine tables and fixture systems
- Compatible with 10 mm T-slot profiles
- M8 thread for secure fastening
- Compact dimensions 9.7x22x6 mm
- Supplied as a single item
Precise engagement with 10 mm profiles for dependable fixturing
The T-slot design offers a consistent mechanical interface that aligns with standard 10 mm slot profiles, ensuring repeatable positioning and reduced setup time. The low-profile, compact geometry (9.7x22x6 mm) minimises interference within assemblies while providing a stable bearing surface for clamping elements. In practice, this results in fewer alignment checks during part changeovers and a more efficient workflow when integrating the nut into modular fixturing systems.
Secure M8 fastening that supports reliable clamping forces
Threaded engagement is provided by an M8 thread, which is widely used in workshop and industrial fixtures for its balance of strength and accessibility. The internal thread allows conventional bolts or studs to be used without additional adapters, simplifying inventory and assembly processes. As a result, clamping assemblies can be tightened to the required torque using standard tools, delivering consistent holding forces and lowering the risk of slippage under operational loads.
Engineered compatibility and supply reliability through a trusted channel
Manufactured by Vertex, this component is intended for integration into fixture plates, machine tables and clamping rails where a standard T-slot nut is required. Supplied individually, the item is well suited for targeted replacements or small runs where bulk packs are unnecessary. Procuring the part via Metav Werkzeuge provides access to quality-controlled stock and the specialist know-how of a precision partner, supporting seamless procurement and installation in industrial and trade environments.
For application advice or compatibility checks for the Vertex 3412M T-slot nut, contact Metav Werkzeuge to request a fitment recommendation or technical clarification through their sales and consultancy channels
Technical Data
- Article number: 3412M
- GTIN: 4061905084157
- EClass: 21029107
Core dimensions
- Overall size: 9.7 x 22 x 6 mm
- Slot compatibility: 10 mm
- Thread: M8
Features & suitability
- Type: T-slot nut, single item supply
- Brand: Vertex

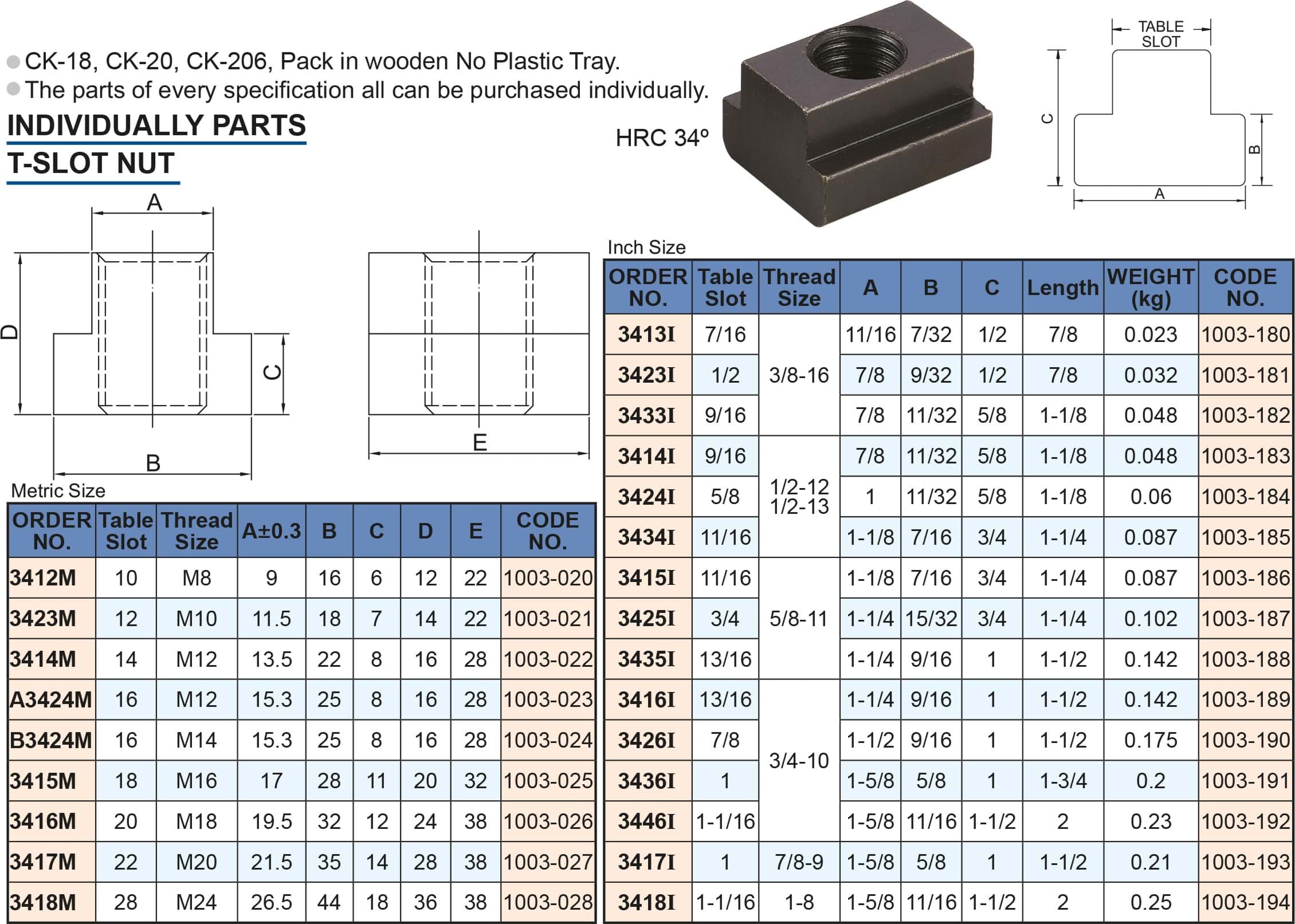

- Images: technical drawing and product detail available
FAQ
What slot size is this nut designed for? The item is intended for 10 mm T-slot profiles and provides a standardised interface for fixture systems.
Which thread size does the nut accept? The nut features an M8 internal thread suitable for common bolts and studs used in clamping assemblies.
Can this part be used as a replacement in existing fixtures? Yes, the Vertex 3412M T-slot nut is designed for straightforward replacement in compatible 10 mm profile systems.
Is the product supplied individually or in sets? This entry is supplied as a single item, indicated by the single-item designation for targeted replacements.
Where can technical drawings be obtained? Technical drawings and product images are available via the product listing and can be consulted before installation to confirm fitment.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
