7/16" T-Slot Insert Single, 3/8-16" Thread - Vertex

Take advantage of a compact fastener that combines precise dimensional compatibility with straightforward installation: the T-nut provides secure clamping in 7/16" T-slots, with a standard 3/8-16" thread for reliable fixture mounting—order directly via Metav Werkzeuge or consult our specialists for application advice.

Vertex 3413I T-nut — compatible with 7/16" T-slots, 3/8-16" thread

The Vertex 3413I T-nut is a single-piece fastening insert designed to secure clamps and fixtures in 7/16" T-slots on machine tables and workbenches.

• Compatible with 7/16" T-slots
• 3/8-16" internal thread
• Lightweight at 0.023 kg
• Single-piece design for easy placement

Secure hold for clamping and fixturing

A purpose-made fastening component, the 3413I T-nut delivers consistent clamping performance by matching common table grooves. Its main advantage is mechanical compatibility: the 7/16" T-slot fit ensures the insert sits flush and resists rotation under load, while the 3/8-16" thread accepts widely used clamping bolts. For workshop planners and maintenance teams, this means fewer non‑compatible parts in stock and shorter setup times, improving throughput in repetitive machining or assembly tasks.

Predictable fit reduces setup time

Supplied in a compact form with dimensions 11/16 x 7/8 x 1/2", the component offers predictable geometry for fixture designers and machinists. The recorded mass of 0.023 kg makes handling and inventory storage straightforward, and the standardised thread size simplifies parts sourcing. Explaining the term: a T-nut is a sliding insert that engages the T-shaped groove on a machine table, allowing bolts to be tightened from above—this standardisation reduces trial‑and‑error during jigs and fixture assembly and helps maintain consistent clamping forces.

Simple installation and robust positioning

The single-piece construction supports rapid placement into the slot and stable seating during bolt tensioning, which benefits repetitive operations and modular fixturing. With no complex assembly required, the insert is ideal where fast changeovers are needed. The design also minimises the risk of misalignment when tightening clamping hardware, contributing to stable workholding and fewer interruptions on the shop floor.

Contact Metav Werkzeuge in Emmerich for tailored advice on integrating Vertex fastening components into existing fixturing systems and to request product availability or delivery options

Technical data

• Article number: 3413I
• GTIN: 4061905093623
• EClass: 21029107

Facts

• Dimensions: 11/16 x 7/8 x 1/2"
• Weight: 0.023 kg
• T-slot compatibility: 7/16"
• Thread: 3/8-16"

Special features

• Single-piece (einzelnd) design
• Brand: Vertex

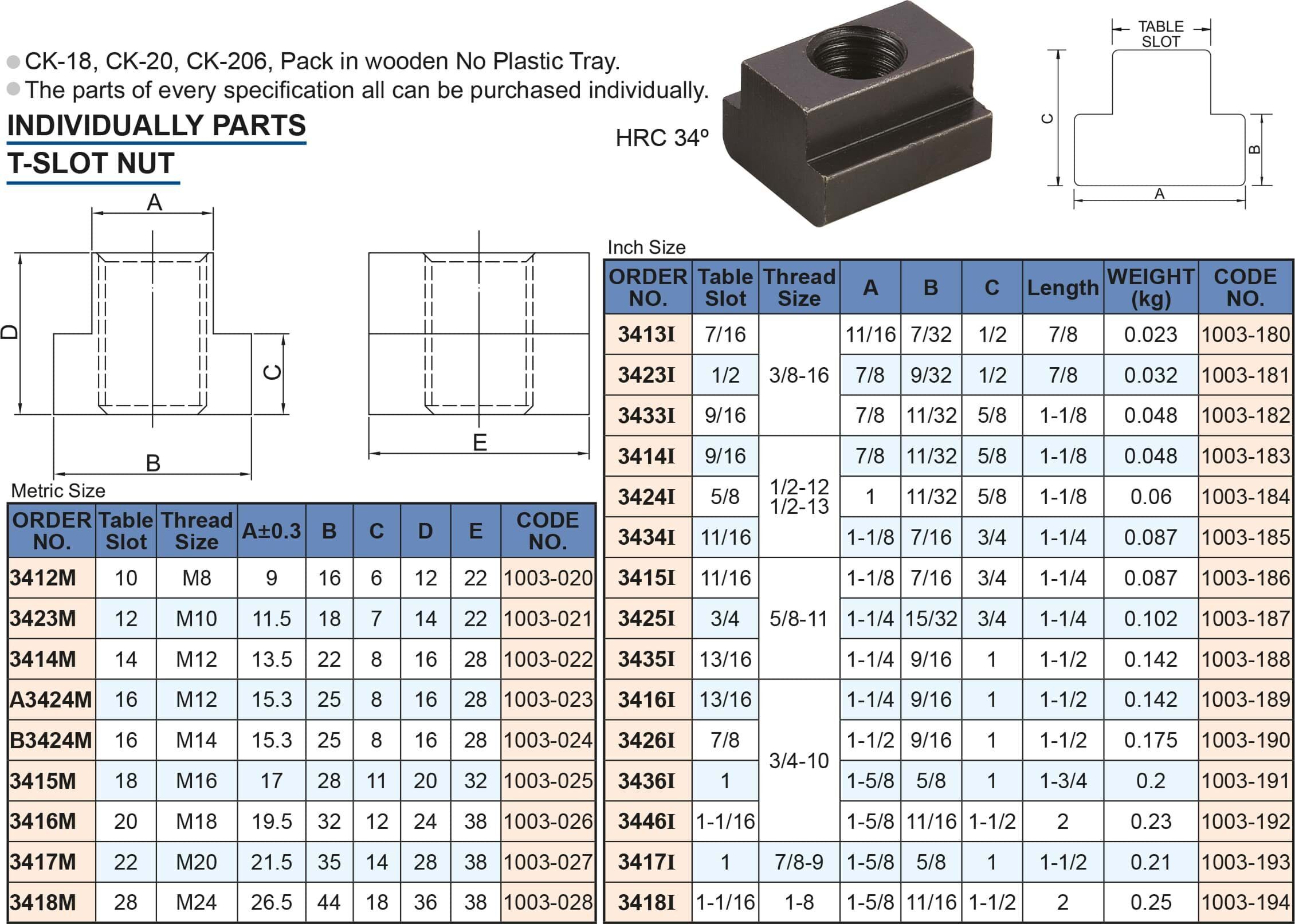

• Images and technical drawing available

FAQ

What slot size is this T-nut designed for?
The insert is made for 7/16" T-slots, ensuring compatibility with standard table grooves used in many fixturing systems; the Vertex 3413I matches that slot size for reliable seating.

Which bolt thread does the T-nut accept?
The component features a 3/8-16" internal thread, suitable for common clamping bolts and compatible with typical workshop hardware.

Are the exact dimensions available for integration into a fixture design?
Yes; the dimensions are 11/16 x 7/8 x 1/2" and can be used directly in CAD layouts to check clearance and seating for fixtures using the Vertex 3413I.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
