22 mm T-Slot Nut Single M20 Thread - Vertex

Benefit from reliable compatibility with common 22 mm T-slots and a robust M20 thread for secure clamping and reduced set-up time; order genuine Vertex parts via Metav Werkzeuge or consult our experts for integration advice.

3417M — T-slot nut, 22 mm T-slot, M20 thread (Vertex)

The 3417M is a single T-slot nut designed for secure fastening in machine tables and fixtures, compatible with standard 22 mm T-slots for general workshop and industrial clamping applications.

• Compatible with 22 mm T-slots
• M20 threaded for heavy-duty fixings
• Single-piece design for easy installation

Secure clamping where it matters

The T-slot nut provides a straightforward solution for anchoring fixtures and accessories to machine tables. With a 22 mm T-slot compatibility and an M20 thread, the component delivers a stable connection between the table and the fastening bolt, reducing lateral movement under load. This solidity supports consistent positioning of jigs and stops, which in turn helps to maintain repeatable machining results and minimise downtime caused by retightening. The proven geometry of the fastener simplifies selection for standardised systems and supports efficient workshop workflows.

Streamlined workflow and inventory benefits

A single-piece design reduces assembly steps and simplifies stock keeping for production and maintenance departments. Instead of multiple complex components, the compact fastener serves as a readily available fixing element for routine set-ups. For teams managing several machines or fixtures, this reduces the variety of spare parts required and speeds up clamping changes during tool or job swaps. The item’s clear SKU reference and standard interface make ordering and replacement straightforward, supporting uninterrupted operation on the shop floor.

Integration, compatibility and practical considerations

The fastener uses an M20 thread, compatible with standard M20 bolts and nuts, enabling direct pairing with widely available fixings. When integrating the part into an assembly, ensure proper thread engagement and appropriate tightening torque as specified for the mating bolt to achieve the intended clamping force; consult machine or fixture guidelines where necessary. The GTIN and SKU provided with the component allow exact identification for procurement and asset tracking, reducing the risk of mismatched parts and supporting traceability in industrial environments.

Secure workshop compatibility with genuine Vertex components — request the 3417M T-slot nut via Metav Werkzeuge or contact our consultants for specification checks and stock information

Technical Data

• SKU: 3417M
• GTIN: 4061905090219
• Manufacturer: Vertex

Facts

• Dimensions: 21.7x38x14 mm
• T-slot compatibility: 22 mm
• Thread: M20
• eClass: 21029107

Special features

• Designation: T-nut
• Version: single-piece
• Brand: Vertex

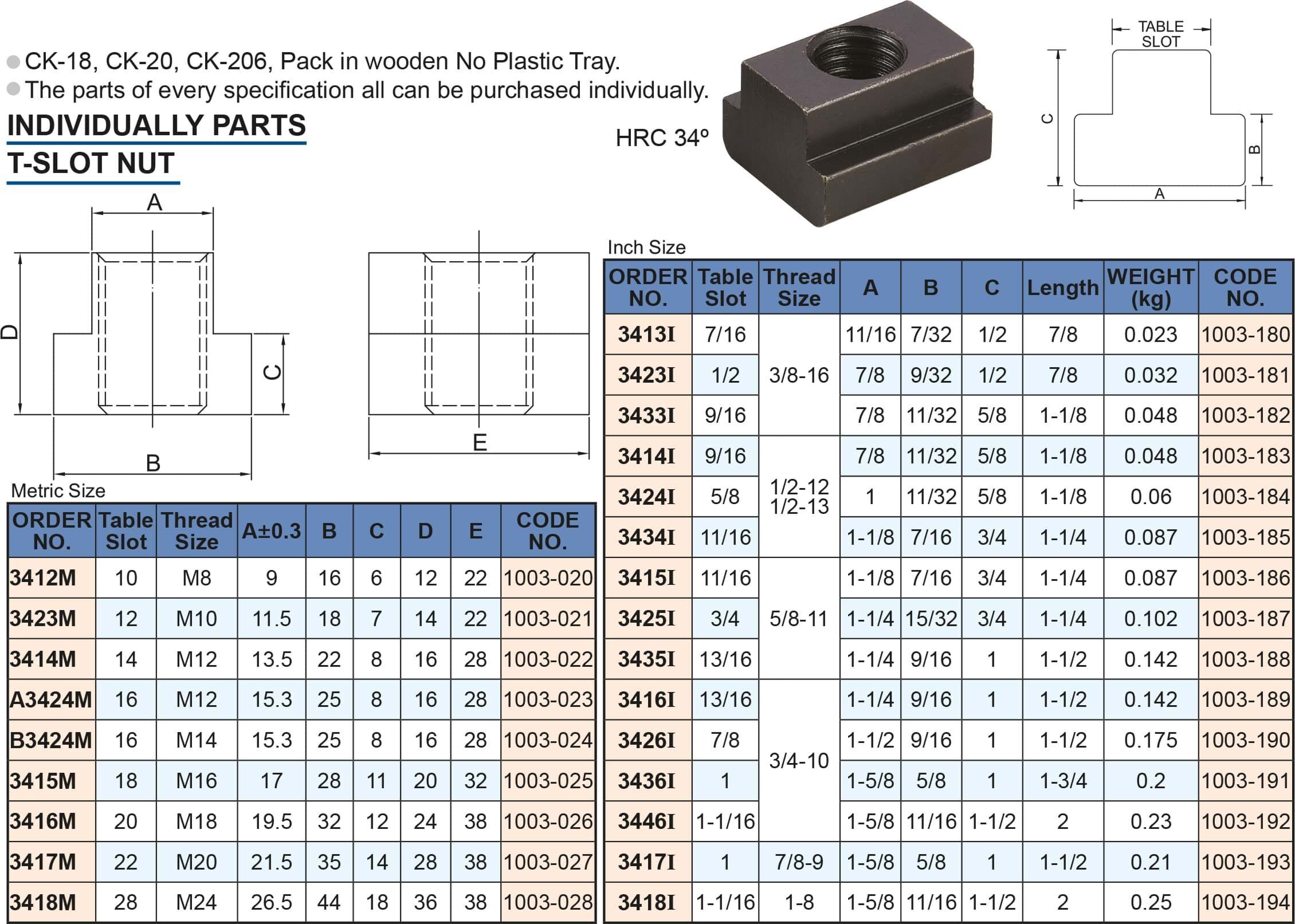

• Available assets: technical drawing and detail images

FAQ

What is the intended use of this T-slot nut?
The 3417M T-slot nut is intended as a fastening element for machine tables and fixtures that use a 22 mm T-slot, providing a threaded anchor point for M20 bolts.

Is the 3417M compatible with standard M20 bolts?
Yes, the 3417M uses an M20 thread and is compatible with standard M20 bolts and nuts when correct thread engagement is observed.

How does the single-piece design benefit workshop operations?
A single-piece configuration reduces assembly complexity and spare parts variety, simplifying logistics and enabling faster fixture set-up during production changes.

Can the 3417M be used across different machine tables?
The component is compatible where a 22 mm T-slot is present; verify slot dimensions and clearances before installation to ensure proper fit on the specific table.

How can the part be identified for ordering or inventory?
Use the SKU 3417M and the GTIN 4061905090219 to ensure exact identification when procuring or logging the item.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
