28mm T-Slot Nut Single M24 Threaded, T-Nut for Clamping - Vertex

Take advantage of the combination of secure clamping, compact dimensions and simple stocking to streamline workshop set-ups; order the 3418M T-slot nut directly via Metav Werkzeuge or ask our consultants if needed.

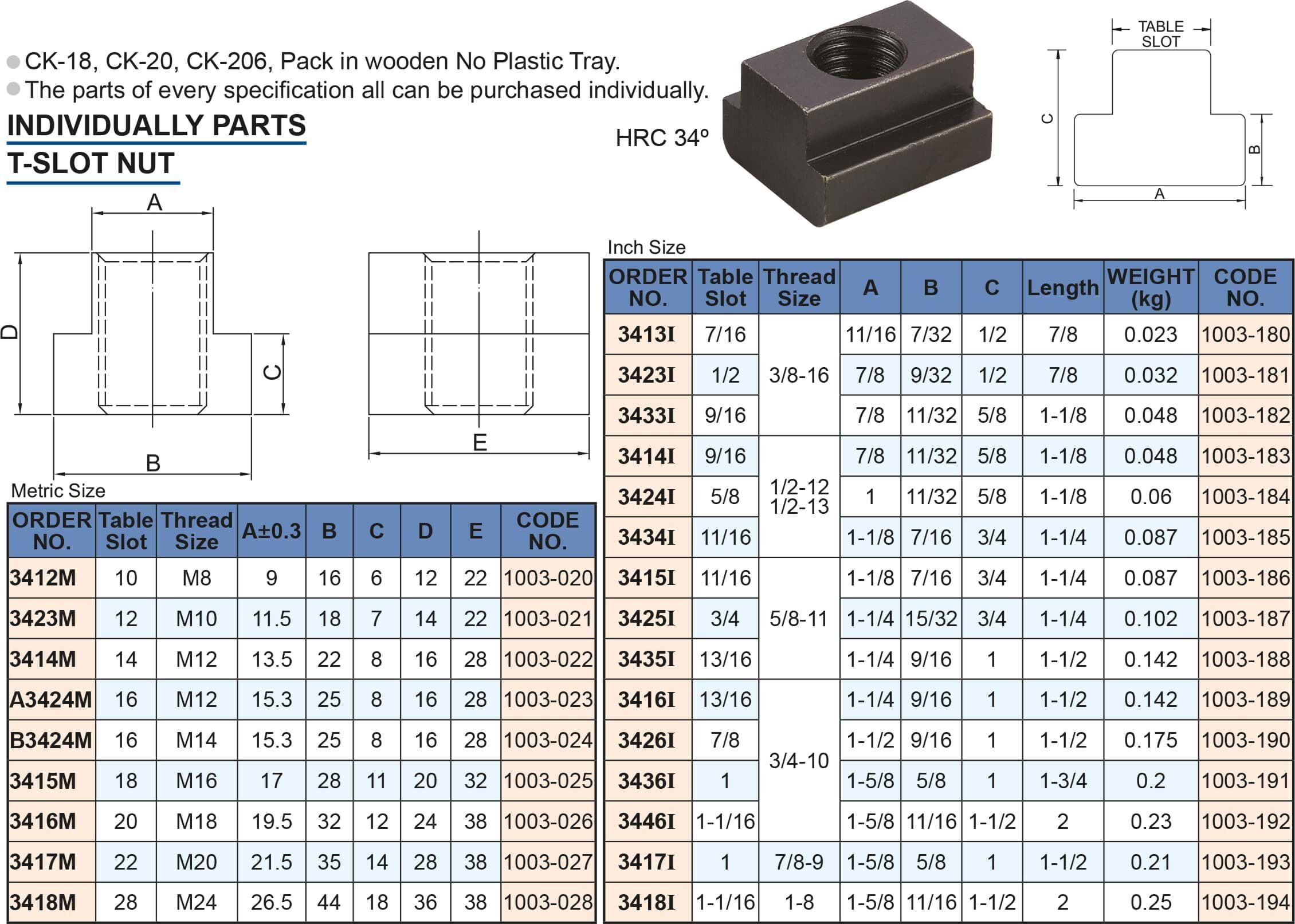

3418M T-slot nut by Vertex — M24 thread for 28 mm T-slots

A 3418M T-slot nut engineered as a compact clamping element for machine tables and modular fixturing in workshops and production environments.

• M24 metric internal thread for standard bolts
• Compatible with 28 mm T-slots on machine tables
• Compact dimensions 27.7×38×18 mm for tight spaces
• Supplied individually for flexible inventory management

Reliable clamping in confined spaces

The 3418M is a compact T-slot nut that brings reliable clamping where space is limited. With an M24 internal thread and a form designed for 28 mm T-slots, the component delivers stable axial load transfer while occupying minimal table area. Specified 27.7×38×18 mm overall dimensions make it suitable for dense fixture arrays and multi-point clamping, helping to avoid interference with nearby tooling. The design supports consistent bolt engagement and repeatable tightening torque, which contributes to predictable clamping forces and reduced rework.

Easier stock handling and faster set-up times

Supplied individually, this fastening element simplifies stock control and reduces tied-up capital compared with bulk kits. The standard metric M24 interface permits the use of widely available bolts and clamping elements, lowering the need for special fasteners and enabling rapid replacement during maintenance. By choosing a single-piece supply, workshops can optimise inventory levels for specific jobs and reduce downtime between production runs, improving overall equipment utilisation and operational throughput.

Clear function and straightforward application

A T-slot nut is a simple, effective interface between table T-slots and clamping hardware: it translates bolt torque into securing force against the workpiece or fixture. The 3418M’s geometry ensures proper alignment in a 28 mm slot and reliable engagement under shear and tensile loads typical of machining and assembly processes. Manufactured by a recognised toolmaker, the part supports standard fixturing strategies and can be integrated into existing clamping systems with minimal adjustment, offering a pragmatic solution for repeatable setups.

Contact Metav Werkzeuge in Emmerich for stock availability, tailored advice on integration with existing clamping systems, and guidance on selecting the correct fasteners for Vertex components — email info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: 3418M
• GTIN: 4061905090042
• Brand: Vertex

Facts

• Dimensions: 27.7×38×18 mm
• Designed for T-slot width: 28 mm
• Thread: M24

Special features

• Supply format: single piece
• Product type: T-slot nut for machine tables
• Suitable for use in modular fixturing

FAQ

What thread size does the nut accept?
The 3418M T-slot nut accepts an M24 metric internal thread for standard clamping bolts.

Which T-slot width is the nut designed for?
This fastening element is designed specifically for a 28 mm T-slot on machine tables and fixture plates.

Is the nut supplied in sets or individually?
The component is supplied individually to allow flexible inventory control and targeted replenishment.

Can the nut be used with standard clamping bolts?
Yes, the M24 internal thread is compatible with commonly available metric bolts used in workshop clamping systems.

Who manufactures this T-slot nut?
The nut is manufactured by Vertex and identified in inventory by the article number 3418M.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
