12 mm T-Slot Nut Single With M10 Thread - Vertex

Take advantage of a compact, precisely fitted solution that matches 12 mm T-slots and secures with an M10 thread for consistent fixturing. The single-piece design reduces setup variability and supports a smooth production flow; order this T-slot insert directly via Metav Werkzeuge or consult our specialists for application advice.

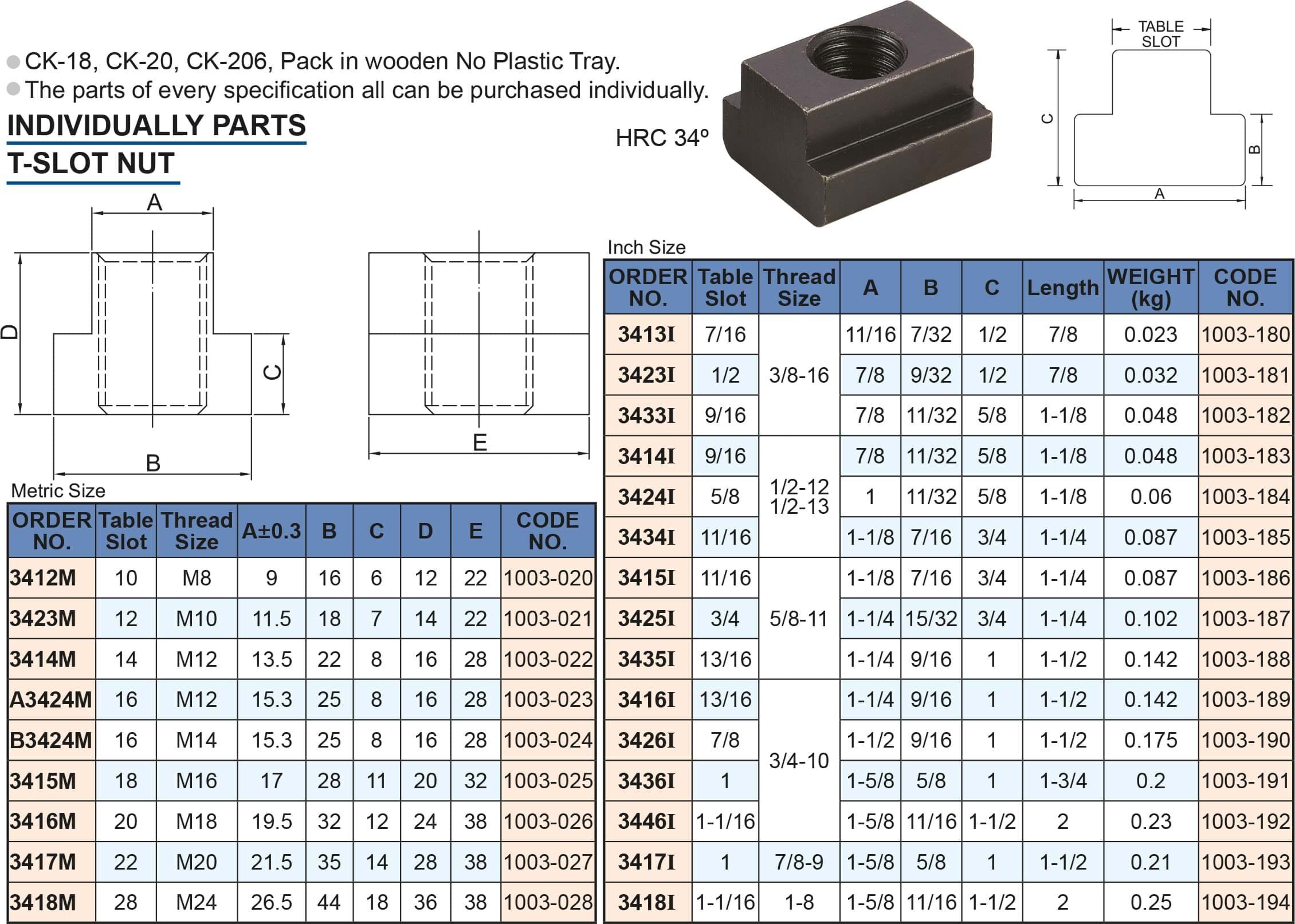

T-slot insert 3423M by Vertex — 12 mm T-slot, M10 thread

T-slot insert 3423M is a compact fixing element for machine tables and fixtures, designed to fit 12 mm T-slots and to be secured with an M10 threaded fastening

• Fits 12 mm T-slots
• M10 threaded fastening
• Single-piece construction
• Compact dimensions 11.7 x 22 x 7 mm

Faster, more reliable set-ups through precise fit

A precisely dimensioned 12 mm T-slot interface combined with an M10 thread ensures the insert locates and clamps without guesswork, shortening set-up times and reducing rework. The compact footprint (11.7 x 22 x 7 mm) provides a snug engagement in standard T-slots so that alignment is preserved between cycles. For engineering teams pursuing repeatability, the result is consistent part positioning and fewer interruptions in the production chain.

Secure clamping that improves process stability

The single-piece construction removes joints and mating tolerances that can introduce play, delivering a secure anchorage for fixtures and stop elements. Using an M10 threaded fixing gives dependable clamping force while allowing straightforward replacement or repositioning when fixture layouts change. These attributes translate into measurable operational benefits: reduced downtime during changeovers and improved component tolerances through stable fixturing.

Compact design for versatile fixture layouts

Small overall dimensions and a low profile make this insert suitable for dense fixture arrangements and retrofits on existing machine tables. The compact form allows tighter packing of clamping points without sacrificing stability, enabling designers to create more flexible and space-efficient fixturing solutions. Sourcing from an established brand contributes to consistent part-to-part quality and predictable behaviour in daily shop-floor use.

Contact Metav Werkzeuge for tailored advice on Vertex T-slot inserts and to secure supply from our Emmerich quality hub

Technical data

• SKU: 3423M
• GTIN: 4061905086793
• ECLASS: 21029107

Core specifications

• Dimensions: 11.7 x 22 x 7 mm
• T-slot compatibility: 12 mm
• Thread: M10

Design & special features

• Single-piece design
• Intended for T-slot fixturing
• Brand: Vertex

FAQ

Which T-slot size does the insert suit? The insert is specified for 12 mm T-slots; the 3423M by Vertex matches standard 12 mm slot systems.

What mounting thread is used for fastening? Mounting is via an M10 thread, providing a secure and widely compatible fastening option for fixtures.

Is the material of the insert stated? Material is not specified in the provided product data for the 3423M T-slot insert; consult Vertex documentation for material and mechanical properties.

Can the insert be used for dense fixture arrangements? Yes, the compact dimensions (11.7 x 22 x 7 mm) and low profile make the insert suitable for tight fixture layouts and retrofits.

How does the single-piece construction benefit fixturing? Single-piece construction reduces tolerance stack-up and potential play, yielding more stable clamping and better repeatability in production setups.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
