19x8mm Flange With M8x1.25 Thread, 13g - Vertex
€1.90
Product information "19x8mm Flange With M8x1.25 Thread, 13g - Vertex"
Take advantage of a compact component that combines a standard M8x1.25 metric thread with a minimal footprint of 19×8 mm for secure fixtures in confined assemblies; the low weight (0.013 kg) minimises added mass while simplifying handling and logistics. Order the flange directly via Metav Werkzeuge or ask our consultants if needed.
Flange 4512 – compact metric-thread fixing element, M8x1.25, 19×8 mm
The Flange 4512 is a small, precision component intended for mechanical assemblies and tooling where a secure metric-thread connection and minimal space usage are required.
- M8x1.25 thread for standard fittings
- Compact 19×8 mm footprint
- Lightweight at 13 g
Precision fit for confined assemblies
The flange delivers a reliable mechanical interface through its M8x1.25 metric thread and compact 19×8 mm dimensions, making it suitable for tight installation spaces. The defined thread pitch ensures consistent axial engagement with standard M8 fastenings, reducing play and enabling repeatable clamping forces. With a mass of just 0.013 kg (13 g), the part contributes negligible inertia to moving sub-assemblies, which is advantageous in precision mechanisms and low-mass fixtures. The compact geometry also facilitates access in multi-component layouts and supports streamlined assembly sequences for production lines.
Standard metric compatibility that simplifies procurement
Using a familiar thread standard means the flange integrates seamlessly with off-the-shelf fasteners and mating parts, lowering the need for custom items and simplifying stock management. The M8x1.25 designation denotes an 8 mm nominal diameter with a 1.25 mm pitch, a combination commonly used in machinery and tooling. This compatibility translates into shorter setup times and predictable mechanical behaviour under load. Where interchangeability and maintenance speed are priorities, such standardisation improves operational uptime and reduces procurement complexity across workshops and industrial suppliers.
Practical benefits for logistics and workshop routines
The small dimensions and low weight support economical storage and transport: more items fit per container and handling is easier on the shop floor. The compact design also aids in modular fixture concepts, allowing designers to place fixing elements close to functional interfaces without compromising clearance. Sourced from a recognised manufacturer, the component aligns with standard inventory hierarchies and can be ordered as a repeatable catalogue item, helping purchasing teams maintain supply continuity for routine replacements and serial production.
For reliable supply of Vertex components such as this flange and tailored ordering advice, contact Metav Werkzeuge in Emmerich for stock information and allocation; email info@metav-werkzeuge.com or call +49 2822 7131930

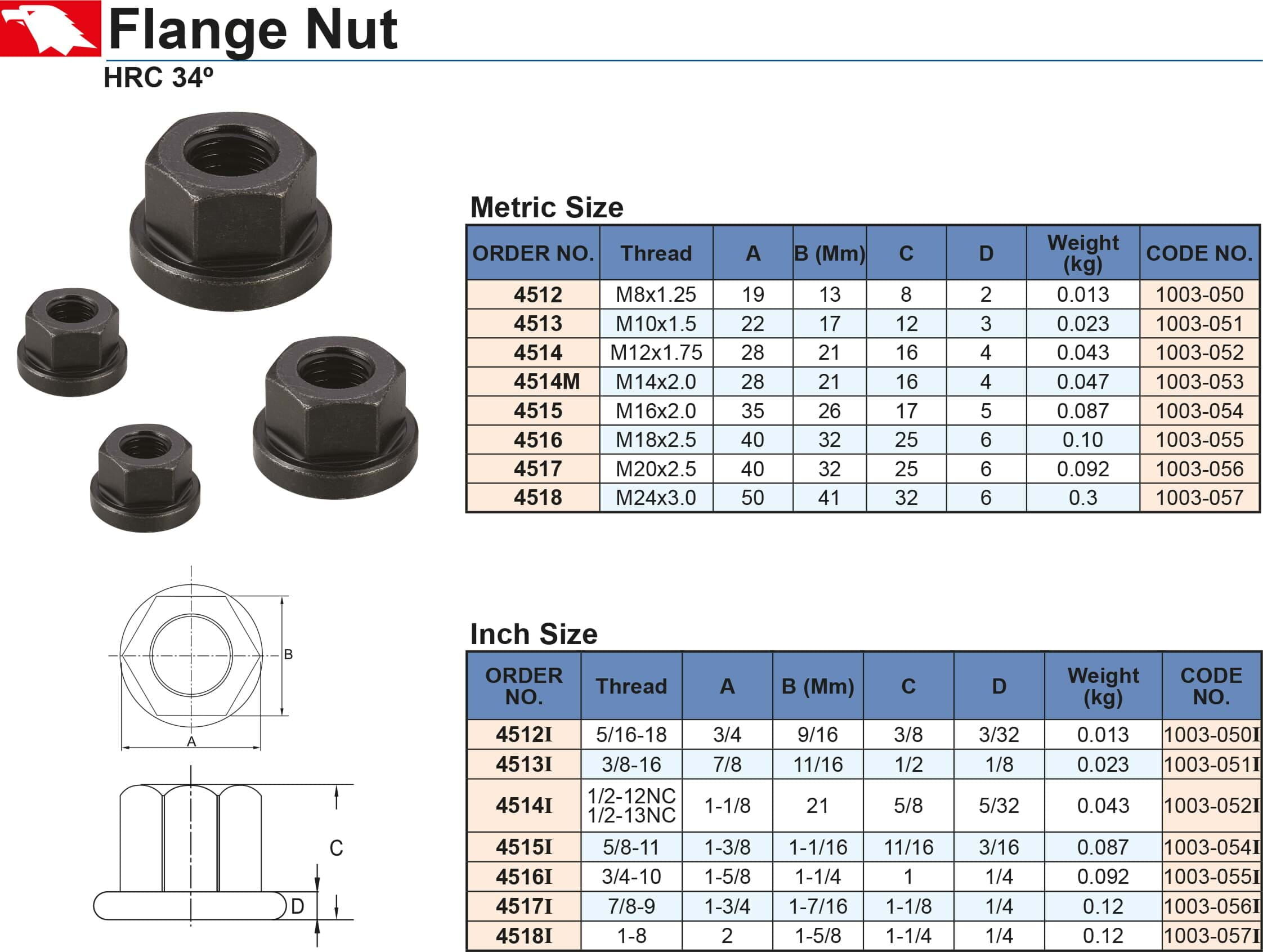

Technical data
- Article number: 4512
- GTIN: 4061905083396
- Manufacturer: Vertex

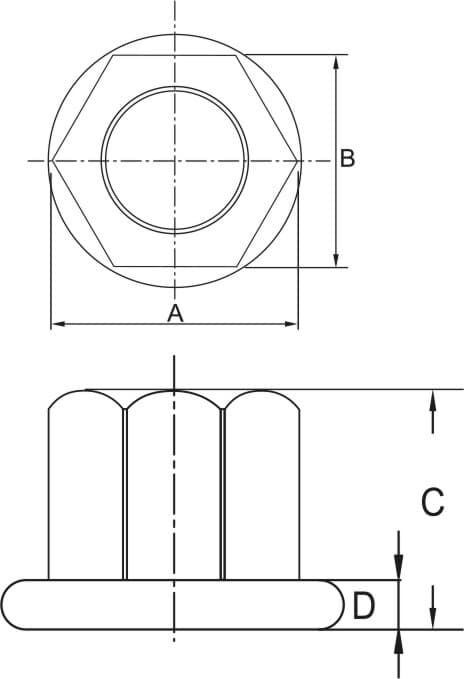

Key measurements
- Dimensions: 19×8 mm
- Thread: M8x1.25 mm
- Weight: 0.013 kg
Special features
- eClass: 37029205
- Gallery files included: 3 images
FAQ
What thread standard does this flange use?
The flange uses a metric M8x1.25 thread, compatible with standard M8 fasteners and mating components suitable for that pitch.
Is the flange suitable for confined installation spaces?
Yes, the compact 19×8 mm footprint and low weight make the component suitable for installations with limited clearance.
How much does the component weigh?
The part weighs 0.013 kg (approximately 13 g), which minimises added mass in assemblies.
Can this flange be sourced as a catalogue item?
The part is supplied by Vertex and listed under article number 4512, enabling repeatable procurement and stock replenishment.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
