28x17mm Flange M14x2mm Thread, 47g - Vertex

Compact, space-saving design combined with a precision M14x2 mm thread and a low mass of 0.047 kg makes this flange a reliable choice for secure machine and accessory mounting. Order the flange directly via Metav Werkzeuge or ask our consultants if needed.

Flange 4514M – M14x2 mm thread, 28×17 mm, Vertex

A Flange 4514M engineered for secure mounting and compact integration in workshop and tooling setups.

• M14x2 mm precision thread
• Compact 28×17 mm profile
• Lightweight 0.047 kg construction
• Vertex original component

Secure mounting through precision threading

The M14x2 mm thread provides a standardised connection that supports reliable fixation and repeatable assembly. For applications where consistent clamping and low play matter, this flange delivers precision that reduces rework and stabilises tool interfaces. The threaded interface is compatible with common attachment systems used in machining fixtures, ensuring straightforward replacement and minimal adaptation effort.

Small form factor that simplifies integration

With a compact 28×17 mm footprint and a mass of 0.047 kg, the component reduces the added inertia on rotating or moving assemblies. The reduced mass supports easier handling during assembly and can contribute to improved dynamic behaviour in fixtures and jigs. The compact profile also helps where space is constrained, allowing tighter stacking of accessories or closer positioning of sensor and tool mounts without compromising stability.

Practical compatibility and ordering readiness

Marked as SKU 4514M and carrying GTIN 4061905093647, the flange is documented for easy procurement and traceability. As a Vertex component, it fits standard workshop workflows and inventory systems, making specification and replenishment straightforward. The part functions as a small mounting flange for machine attachments and accessories, helping to maintain consistent interfaces across tool sets while simplifying inventory management.

For procurement and technical advice on Vertex mounting components such as this flange, contact Metav Werkzeuge in Emmerich via info@metav-werkzeuge.com or call +49 2822 7131930 for specification checks and order handling

Technical data

• SKU: 4514M
• GTIN: 4061905093647
• Manufacturer: Vertex
• ECLASS: 37029205

Facts

• Weight: 0.047 kg
• Dimensions: 28×17 mm
• Thread: M14x2 mm

Special features

• Precision thread M14x2 mm
• Compact 28×17 mm profile
• Lightweight 0.047 kg construction
• Vertex original component

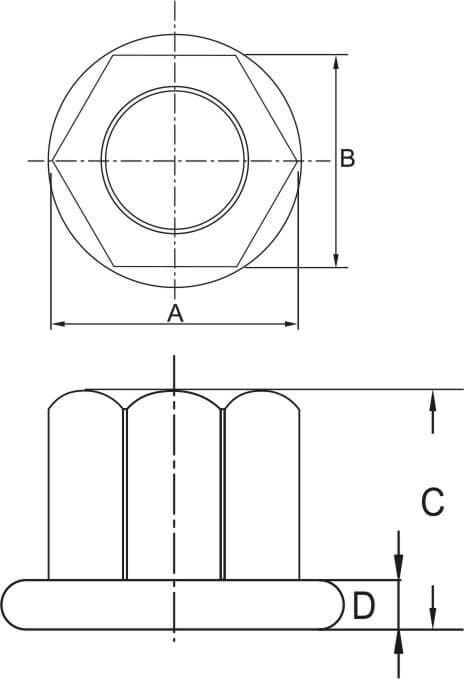

• Technical drawings and images available

FAQ

What thread size does the flange use? The flange uses an M14x2 mm thread, which is specified on the product label and in the technical drawing for Flange 4514M.

What are the exact dimensions of this component? Dimensions are 28×17 mm as stated in the product data; these compact measurements support tight integration into fixtures.

Is the flange traceable by standard identifiers? Yes, the flange is traceable via GTIN 4061905093647 and SKU 4514M for inventory and procurement processes.

Can this Vertex flange be used in rotating assemblies? The flange’s low mass (0.047 kg) and precision thread are suitable for many accessory-mounting roles in assemblies where reduced inertia is beneficial

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
