VCF-500R Bevelling and Deburring Machine — 3,500 r.p.m., 1 HP (Vertex)

A robust VCF-500R bevelling and deburring machine engineered for efficient processing of R double-angle components in workshop and light-production settings

• 3,500 r.p.m spindle speed for efficient bevelling
• Compact footprint 500×400×320 mm for tight shops
• Flexible supply 1 HP, 110–220 V or 220–400 V options
• Designed for R double-angle deburring and chamfering

Consistent edge quality for repeatable production

The machine delivers precise bevelling and deburring by maintaining a stable spindle speed at 3,500 r.p.m., which reduces variation between workpieces and shortens secondary finishing operations. For fabricators and small production lines, this translates into fewer rework cycles and more predictable output. The built-in capacity to process R double-angle profiles ensures consistent chamfer geometry, supporting quality control and repeatability across batches.

Space-saving design that simplifies workflow

With a compact footprint of 500 × 400 × 320 mm and a net weight of 28 kg, the unit integrates into constrained workbenches or mobile setups without extensive rearrangement. The reduced floor space requirement supports leaner workshop layouts and easier access to adjacent machinery. The relatively low mass allows relocation within the shop when production needs change, helping to optimise material flow and minimise handling time.

Electrical flexibility and robust drive for varied installations

Equipped with a 1 HP standard drive and configurable supply options — 110–220 V single-phase or 220–400 V three-phase at 50/60 Hz — the machine adapts to differing electrical infrastructures commonly found in trade and industrial environments. This compatibility reduces installation complexity and supports deployment at multiple sites without major electrical modifications. The reliable drive assembly is designed for continuous operation, contributing to steady cycle times.

Practical operation that reduces processing steps

The system focuses on practicality: its task-specific construction for chamfering and deburring of R-profile edges cuts processing steps by combining two functions in one compact unit. Operators benefit from straightforward setup and predictable results, while production planners gain from simpler process chains and lower downstream finishing requirements. The device’s specification suits workshops seeking measurable efficiency gains with limited floor space.

Contact Metav Werkzeuge today for an individual specification and fast delivery from Emmerich — our consultants assist with compatibility checks and order processing for Vertex machines

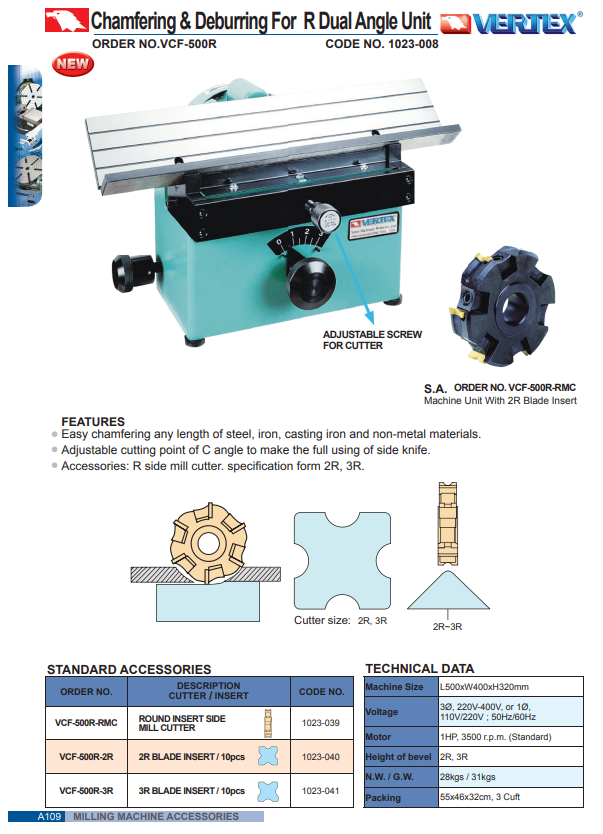

Technical data

• SKU: VCF-500R
• GTIN: 4061905083136
• ECLASS: 36639025
• Type: Bevelling and deburring machine for R double-angle

Core specifications

• Dimensions: 500 × 400 × 320 mm
• Spindle speed: 3,500 r.p.m.
• Net weight: 28 kg
• Power: 1 HP (standard)
• Supply voltage: 110–220 V (single-phase) / 220–400 V (three-phase)
• Frequency: 50/60 Hz

Features & suitability

• Brand: Vertex
• Application: Chamfering and deburring of R double-angle parts
• Ideal for workshops and light-production environments
• Compact, mobile-capable design

FAQ

What materials can be processed with this bevelling and deburring machine?
The VCF-500R by Vertex is designed for general metal deburring and chamfering tasks; suitability depends on the chosen tooling and process parameters for specific alloys.

Is the machine compatible with single-phase power supplies?
Yes, the unit supports single-phase operation at 110–220 V as well as three-phase 220–400 V, allowing flexible installation in different electrical environments.

How large is the machine and can it fit on a standard workbench?
The compact footprint of 500 × 400 × 320 mm and a weight of 28 kg mean the device fits comfortably on standard benches and in constrained workshop layouts.

What spindle speed does the machine use for bevelling operations?
The machine operates at a spindle speed of 3,500 r.p.m., providing steady performance for consistent chamfering and deburring results.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
