25x30x19mm Step Block Precision Positioning Block - Vertex
€15.36
Product information "25x30x19mm Step Block Precision Positioning Block - Vertex"
Compact, precision-focused components that support consistent set-up and reliable step clamping are combined with easily verifiable specifications. With a compact footprint of 25 x 30 x 19 mm and repeatable positioning, this element streamlines fixture changes and reduces set-up time. Order directly via Metav Werkzeuge or consult the in-house specialists for tailored procurement guidance.
Step Block — Compact, precision clamping element (Vertex)
A Step Block for accurate step-height alignment in workholding and fixture applications, designed to simplify repeatable positioning in machining setups
- Compact dimensions 25 x 30 x 19 mm
- Precise step alignment for workholding
- Compatible with standard fixture setups
Consistent clamping accuracy for repeatable setups
A compact step element delivers measurable benefits for production workflows by improving repeatability during fixture changes. The small footprint and defined geometry ensure that step alignment is consistent from one set-up to the next, reducing the need for fine adjustments. For shops focused on cycle-time reduction and process stability, a well-specified block supports faster changeovers and less scrap, translating into tangible efficiency gains on the shop floor.
Space-saving design that speeds fixture changes
A reduced component size contributes directly to a more efficient machine table layout, freeing capacity for additional clamps or workpieces. The described 25 x 30 x 19 mm footprint is beneficial where space is constrained or where multiple step heights must be staged close together. By enabling compact stacking and predictable placement, the element helps cut overall set-up time and keeps toolpaths clear, supporting higher throughput without compromising positional control.
Traceability, documentation and practical deployment
Clear identification and accessible imagery simplify procurement and inspection tasks. The product is supplied with reference images and a technical drawing, facilitating verification against CAD layouts and control plans. Where documentation is required for quality records, the available data points such as GTIN and SKU aid traceability. For integration into existing fixturing systems, planners will appreciate having concise, verifiable specifications to compare with design tolerances.
Contact Metav Werkzeuge in Emmerich for specialist advice on the Vertex Step Block (SKU 5114) and to arrange supply tailored to specific fixture requirements via info@metav-werkzeuge.com
Technical data
- Article number: 5114
- SKU: 5114
- GTIN: 4061905083501
- EClass: 21170107
- Name: Step Block
- Brand: Vertex
Numbers / Core technical data
- Dimensions: 25 x 30 x 19 mm
Designs / Special features
- Images and technical drawing available (see product gallery)
- Compact footprint for dense fixture layouts
FAQ
What are the exact dimensions of the step block? The Step Block (Vertex, SKU 5114) measures 25 x 30 x 19 mm as stated in the product specification.
Is material information provided for this Step Block? Material data is not specified in the available product fields for the Step Block (Vertex, SKU 5114); refer to the product gallery and technical drawing for visual assessment or check the product page for further details.
Can this element be used in standard clamping fixtures? Yes, the Step Block (Vertex, SKU 5114) is described for step-height alignment and is compatible with typical fixture setups where compact positioning elements are required.

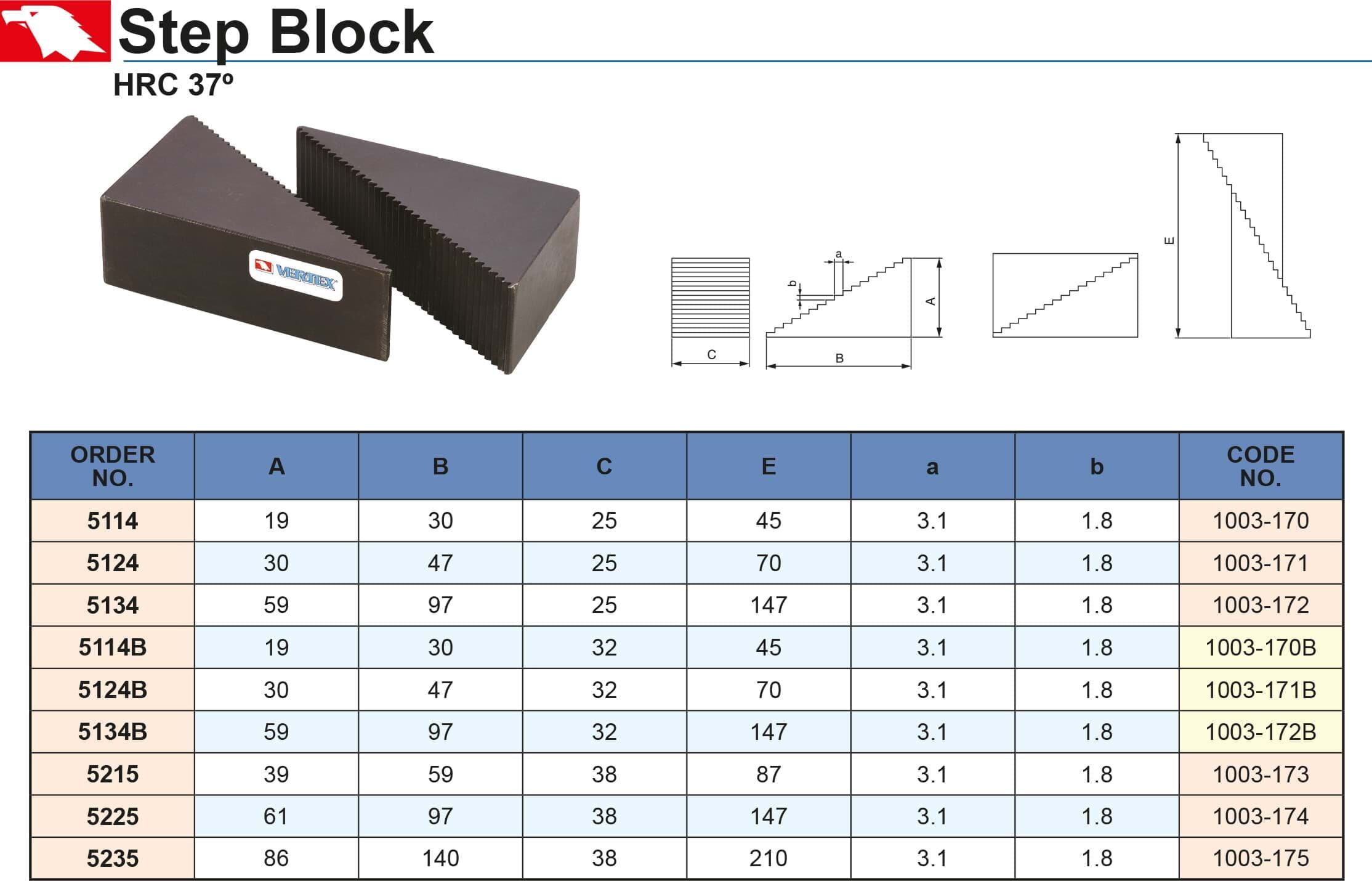

Are there images or technical drawings to assist integration? Yes, the product includes a main image and a technical drawing in the gallery for the Step Block (Vertex, SKU 5114) to support CAD verification and assembly planning.
How is the product identified for ordering and traceability? Identification is provided via SKU 5114 and GTIN 4061905083501 for the Vertex Step Block, enabling straightforward procurement and traceability.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
