25x47x30mm Step Block Steel Clamping Step With Serrated Face - Vertex

Take advantage of a compact, precision-focused clamping solution that improves setup repeatability and saves space on the tooling bench. The combination of robust step geometry and proven manufacturing quality supports consistent part location, while straightforward integration into modular clamping systems minimises downtime. Order the Step Block directly via Metav Werkzeuge or ask our consultants for application advice.

Step Block — compact precision clamping block with defined step geometry (Vertex)

Step Block is a compact clamping component intended for precise location and repeatable setups in workshop and machine-tool environments.

• Compact design 25 x 47 x 30 mm
• Precision step for reliable positioning
• Easy integration into modular clamping systems
• Supplied by Vertex, industrial quality

Minimise setup time with compact, repeatable positioning

The compact geometry of this clamping element provides a clearly defined locating surface that reduces trial-and-error during fixture assembly. With dimensions of 25 x 47 x 30 mm (L x W x H) the component suits confined workholding spaces while maintaining precision and stability. Where repeatable part location is required, the well‑defined step profile supports fast alignment and fewer adjustments, which improves machine utilisation and throughput. This benefit is particularly relevant for production-focused workshops seeking measurable gains in setup efficiency.

Reliable manufacturing for consistent clamping performance

Manufactured under Vertex quality standards, this step clamping component offers consistent form and surface integrity that contribute to predictable behaviour under load. The focus on dimensional accuracy enhances repeatability across multiple fixtures and batches, aiding process control and reducing scrap rates. Clear technical documentation and available drawings support planning and CAD verification prior to installation, making the component a practical element in standardised workholding strategies and jigs.

Practical integration and measurable operational advantages

Designed for compatibility with modular fixture arrangements, the step block simplifies the construction of stable clamping assemblies without complex machining. Its defined step surface functions as a positive location point, improving fixturing reliability when combined with clamps, pins or blocks. The measurable benefit is fewer reworks and quicker changeovers — a rational advantage for workshops aiming to increase productivity while keeping tooling complexity low. Images and technical drawings are available to confirm fitment and orientation during the design phase.

Contact Metav Werkzeuge for tailored advice on integrating the Vertex Step Block into existing fixtures or to request CAD-ready drawings and procurement support from Metav Werkzeuge

Technical Data

• SKU: 5124
• GTIN: 4061905089411
• ECLASS: 21170107
• Dimensions: 25 x 47 x 30 mm (L x W x H)

Facts

• Article number: 5124
• GTIN: 4061905089411
• ECLASS code: 21170107

Special features

• Step geometry for positive locating
• Compact footprint for confined setups

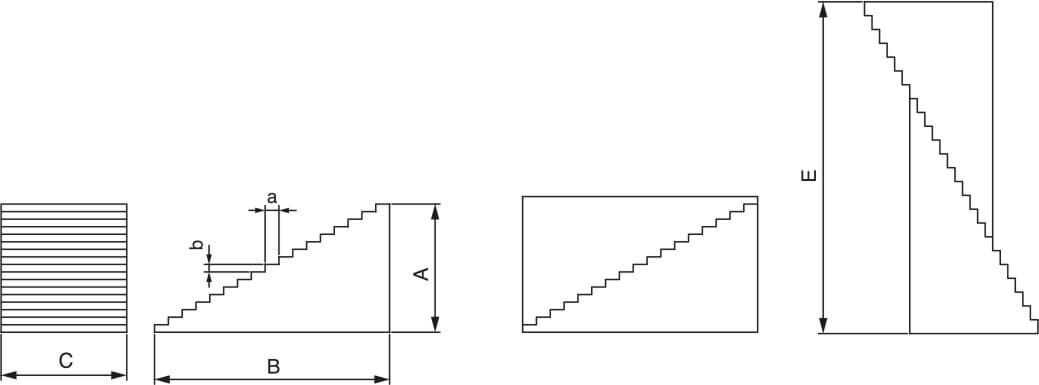

• Supplied with technical drawing and detail imagery
• Brand: Vertex

FAQ

What is the primary application of this component?
The Step Block is used as a locating and clamping element in workshop and machine-tool fixtures where defined step positioning improves setup repeatability.

Which dimensions define the block?
Dimensions are 25 x 47 x 30 mm (L x W x H) for the Vertex Step Block, suitable for compact fixturing arrangements.

Can the block be integrated into modular clamping systems?
Yes, the Step Block is designed to be compatible with modular fixture setups and works effectively alongside common clamps and locating pins.

How can installation and orientation be verified before procurement?
Technical drawings and detail images for the Vertex Step Block (SKU 5124) are provided to check fitment and orientation during planning.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
