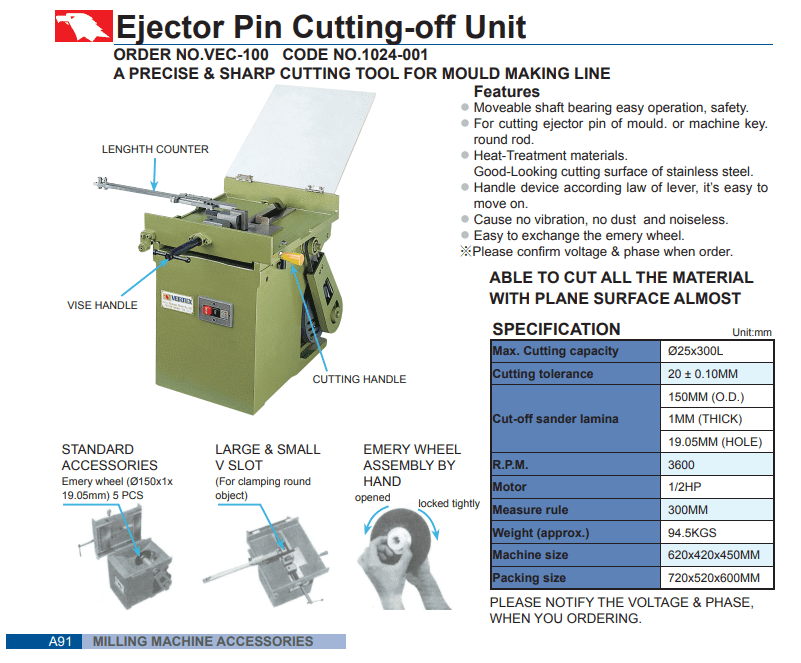

VEC-100 Ejector Pin Cutting Machine — 3,600 rpm, 0.1 mm accuracy (Vertex)

The VEC-100 is a precision ejector pin cutting machine designed for mouldmaking and toolroom applications, delivering fast, repeatable cuts for small, high-precision components.

• High-speed 3,600 rpm for efficient throughput
• Repeatable accuracy to 0.1 mm per cut
• Solid, vibration-damping construction at 94.5 kg
• Compact footprint: 620x420x450mm

Consistent, measurable precision for small parts

The VEC-100 offers reliable precision that supports repeatable production of ejector pins and similar small parts. With a specified accuracy of 0.1 mm, the cutter reduces the need for manual rework and length matching, which shortens downstream processing time. The stated tolerance refers to the reproducibility of the cut length under normal operating conditions; this allows workshop planners to calculate yield and set-up intervals with confidence. Precision in this context means fewer rejects and a more predictable production rhythm.

Faster cycle times through controlled high speed

A nominal spindle speed of 3600 rpm enables shorter cycle times while maintaining cut quality when paired with appropriate tooling and feed. High rotational speed improves throughput for small-diameter pins where multiple cuts are required, and the machine’s design prioritises stable cut conditions to avoid burr formation. By combining rotational speed with steady workholding and a stiff frame, the unit achieves a balance between productivity and surface integrity, supporting lean manufacturing workflows in toolmaking environments.

Robust, compact build that fits the workshop

Engineered for stability, the machine’s robust construction and mass of 94.5 kg reduce vibration and contribute to consistent cutting results. Its compact footprint (620x420x450mm) makes it suitable for benches or dedicated cells without sacrificing rigidity. The compact design also simplifies integration into existing production lines and allows planners to make efficient use of floor space. Maintenance is straightforward thanks to accessible service points, helping to keep downtime predictable and limited.

Contact Metav Werkzeuge to discuss integration of the Vertex VEC-100 into the workshop and to arrange a tailored delivery and setup plan close to your facility

Technical Data

• Article number: VEC-100
• GTIN: 4061905084096
• Manufacturer: Vertex

Facts

• Accuracy: 0.1 mm
• Speed: 3600 rpm
• Weight: 94.5 kg
• Dimensions: 620x420x450mm

Special features

• eClass: 23120390
• ETIM: EC001959
• SKU: VEC-100

FAQ

What materials can be processed with this cutter?
The VEC-100 is intended for cutting standard ejector-pin materials used in mouldmaking; compatibility depends on the chosen cutting tool and process parameters.

How does the specified accuracy affect production planning?
An accuracy of 0.1 mm for the VEC-100 allows planners to minimise post-cut matching and to set realistic yield and inspection intervals for small-part production.

Is the machine suitable for bench mounting in a small workshop?
Yes; the compact footprint (620x420x450mm) and solid 94.5 kg construction are designed for placement on benches or in compact cells typical of toolrooms.

Which brand manufactures this machine?
The VEC-100 is manufactured by Vertex and is supplied through Metav Werkzeuge for European customers.

What information is needed to order spare parts or tooling?
Provide the machine SKU (VEC-100) and the part description; Metav Werkzeuge can assist with correct tooling and spare-part selection.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
