63mm Rotary Chuck Angle Plate With Chuck, 15 Kg Load Capacity, 0.01mm Accuracy - Vertex

Take advantage of the combination of high repeatability, robust load capacity and a compact footprint for efficient clamping operations; order the unit directly via Metav Werkzeuge or consult our specialists for tailored integration advice.

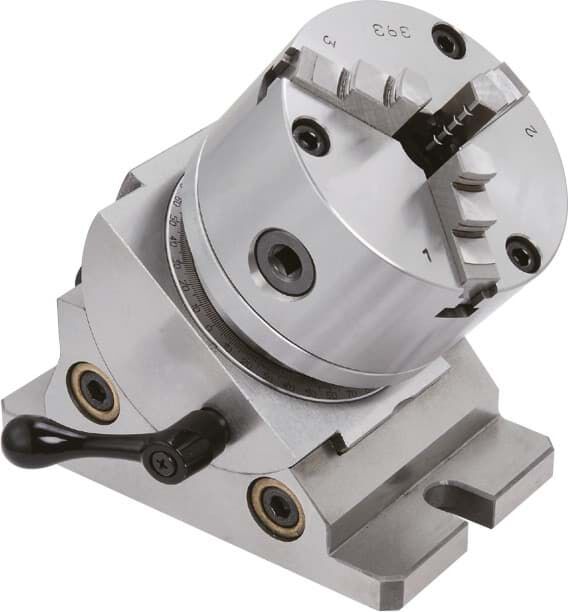

VUA-100J mounting angle with rotary chuck — 63 mm chuck, 0.01 mm accuracy (Vertex)

VUA-100J is a mounting angle fitted with a rotary chuck for precise orientation and secure clamping in workshop and inspection setups.

*Precision ±0.01 mm for repeatable setups *63 mm rotary chuck for secure clamping *Rated load up to 15 kg for heavy workpieces *Compact footprint 180×110×136 mm for space-saving

Precise alignment that reduces setup time

The unit delivers 0.01 mm repeatability, a level of precision that supports tight tolerances in inspection, calibration and light machining tasks. Accurate positioning is achieved through the integrated rotary chuck, which promotes consistent concentricity and simplifies indexing of the workpiece. For operations that demand reproducible reference points, the device acts as a stable fixturing element, helping to reduce rework and maintain production throughput.

Reliable support for medium-weight components

With a rated capacity of 15 kg, the mounting angle accommodates a broad range of parts commonly encountered in small-batch production and metrology fixtures. The solid construction and balanced mass (approx. 12 kg) keep the assembly stable during handling and when rotating the chuck, so the clamped item remains secure. This stability supports repeatable measurements and safer handling compared with lighter, less rigid fixtures.

Small footprint, simple integration into existing rigs

The compact dimensions of 180×110×136 mm make the device easy to position on machine tables, measuring stations or assembly benches without consuming valuable workspace. Its modest size and standard chuck diameter allow it to be incorporated into modular clamping arrangements or combined with other tooling elements. Where floor or table space is limited, the mounting angle provides a space-efficient solution without sacrificing functional capability.

Clear technical advantages for everyday workshop use

The 63 mm rotary chuck offers a familiar interface for clamping cylindrical or faced parts, enabling quick workpiece changes and precise angular adjustment. The design concentrates on predictable behaviour: precise indexing, secure holding and compatibility with common shop practices. For users seeking consistency in routine setups, the component reduces variability and supports faster, quality-driven workflows.

For guidance on integrating the Vertex VUA-100J into existing fixtures or for bespoke clamping recommendations, contact Metav Werkzeuge — our Emmerich-based team provides practical advice and reliable supply from stock.

Technical Data

• Article number: VUA-100J
• GTIN: 4061905084386
• eClass: 21020601

Facts

• Accuracy: 0.01 mm
• Max load: 15 kg
• Weight: 12 kg

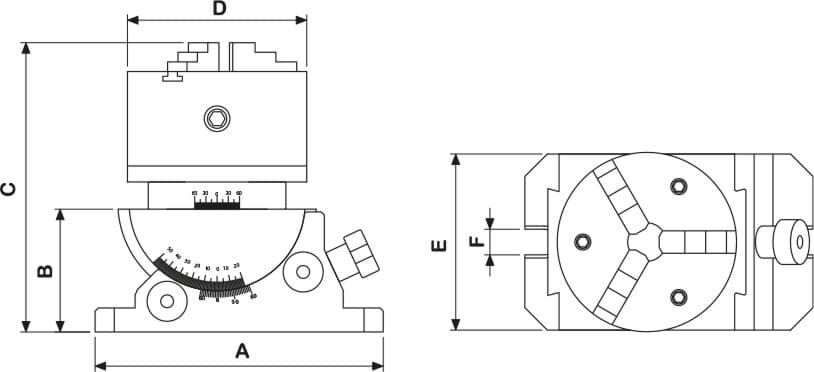

• Dimensions: 180×110×136 mm
• Chuck diameter: 63 mm

Special features

• Mounting angle with rotary chuck
• Chuck diameter: 63 mm
• Compact design for bench or table mounting

FAQ

What level of positional precision can be expected?
The VUA-100J offers a repeatability of 0.01 mm, which ensures consistent positioning for inspection and light machining tasks.

Which workpiece weight is supported by this clamping angle?
The device is rated for loads up to 15 kg, making it suitable for medium-weight components commonly handled in workshops.

What does the 63 mm chuck diameter mean for clamping options?
A 63 mm rotary chuck provides a versatile clamping interface for cylindrical and flanged parts and facilitates quick changeover during repetitive setups.

Can the mounting angle be used on machine tables and measuring stands?
Yes. The compact footprint of 180×110×136 mm allows straightforward placement on machine tables, measuring fixtures and workbenches.

Is the VUA-100J suitable for repeatable indexing and alignment tasks?
Designed with a rotary chuck and precise mechanics, the VUA-100J supports accurate indexing and alignment for routine metrology and fixture tasks.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
