90° 1200 N Pneumatic Vertical Base Clamp Without Handle, Zinc Coated, 1400 N Retaining Force - Kukamet
€123.00
Product information "90° 1200 N Pneumatic Vertical Base Clamp Without Handle, Zinc Coated, 1400 N Retaining Force - Kukamet"
Take advantage of reliable pneumatic actuation, a compact vertical-foot design and corrosion-resistant galvanised construction to secure fast, reproducible clamping cycles. Order the clamp directly via Metav Werkzeuge or ask the consultants for application advice.

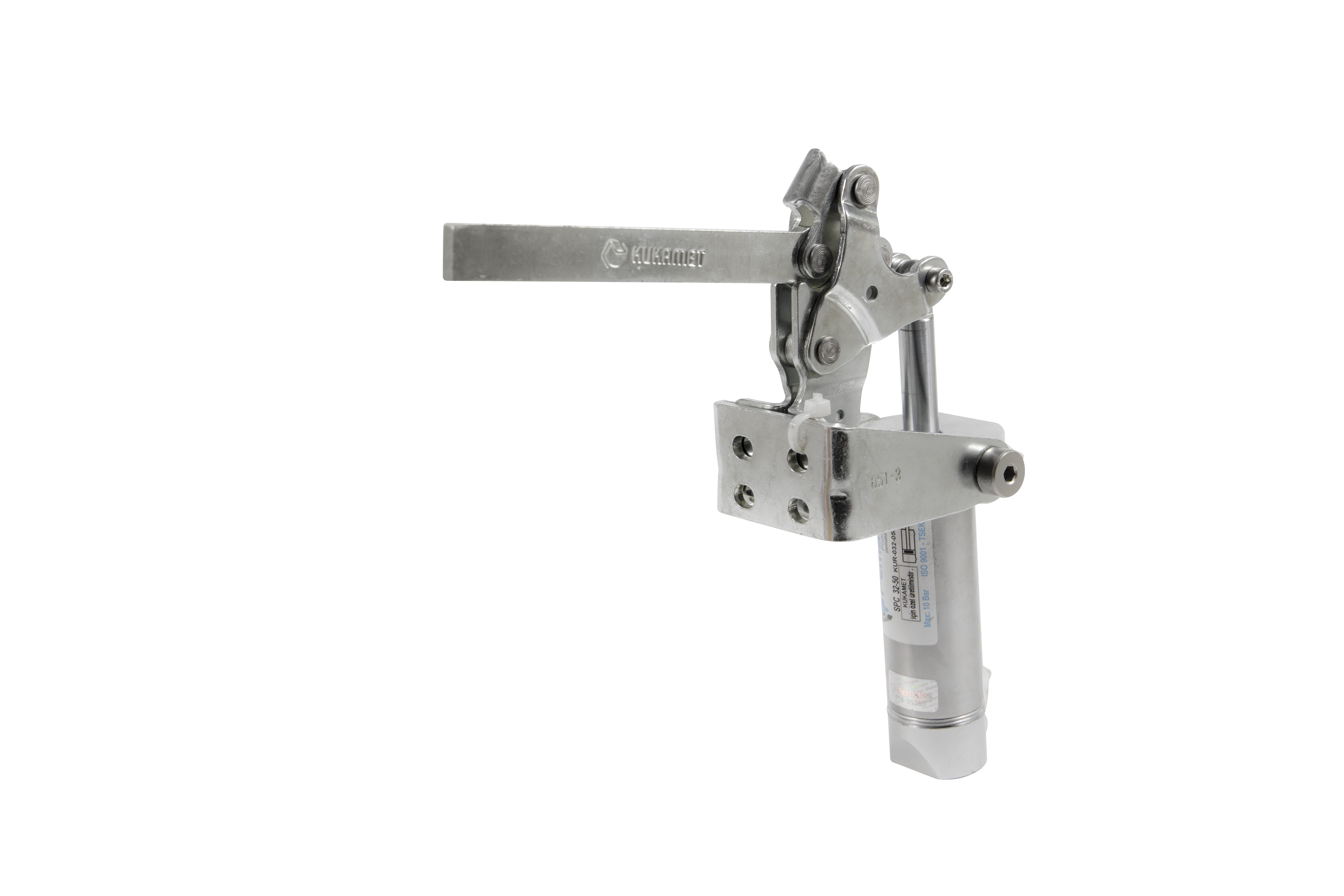

Pneumatikspanner 651 — Pneumatic toggle clamp with 1,200 N actuation (Kukamet)
The Pneumatikspanner 651 is a pneumatic toggle clamp designed for secure, repeatable holding in assembly and machining fixtures; suited to vertical-foot mounting and 90° clamping applications
- Galvanised steel construction for durability
- 1,200 N pneumatic actuation force
- 90° clamping angle for vertical mounting
- Compact 0.57 kg body reduces fixture load
Consistent clamping performance for high-throughput production
The Pneumatikspanner 651 delivers a controlled pneumatic actuation that translates to 1,200 N of clamping force and a holding force of 1,400 N, ensuring stable workpiece retention during machining and assembly operations. This level of repeatable force reduces the need for readjustment and lowers scrap rates, which benefits production efficiency and quality control. The pneumatic mechanism provides short cycle times and consistent force application, making the clamp suitable for automated or semi-automated fixtures where process stability is critical.
Space-saving design that fits into compact fixtures
A compact unit mass of 0.57 kg combined with a vertical foot mounting option and a 90° clamping angle allows the clamp to be integrated into confined tooling layouts with minimal modification. The galvanised finish offers basic corrosion resistance, extending service life in standard workshop environments. The absence of a manual handle minimises interference in tight assemblies and prevents inadvertent actuation, which is advantageous in densely packed jigs and when multiple clamps operate in close proximity.
Simple integration and low-maintenance operation
The pneumatic toggle configuration simplifies connection to existing compressed-air systems and supports standard pneumatic control hardware for synchronized operation. The compact construction and zinc-coated surfaces require only routine inspection and basic cleaning; there are no elaborate user-servicing procedures. Installation uses the vertical base for secure fastening to tooling plates or fixture blocks, and compatibility with common clamping arrangements makes commissioning straightforward. The result is a dependable clamp that keeps downtime and maintenance effort to a minimum while supporting continuous production.
Contact Metav Werkzeuge for tailored application guidance on Kukamet pneumatic clamps—call +49 2822 7131930 or email info@metav-werkzeuge.com to arrange supply from Emmerich and ensure the right configuration for the task
Technical data
- SKU: 651-2
- GTIN: 8680731503081
- Manufacturer: Kukamet
Facts
- Max actuation force: 1,200 N
- Max holding force: 1,400 N
- Weight: 0.57 kg
- Clamping angle: 90°
- Mounting: vertical foot
- eCl@ss: 21021004
- ETIM: EC011973
Special features
- Material: galvanised
- Without handle
- Pneumatic toggle clamp
- Category: Spanner
FAQ
What is the maximum clamping force of this clamp?
The Pneumatikspanner 651 provides a pneumatic actuation force of 1,200 N and a maximum holding force of 1,400 N for secure retention during machining and assembly.
Can the clamp be mounted in confined fixtures?
Yes, the compact design and vertical-foot mounting of the pneumatic toggle clamp make it suitable for integration into tight tooling layouts and stacked fixture arrangements.
Is the surface finish suitable for workshop environments?
The galvanised construction on the Pneumatikspanner 651 offers basic corrosion resistance appropriate for standard workshop and industrial environments.
Does the clamp require a manual handle for operation?
This model is supplied without a manual handle; the pneumatic actuation is intended for use with compressed-air control systems or automatic fixture controls.
What maintenance does the clamp need?
Routine inspection, cleaning and verification of pneumatic connections are sufficient; the clamp’s simple construction avoids complex maintenance procedures and supports long service intervals.
