500x320mm Chamfering And Deburring Machine With Replaceable Carbide Inserts, 3500r.p.m. - Vertex

Built for accurate edge finishing, the VCF-500 pairs replaceable carbide inserts with a high-speed spindle to deliver fast, consistent chamfering and deburring — ideal for busy workshops. Order the Vertex VCF-500 via Metav Werkzeuge or consult Metav’s specialists for tailored delivery and technical advice.

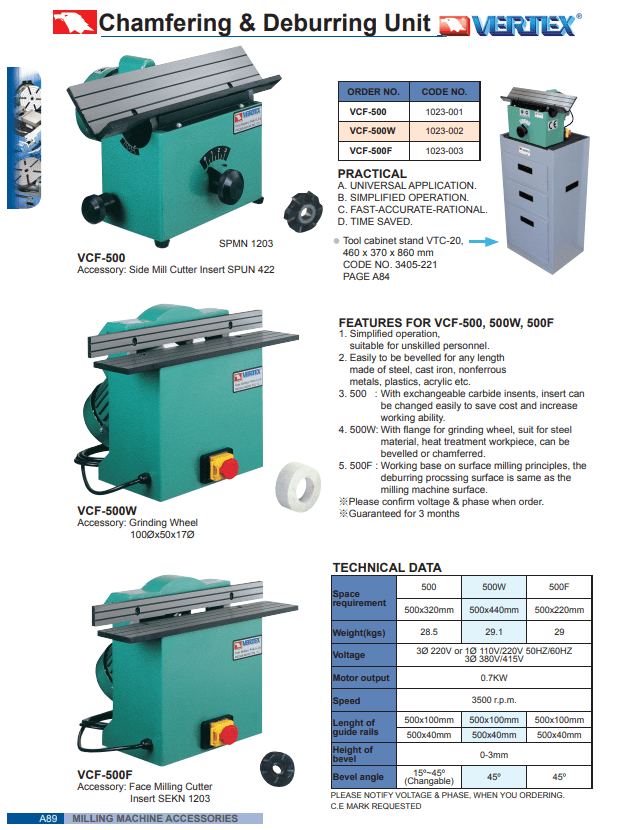

VCF-500 — Vertex chamfering and deburring machine, 3,500 r.p.m.

The VCF-500 is a compact chamfering and deburring machine designed for workshop and light-production environments, delivering repeatable edge preparation with minimal setup time

• Replaceable carbide inserts for long life
• 3,500 r.p.m. spindle speed for fast processing
• Compact footprint: 500 x 320 mm
• Incl. side indexable milling plate SPUN 422

Rapid, consistent edge preparation to speed workflows

The machine’s combination of a high-speed spindle and replaceable carbide inserts delivers a reliable process for edge finishing. With a rated speed of 3,500 r.p.m., the unit reduces cycle times while maintaining a consistent finish across batches. This translates into measurable productivity gains on repeated chamfering tasks, helping to optimise throughput without complex adjustments. Operators with limited metrology experience benefit from predictable results and fewer reworks.

Small footprint, robust build for workshop environments

With a compact footprint of 500 x 320 mm and a net mass of 28.5 kg, the machine fits neatly onto standard workbenches or production islands. The relatively low weight supports flexible placement and straightforward integration into existing workflows, while the robust construction ensures vibration damping for steady results. These characteristics support efficient shop-floor layout and make the unit suitable for both manual and semi-automated production cells.

Practical accessories and flexible power supply for diverse shops

The VCF-500 includes a side indexable milling plate SPUN 422, enabling immediate use for common deburring and chamfering tasks. Multiple supply options — single‑phase and three‑phase voltages — provide installation flexibility: 3Ø 220V or 1Ø 110V/220V 50Hz/60Hz and 3Ø 380V/415V. This adaptability simplifies integration into different electrical environments and reduces downtime during commissioning, while the accessory package supports fast changeovers between operations.

Wide applicability while keeping operation straightforward

Designed primarily for edge finishing tasks such as chamfering and deburring, the unit delivers a balanced mix of speed and control that suits maintenance shops, toolrooms and small batch production. Maintenance focuses on periodic insert changes rather than complex overhauls, keeping lifecycle costs predictable. Clear mechanical adjustments and visible tooling choices reduce setup errors and help maintain consistent part quality across runs.

For reliable, high‑throughput chamfering select the Vertex VCF-500 and contact Metav Werkzeuge for personalised delivery and technical guidance from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: VCF-500
• GTIN: 4061905083129
• Designation: Anfas- und Entgratmaschine

Core specifications

• Dimensions: 500 x 320 mm
• Weight: 28.5 kg
• Spindle speed: 3,500 r.p.m.

Features and accessories

• Replaceable carbide inserts
• Incl. side indexable milling plate SPUN 422
• Supply voltages: 3Ø 220V; 1Ø 110V/220V 50Hz/60Hz; 3Ø 380V/415V
• Brand: Vertex

FAQ

How fast does the machine operate?
The VCF-500 runs at a spindle speed of 3,500 r.p.m., offering a balance between surface finish and processing speed for chamfering and deburring tasks.

What tooling is included with the unit?
The delivery includes a side indexable milling plate SPUN 422 and the machine uses replaceable carbide inserts for ongoing serviceability.

Is the VCF-500 easy to integrate into different power systems?
Yes. The VCF-500 accepts multiple supply options: 3Ø 220V, 1Ø 110V/220V (50Hz/60Hz) and 3Ø 380V/415V, allowing straightforward installation in varied electrical environments.

Which applications suit this machine best?
The unit is intended for workshop-level chamfering and deburring, making it suitable for maintenance departments, toolrooms and small-batch production where reliable edge finishing is required.

How often should carbide inserts be changed?
Insert life depends on material and usage intensity; however, the VCF-500’s design with replaceable carbide inserts simplifies replacement, keeping corrective downtime to a minimum.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
