100mm Toolholder For DCMT 11T3 Indexable Inserts 93° Cutting Angle, Right-Hand - Teknik Makina

High-rigidity clamping for DCMT 11T3 indexable inserts combines a compact 16×16 ISO 1616 shank with a 100 mm overall length for secure mounting and consistent chip control; its right-hand 93° cutting configuration supports stable turning cycles. Order the clamping holder directly via Metav Werkzeuge or ask our consultants if needed.

Clamping holder for DCMT 11T3 (L100 mm) — right-hand tool holder with 16×16 shank (Teknik Makina)

A Clamping holder for DCMT 11T3 (L100 mm) engineered for accurate right-hand turning and reliable insert retention in workshop and light-industrial lathe setups.

• ISO 1616 16×16 shank for stable mounting
• Compatible with DCMT 11T3 indexable inserts
• Right-hand orientation with 93° cutting angle
• 100 mm overall length, robust clamping with 3 Allen

Precision and rigidity for repeatable turning

A compact holder with an ISO 1616 16×16 shank provides a stable interface between tool post and cutting edge, reducing deflection during operation. The reduced overhang at 100 mm overall length shortens lever arm forces, which improves dimensional repeatability when performing succession turning tasks. For workshops seeking measurable process improvements, the combination of shank geometry and solid construction translates into fewer reworks and more consistent cycle times.

Geometry tuned for controlled cutting forces

The right-hand orientation and 93° cutting angle position the insert for predominantly radial engagement, helping to direct chips away from the workpiece and tool post. The 20 mm cutting head width and 28 mm cutting height support appropriate insert projection and contact surface for DCMT 11T3 grades. These dimensions explain why the holder is suitable for general turning where chip control and tool stability are decisive for surface finish and tool life.

Practical clamping and serviceability in daily use

Clamping is achieved with a secure three‑hex arrangement (supplied key: 3 Allen), allowing quick insert changes and firm seat tightening. At a mass of 0.236 kg, the holder is easy to handle during tool set-up while remaining rigid in operation. The robust clamping detail reduces micro-movements that can accelerate insert wear. For maintenance, familiar workshop tools suffice; the straightforward design keeps downtime low and replacement straightforward.

Application focus and workshop advantages

Designed for DCMT 11T3 indexable inserts, this holder is intended for routine right-hand turning in toolrooms and production benches where reliability and repeatable geometry matter. The compact profile and industry-standard shank aid compatibility with common tool posts and quick-change systems. For procurement and process planning, the proven mechanical concept supports uninterrupted production and easier tool inventory standardisation.

For application advice and supply of Teknik Makina clamping holders contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or +49 2822 7131930 to discuss specifications and delivery from Emmerich

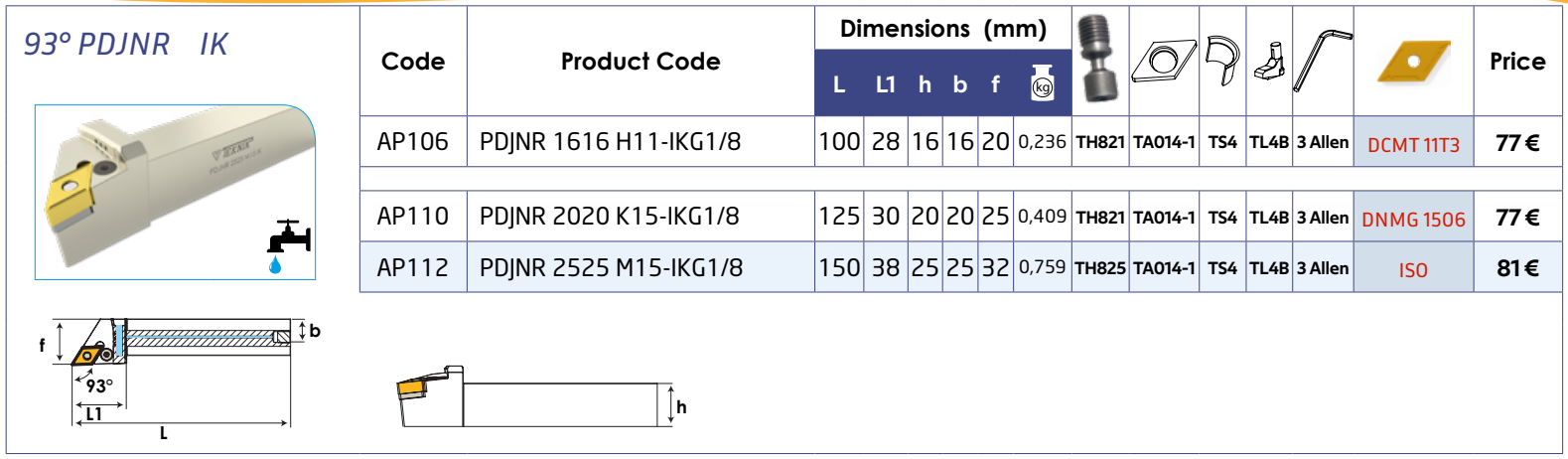

Technical data

• Article number: AP106TM
• Label: Klemmhalter DCMT 11T3 L100mm
• Manufacturer: Teknik Makina

Core dimensions

• Overall length: 100 mm
• Weight: 0.236 kg
• Shank width: 16 mm
• Shank height: 16 mm
• Cutting head width: 20 mm
• Cutting height: 28 mm
• Cutting angle: 93°
• Direction: right

Features

• ISO designation: 1616
• Clamping key: 3 Allen
• Compatible inserts: DCMT 11T3
• Product type: Clamping holder
• SKU: AP106TM

FAQ

What inserts fit this holder?
The holder is specified for DCMT 11T3 indexable inserts; the seat and clamping geometry are matched to this insert family for correct seating and chip control.

Is this holder suitable for left-hand turning?
This version is configured for right-hand turning with a 93° cutting angle; left-hand operations require the corresponding left-hand holder.

What toolpost shank does the holder use?
The shank follows ISO 1616 (16×16) dimensions, ensuring stable mounting in compatible tool posts and quick-change adaptors.

How is the insert clamped and serviced?
Insert retention uses a three‑hex clamping arrangement with the supplied 3 Allen key for fast removal and reinstallation while maintaining repeatable clamping force.

What is the article number and brand?
Article number AP106TM, manufactured by Teknik Makina and distributed via Metav Werkzeuge.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
