100mm PWLN Turning Holder for WNMG 0604, 95° - Teknik Makina

Turning Holder PWLN for WNMG Indexable Inserts — Teknik Makina

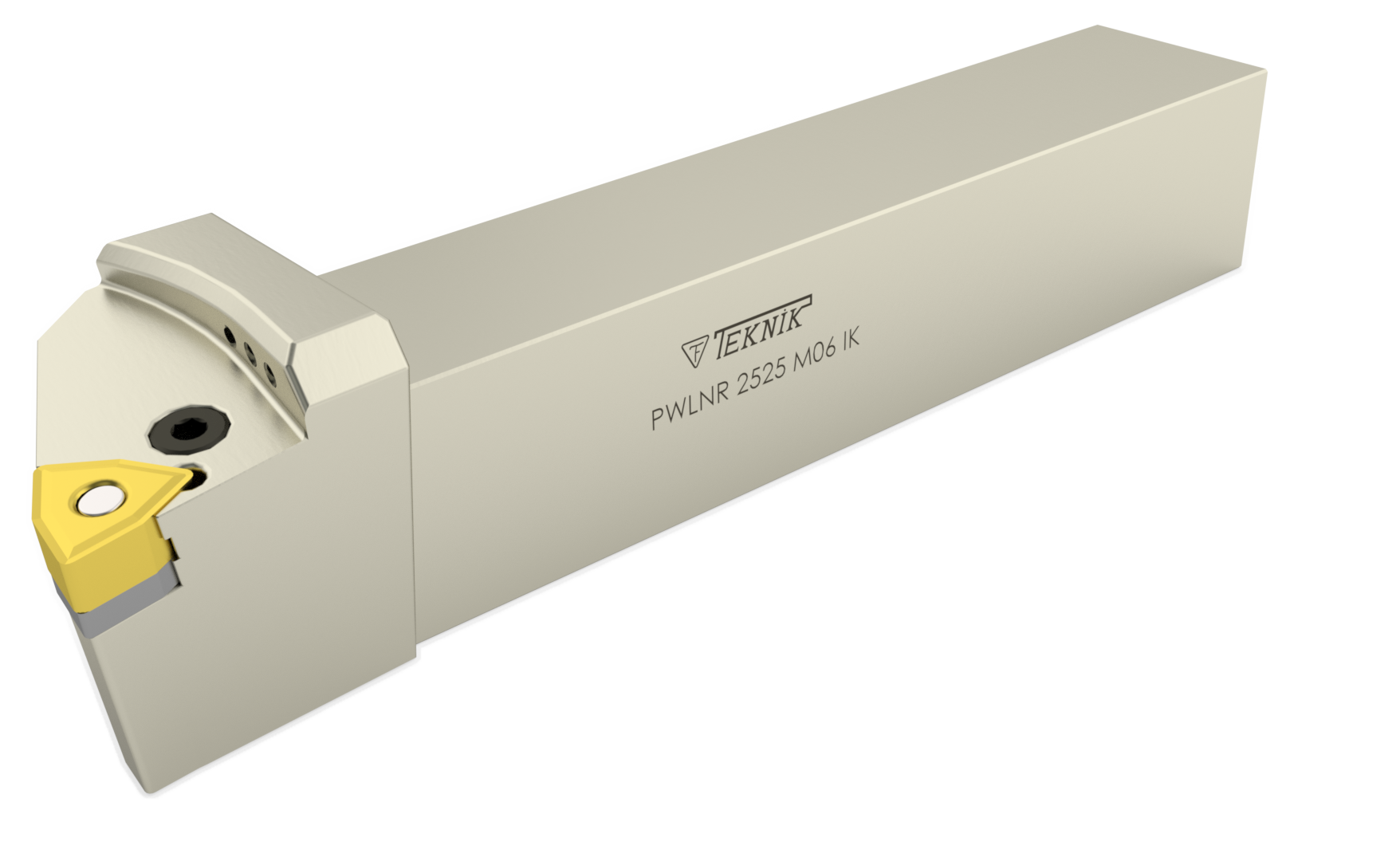

The Turning Holder is a compact, precision tool designed for right-hand turning with WNMG 0604 indexable inserts, ideal for professional workshop and lathe applications.

• Compatible with WNMG 0604 inserts
• Internal Cooling for improved Chip Evacuation
• Robust clamp system with TH617 screw
• 100 mm Overall Length for versatile reach
• Right-hand Cutting with 95° cutting angle

Precision and Compatibility for Accurate Turning

Built around compatibility with WNMG 0604 indexable inserts, this holder delivers consistent Precision in external turning operations. The 95° cutting angle and right-hand configuration ensure stable contact and predictable Chip Flow, reducing vibration and improving Surface Finish. For shops that demand repeatable results, the combination of insert fit and holder geometry supports reliable toolpaths and predictable machining outcomes.

Robust Construction and Practical Features

The holder combines a compact profile with practical mechanical parts to simplify workshop routines. With a 100 mm Length, a 16 mm Width and 16 mm Height, plus a 20 mm Cutting Head Width, the design balances rigidity and access. The clamping system uses the TH617 clamp screw and TL3 knee lever for secure fixation, while the Internal Cooling feature assists in temperature control and Chip Evacuation during longer cuts.

Who Benefits and When to Use This Tool

This Turning Holder is developed for machining professionals, CNC turning centres and manual lathe operators who use WNMG 0604 inserts and require a compact, reliable tooling solution. Operators will appreciate faster Insert Changes and consistent clamp performance, which help reduce setup time and maintain machining quality across batch runs. The holder’s format suits short to medium overhangs where rigidity and cooling support are priorities.

Easy Setup and Low-Maintenance Operation

Assembly and maintenance are straightforward: the holder matches the ISO designation PWLNR 1616, uses a 2.5 mm Allen key for adjustments, and includes straightforward locating features such as the TS3 dowel pin. Regular inspection of the clamp screw and knee lever keeps performance stable, and the open design allows quick visual checks of insert seating to avoid interruptions during production.

For technical assistance or to confirm compatibility with your machine, contact METAV Werkzeuge for expert advice and support — they provide competent consultation for complex tooling decisions and can help specify the right configuration for your application. 📧 info@metav-werkzeuge.com ☎️ +49 2822 7131930 ✔️ WhatsApp +49 170 2837271

Technical Specifications

• Designation: Turning Holder
• Brand: Teknik Makina
• SKU: AP158TM
• Compatible Indexable Inserts: WNMG 0604
• ISO Designation: PWLNR 1616
• Secondary Designation: H06-IKG1/8
• Overall Length: 100 mm
• Width: 16 mm
• Height: 16 mm
• Cutting Head Width: 20 mm
• Cutting Height: 30 mm
• Clamp Screw: TH617
• Knee Lever: TL3
• Dowel Pin: TS3
• Hex Key: 2.5 mm Allen key
• Internal Cooling: Yes
• Cutting Direction: Right
• Cutting Angle: 95°
• Weight: 0.218 kg
• GTIN: 4061905150371
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Turkey, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

What inserts fit the Turning Holder and which insert size is recommended?
The Turning Holder from Teknik Makina is designed for WNMG 0604 indexable inserts; this size ensures correct seating and chip control when used with the holder’s 95° geometry.

Does the Teknik Makina Turning Holder support coolant-through operation?
Yes, the Turning Holder features Internal Cooling, which aids chip evacuation and temperature management when coolant supply is available.

Which tools are needed for assembly and maintenance of the Turning Holder?
Assembly and basic maintenance of the Teknik Makina Turning Holder require a 2.5 mm Allen key for clamp adjustments and inspection of the TH617 clamp screw and TL3 knee lever for secure fixation.

Is the Turning Holder suitable for right-hand and left-hand turning?
The Teknik Makina Turning Holder is configured for right-hand cutting with a 95° cutting angle and is intended for standard right-hand turning operations; left-hand versions would require a corresponding left-hand variant.
