200mm Shank Holder for DNMG 1104 Indexable Inserts 93° Right-Hand, 40mm Cutting Height - Teknik Makina

Take advantage of the combination of rigid clamping, proven compatibility with DNMG 1104 indexable inserts and a compact 200 mm overall length for efficient turning operations. Order the boring bar directly via Metav Werkzeuge or consult our specialists for application advice.

Boring bar DNMG 1104 L200mm — right-hand external turning tool with 93° cutting angle (Teknik Makina)

Boring bar DNMG 1104 L200mm is a precision external turning tool engineered for finishing and profiling with DNMG 1104 indexable inserts in standard turning centres and lathes.

• Compatible with DNMG 1104 inserts
• 200 mm overall length for deep reach
• 18 mm clamping height for solid fixation

Stable geometry for consistent turning results

The bar offers a 93° cutting angle that positions the insert for secure shoulder cuts and close-detail finishing; this geometry reduces unwanted overhang forces and improves repeatability. With a focus on machining stability, the design supports consistent chip formation and helps maintain surface quality across successive passes. Engineers and workshop managers will appreciate the predictable mechanical behaviour that comes from a well-defined approach angle and a right‑hand cutting orientation.

Secure clamping and accessible toolholder dimensions

Clamping is provided with a clamping height of 18 mm and a cutting head width of 13 mm, ensuring a robust seat for the insert pocket. The configuration allows a compact toolholder footprint while maintaining the rigidity required for medium to demanding finishing operations. The bar’s cutting height of 40 mm gives a clear reference for insert projection and setup, simplifying tool offsets and reducing changeover time during indexable-insert replacements.

Practical cutting direction and geometry explained

A right-hand cutting direction combined with the near‑perpendicular cutting angle is particularly suited to external facing and finishing where axial approach and radial clearance must be balanced. The nearly 93° angle mitigates rubbing at the corner and supports effective load transfer into the bar shank. For operations that demand repeatable shoulder integrity and dimension control, this geometry provides a reliable basis for predictable tool life and process stability.

Ready for integration into workshop tooling systems

Weighing approximately 0.5 kg and carrying the stock code AP299TM, the bar integrates easily into existing tool inventories. Its compatibility with the widely used DNMG 1104 family of inserts means minimal changes to tooling standards while enabling quicker adaptation to different materials through insert selection. Supplied specifications support swift programming of offsets and enable efficient planning for consumable rotation and reorder cycles.

Discuss insert compatibility and order AP299TM from Teknik Cutting Tools via Metav Werkzeuge for dependable supply and application guidance.

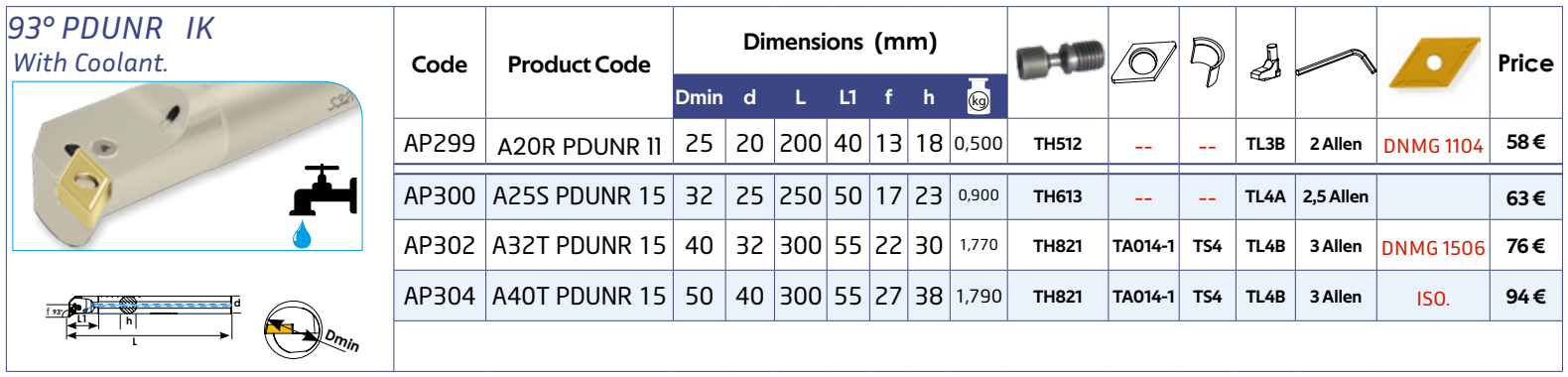

Technical data

• Article number: AP299TM
• SKU: AP299TM
• Brand: Teknik Makina
• Product type: Boring bar

Core dimensions

• Overall length: 200 mm
• Weight: 0.5 kg
• Clamping height: 18 mm
• Cutting head width: 13 mm
• Cutting height: 40 mm
• Cutting angle: 93°
• Cutting direction: right

Features & compatibility

• Compatible with DNMG 1104 indexable inserts
• Hex key: 2 Allen
• Category: Boring bars
• Eclass: 21180806

FAQ

Which inserts fit this boring bar?
The bar is compatible with DNMG 1104 indexable inserts; selecting the appropriate grade and geometry for the workpiece material ensures optimal results with this boring bar.

Is the AP299TM suitable for finish turning on shafts?
Yes, the AP299TM from Teknik Cutting Tools is designed for external finishing and shoulder work, thanks to its 93° cutting angle and rigid clamping dimensions.

What is the overall length and how does it affect reach?
The overall length is 200 mm, providing additional reach for recessed or deep-profile turning while maintaining adequate stiffness for finishing tasks.

How does the clamping height influence stability?
A clamping height of 18 mm offers a secure seat for the insert pocket, improving stability and reducing vibration during medium- to fine-finishing operations.

Can this bar be used for both roughing and finishing?
The geometry and rigidity are geared toward finishing and profiling; for heavy roughing, alternative toolholders with larger shank diameters may be preferable.
