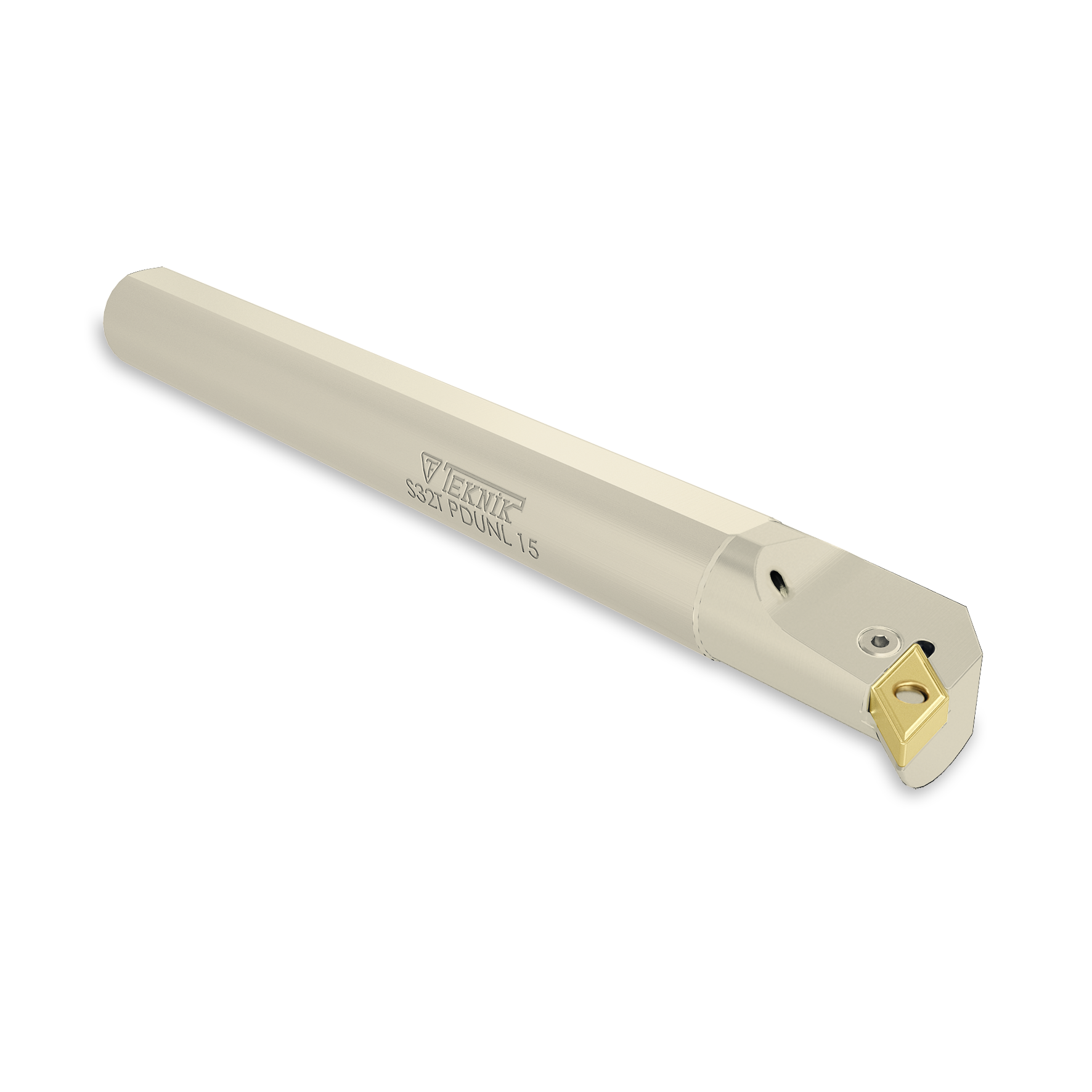

200mm Boring Bar for DNMG 1104 Indexable Inserts Left-Hand 93° Cut Height 40mm - Teknik Makina

Combining a left‑hand cutting direction, compatibility with DNMG 1104 indexable inserts and a 200 mm overall length, this drilling bar provides reliable reach and repeatable insert positioning for demanding turning and boring operations. Order the tool directly via Metav Werkzeuge or request tailored advice from our consultants.

Drilling Bar AP309TM — for DNMG 1104 indexable inserts, 200 mm, left‑hand — Teknik Makina

The Drilling Bar AP309TM is a left‑hand tool holder engineered to accept DNMG 1104 indexable inserts, offering secure clamping and stable performance for internal and external boring tasks in production environments

• Compatible with DNMG 1104 indexable inserts
• 200 mm overall length for deeper reach
• Left‑hand cutting direction for reverse turning
• Clamping with 2 Allen keys, 18 mm head height

Enhanced productivity through proven compatibility and reach

The AP309TM drilling bar is built around compatibility with DNMG 1104 indexable inserts, which allows rapid insert changes and straightforward integration into existing tooling systems. With an overall length of 200 mm, the tool provides extended reach for deeper bores while maintaining rigidity, reducing the need for repeated re‑clamping. The left‑hand cutting orientation supports reverse‑direction machining operations, enabling process flexibility on machines and setups where standard right‑hand holders are unsuitable. This combination of features reduces cycle time and simplifies tool inventory management.

Secure clamping for consistent cutting performance

A stable clamping interface is central to repeatable machining quality; the holder features a clamping head height of 18 mm and a clamping head width of 13 mm, designed for positive insert seating and minimal movement under load. Clamping is effected with 2 Allen keys, ensuring a compact and serviceable fixation that is quick to adjust during changeovers. The defined cutting height of 40 mm aligns insert geometry precisely, helping to maintain surface finish and dimensional accuracy across batches. The holder’s modest mass (0.5 kg) supports easy handling without compromising stability.

Practical fitment and production support for workshops

Designed for use as a robust component in production tool racks, the drilling bar integrates with standard indexable insert workflows and is straightforward to set up on CNC lathes and boring heads. A cutting angle of 93° supports predictable chip flow and contact conditions at the insert edge, contributing to longer insert life when paired with correct cutting parameters. The AP309TM is supplied under Teknik Makina’s manufacturing standard and is identified as SKU AP309TM for easy ordering and reordering, ensuring consistent replenishment and traceability in procurement processes.

For procurement of Teknik Makina’s AP309TM drilling bar or bespoke advice on left‑hand DNMG 1104 tooling solutions, contact Metav Werkzeuge in Emmerich for fast, reliable supply and expert guidance

Technical Data

• Article number: AP309TM
• Label: Bohrstange DNMG 1104 L200mm
• Product type: Drilling bar
• Manufacturer: Teknik Makina
• eClass: 21180806

Facts

• Overall length: 200 mm
• Weight: 0.5 kg
• Cutting height: 40 mm
• Clamping head height: 18 mm
• Clamping head width: 13 mm
• Cutting angle: 93°
• Cutting direction: left
• Allen keys: 2

Special features

• Compatible with DNMG 1104 indexable inserts
• Secure clamping with 2 Allen keys
• Left‑hand machining orientation
• SKU / UID: AP309TM

FAQ

What inserts does this holder accept?
The AP309TM drilling bar accepts DNMG 1104 indexable inserts, providing fast insert changes and standardised seating for predictable machining.

Is the cutting direction suitable for reverse turning operations?
Yes, the holder is designed with a left‑hand cutting direction, making it suitable for reverse turning and specific machining set‑ups.

What are the key dimensions relevant for set‑up?
Key dimensions for set‑up include an overall length of 200 mm, a clamping head height of 18 mm and a cutting height of 40 mm, which help ensure correct insert alignment.

How is the insert secured in the holder?
Insert clamping is performed using 2 Allen keys for a compact, serviceable fixation that supports repeatable and secure seating of DNMG 1104 inserts.

Which SKU should be ordered for this drilling bar?
Order using SKU AP309TM to ensure the correct Teknik Makina drilling bar is supplied.

Manufacturer / Responsible: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
