12mm SVJC for VCMT Indexable Inserts, flat version, internal coolant, left cut, 93° - Teknik Makina

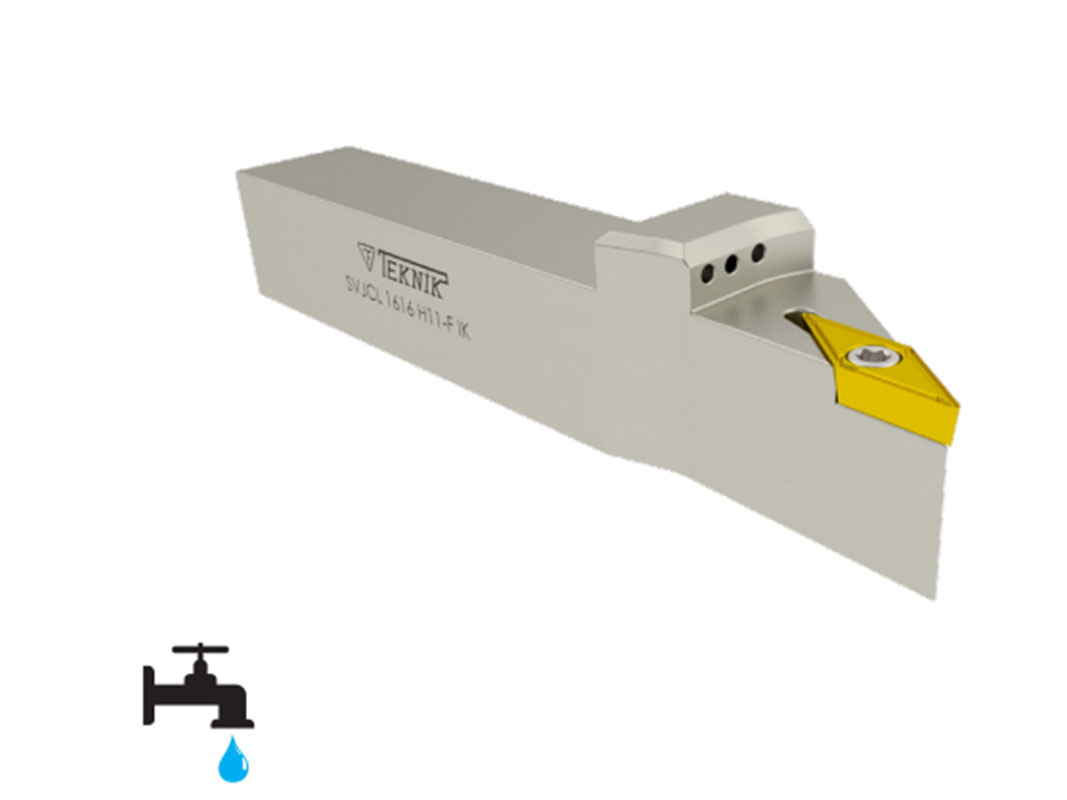

Turning Holder (SVJC for VCMT Indexable Inserts) by Teknik Makina

The Turning Holder (SVJC for VCMT Indexable Inserts) is a flat-style clamping tool designed for precision turning with VCMT 1103 inserts in left-hand machining operations.

• Flat SVJC turning holder for VCMT 1103 inserts
• Internal Cooling for stable chip control
• Left-hand cutting with 93° cutting angle
• Compact 110 mm length, 12 mm shank dimensions
• Torx T8 key and M2.5x6.5 fastening specification

Precision Design for Reliable Turning

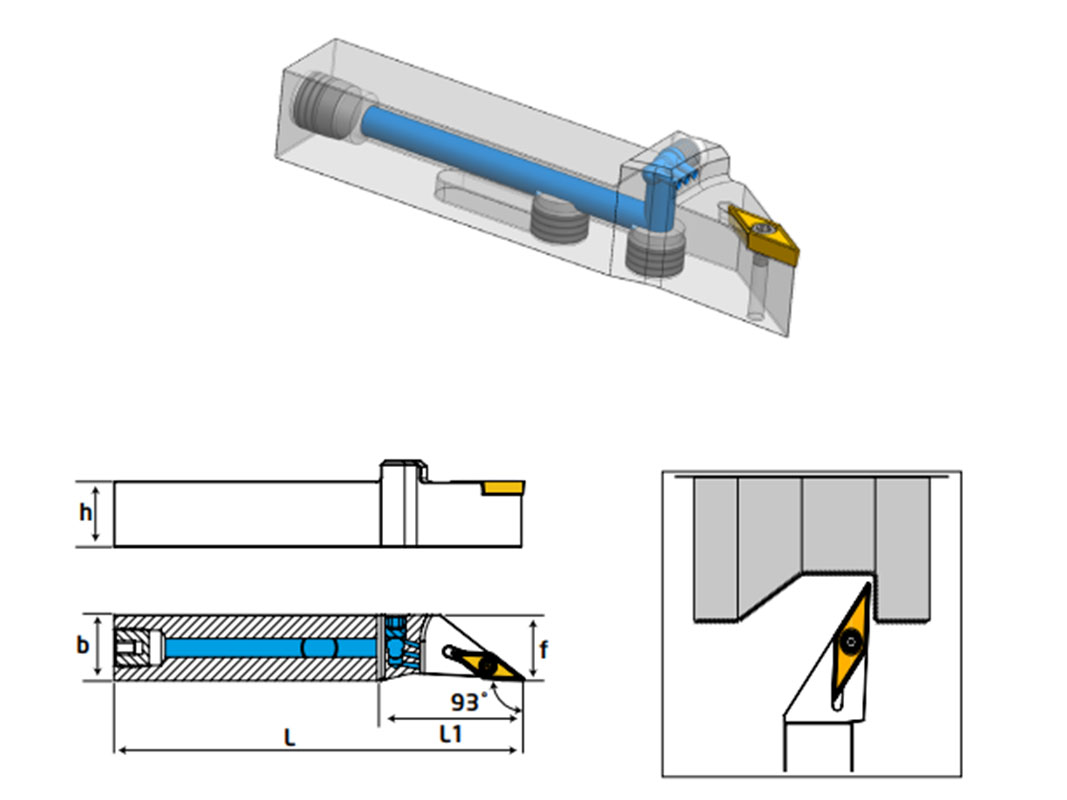

Engineered for repeatable results, this clamping tool matches the ISO designation SVJCL 1212 and is optimised for VCMT 1103 indexable inserts. The Holder’s 110 mm overall length and 12 mm shank dimensions deliver a compact setup that reduces overhang and vibration, improving surface finish and tool life. By combining accurate seating geometry with a defined cutting height of 32 mm, the design ensures consistent Insert positioning and reliable radial clearance, which contributes directly to predictable machining outcomes.

Optimised Chip Evacuation and Secure Clamping

Built-in Internal Cooling guides coolant close to the cutting edge to support chip control and temperature management during continuous turning operations. The tool is configured for left-hand cutting and features a 93° Cutting Angle that balances cutting forces and stability. Fastening is specified with a Torx T8 interface and screw size M2.5x6.5, enabling secure clamping of VCMT inserts and straightforward assembly when replacing Inserts or adjusting the toolholder.

Suitable Applications and Who Benefits

Workshops performing precision turning, toolroom setups and light production runs will gain from the compact footprint and insert compatibility of this Holder. The product is suited for operations that require left-hand turning or specific fixture orientations. Shop technicians and process engineers benefit from quick insert changes and the Holder’s predictable geometry, which simplifies setup and reduces downtime. The compact shank size makes it particularly useful where space or turret clearance is limited.

Practical Durability and Setup Advice

The Holder’s dimensions and mechanical interfaces are chosen for robustness in daily use: a consistent clamping interface and standardised screw drive support repeatable assembly. For best results, pair the tool with VCMT 1103 grade inserts matched to the workpiece material; correct insert grade selection reduces wear and improves surface quality. If additional technical data or setup recommendations are required, METAV Werkzeuge offers expert consultation and can assist with matching insert grades or mounting procedures.

We recommend the Teknik Makina Turning Holder (SVJC for VCMT Indexable Inserts) for reliable left-hand turning—contact METAV Werkzeuge for individual technical advice at info@metav-werkzeuge.com or call +49 2822 7131930.

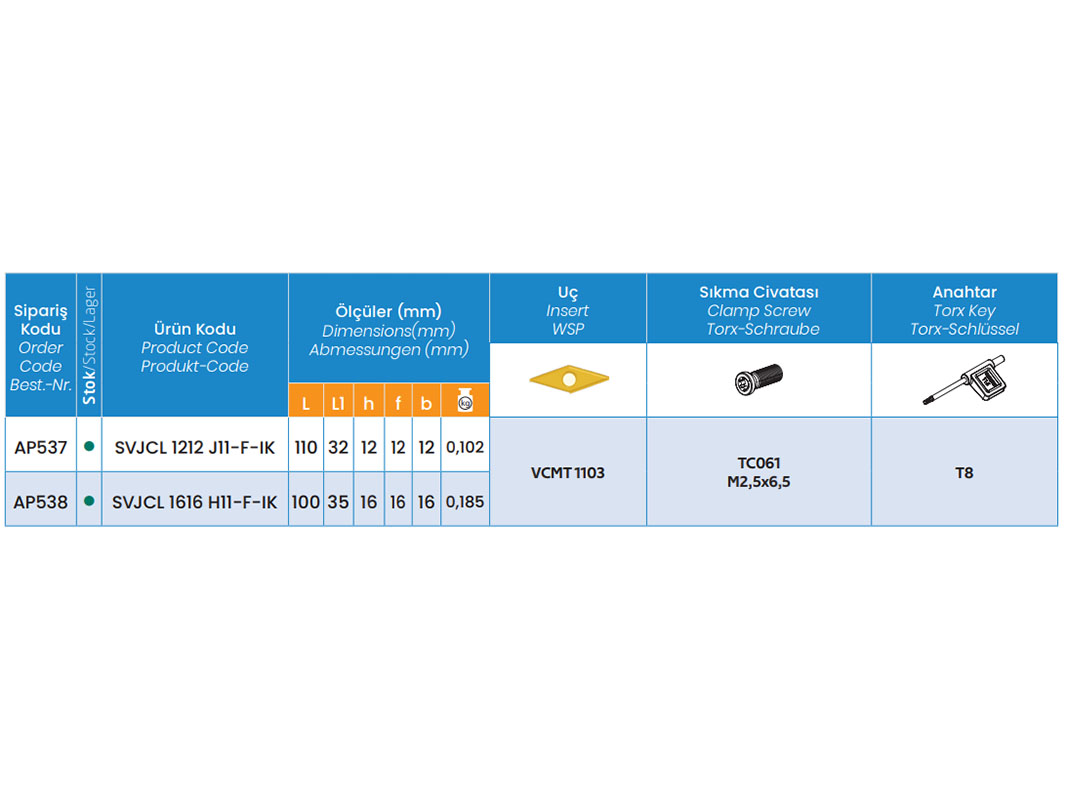

Technical Specifications

• Bezeichnung: Klemmhalter / Turning Holder (SVJC for VCMT Indexable Inserts)
• Marke / Manufacturer: Teknik Makina
• SKU: AP537TM
• Compatible Inserts: VCMT 1103
• ISO Designation: SVJCL 1212
• Overall Length: 110 mm
• Total Height: 12 mm
• Shank Width: 12 mm
• Cutting Head Width: 12 mm
• Cutting Height: 32 mm
• Cutting Direction: Left
• Cutting Angle: 93°
• Internal Cooling: Yes
• Torx Key: T8
• Torx Screw Specification: M2,5x6,5
• Drill Holder Reference: J11-F-IK
• Weight: 0.1 kg
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkei, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

Is the Turning Holder compatible with VCMT 1103 inserts?
Yes, the Turning Holder from Teknik Makina is designed specifically for use with VCMT 1103 indexable inserts and seats them according to the SVJCL 1212 interface for secure clamping.

Can this holder be used for right-hand turning applications?
The Turning Holder (SVJC for VCMT Indexable Inserts) is specified for left-hand cutting; for right-hand operations, please consult METAV Werkzeuge to identify an appropriate counterpart.

Does the Turning Holder include internal coolant capability?
The Teknik Makina Turning Holder supports Internal Cooling to direct coolant toward the cutting edge, improving chip evacuation and thermal control during machining.

What tools are required for insert clamping and replacement?
Assembly and Insert fastening use a Torx T8 drive and screw size M2.5x6.5; these specifications ensure safe and repeatable clamping when servicing the holder.

Need help selecting the right insert or setup for the Turning Holder?
If you are uncertain whether this Turning Holder meets your requirements or if you need further technical details, METAV Werkzeuge provides competent advice—contact info@metav-werkzeuge.com or call +49 2822 7131930.
