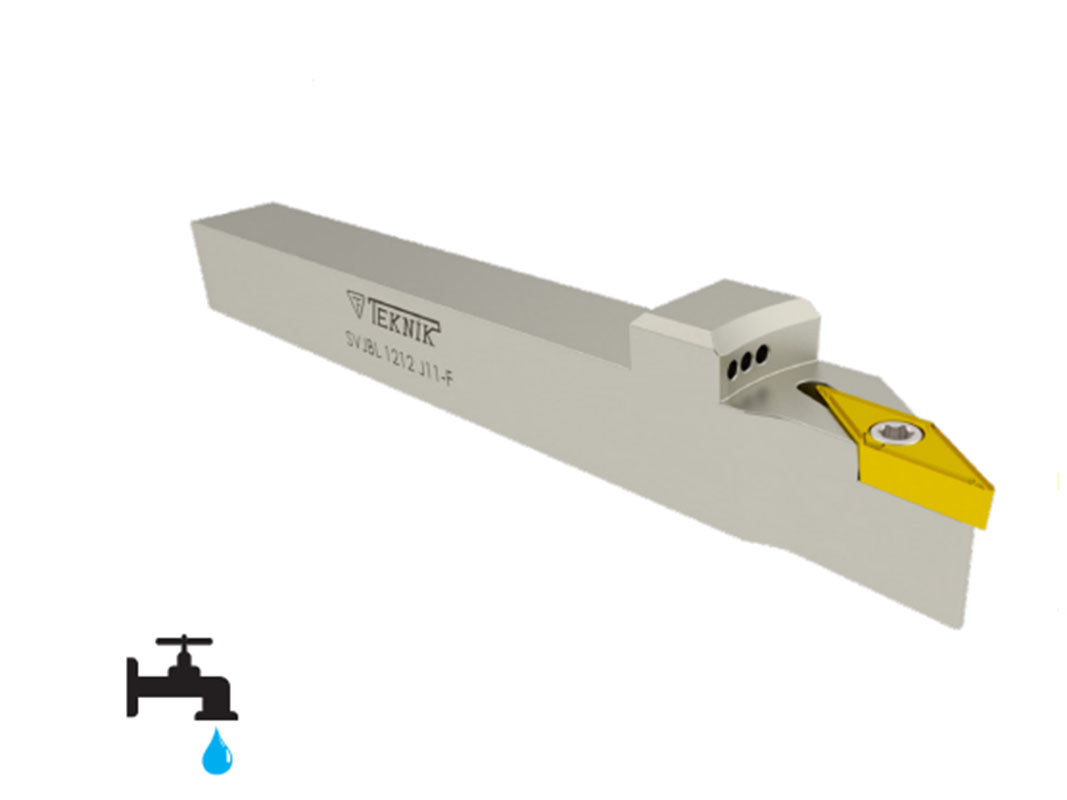

Klemmhalter — SVJB for VBMT Indexable Inserts

The Klemmhalter SVJB for VBMT Indexable Inserts secures VBMT 1103 Inserts for left-hand turning operations, offering internal coolant and a robust 12 mm clamping interface for repeatable, shop-floor performance.

• 12 mm Clamping Width
• Internal Coolant for Efficient Cooling
• Compatible with VBMT 1103 Inserts
• Left-hand Cutting Direction, 93° Cutting Angle
• Torx Schraube M2,5x6,5 and Torx Schlüssel T8

Compact Design that Keeps Inserts Stable under Load

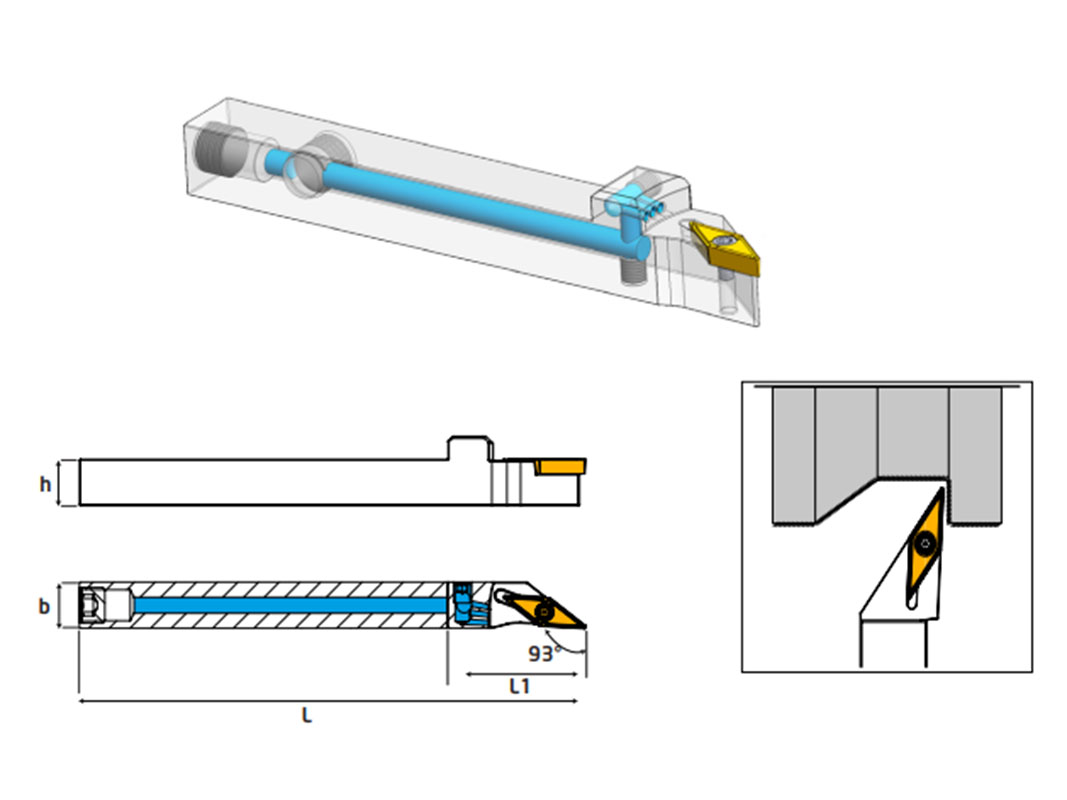

The holder is engineered with a 12 mm Clamping Width and an ISO designation of SVJBL 1212, which provides a solid contact surface for VBMT-style Inserts. This short, rigid design reduces chatter and maintains cutting geometry even during repetitive turning cycles. Thanks to the 93° Cutting Angle and a controlled Schneidenhöhe of 32 mm, the toolholder supports consistent chip formation and predictable cutting forces, promoting longer Insert life and fewer setup adjustments for machine operators.

Internal Coolant for Cooler Cutting and Cleaner Chips

Equipped with Internal Coolant, this Klemmhalter directs coolant close to the cutting edge, improving heat dissipation and Chip Evacuation in continuous turning tasks. That targeted cooling reduces thermal wear on the Insert and helps preserve the cutting edge, which in turn lowers tooling costs over time. In processes where material build-up or high temperatures can compromise surface finish, Internal Coolant contributes directly to repeatable part quality and fewer reworks.

Simple Mounting and Service with Standard Fasteners

Assembly and maintenance are straightforward: the clamping element is secured with a Torx Schraube M2,5x6,5 (fastening screw) using a Torx Schlüssel T8 (drive key), making routine insert changes quick and reliable. The holder’s Overall Length of 110 mm and compatibility with shank designation J11-F-IK mean it integrates easily into common tool posts. Clear access to the fixing screw aids safe handling and fast replacement cycles, so downtime is reduced and workshop throughput improves.

Designed Specifically for VBMT Inserts in Turning Applications

This toolholder has been optimised for VBMT 1103 Inserts and left-hand Cutting Direction work, making it well suited for production and maintenance workshops performing external turning and finish passes. The combination of rigid geometry, targeted cooling and standardised fastening supports precise repeatability across batches. For customers seeking a robust, serviceable clamping solution that pairs with established VBMT Grades, this Klemmhalter delivers a practical balance of performance and ease of use.

Secure the Teknik Makina Klemmhalter AP558TM through Metav Werkzeuge for dependable clamping and local technical advice — contact info@metav-werkzeuge.com or call +49 2822 7131930 for specification support and rapid supply.

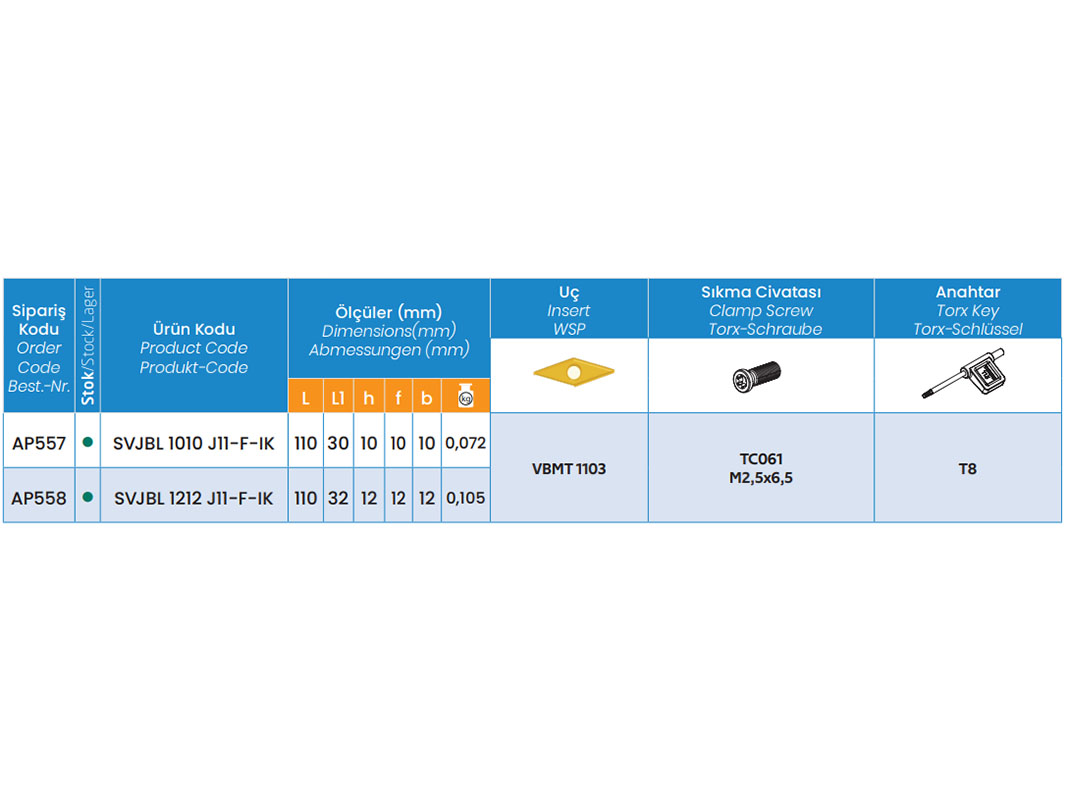

Product Details

• Article number: AP558TM
• Brand: Teknik Makina
• Designation: SVJB for VBMT Indexable Inserts
• ISO Designation: SVJBL 1212

Facts

• Clamping width: 12 mm
• Height: 12 mm
• Cutting head width: 12 mm
• Cutting height: 32 mm
• Total height: 12 mm
• Overall length: 110 mm
• Cutting angle: 93°
• Weight: 0.11 kg

Features

• Internal coolant: Yes — enhances cooling and chip evacuation
• Suitable for: VBMT 1103 inserts
• Cutting direction: Left
• Torx Schraube: M2,5x6,5 (fastening screw)
• Torx Schlüssel: T8 (drive key)
• Shank designation: J11-F-IK

FAQ

What Inserts fit this holder?
The Klemmhalter from Teknik Makina is designed for VBMT 1103 Inserts; the SVJB design secures the insert form and ensures correct cutting geometry for turning operations.

Does this toolholder provide coolant to the cutting edge?
Yes, the AP558TM Klemmhalter features Internal Coolant to support temperature control and Chip Evacuation, improving Insert life and surface finish.

Which fasteners are required for assembly?
Assembly uses a Torx Schraube M2,5x6,5 tightened with a Torx Schlüssel T8; this standard fastening simplifies maintenance and keeps changeover times low.

Is the holder compatible with standard shanks?
The product lists shank designation J11-F-IK and an Overall Length of 110 mm, allowing straightforward integration into common tool posts used in turning setups.

What cutting direction is supported?
This holder is specified for left-hand cutting direction, which suits left-hand turning applications and related tooling arrangements.
