38mm Vertical Clamp With Massive Holding Arm, 750N Press Force, 1000N Holding Force - Kukamet

Benefit from the combination of a massive holding arm, a compact 38 mm arm and dependable clamping power for consistent fixture performance. Order the vertical clamp 213 directly via Metav Werkzeuge or ask our consultants if needed.

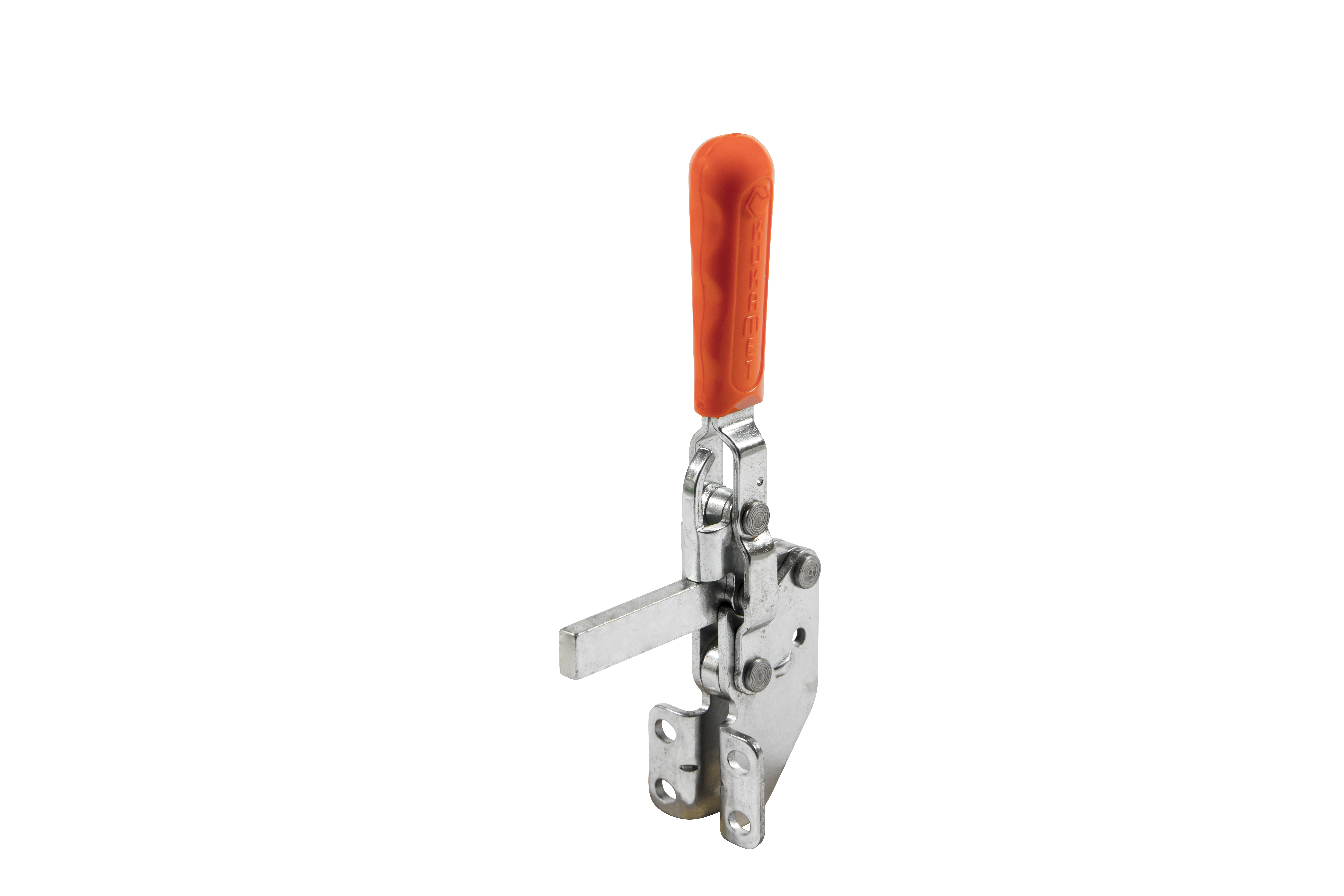

Vertical clamp 213 by Kukamet — compact design with robust holding arm

Vertical clamp 213 is a vertical toggle clamp designed for secure holding and repeatable positioning in limited spaces, suitable for jigs, fixtures and light production tasks.

• Massive holding arm 38 mm
• Max. holding force 1,000 N
• Clamping force up to 750 N
• Right‑angle base for secure mounting

Robust clamping where space is tight

The massive holding arm provides stability in confined set-ups while the compact footprint keeps the clamp unobtrusive on the workbench. A 38 mm arm gives a favourable contact surface that helps distribute load and reduces workpiece deformation during clamping. The blackened finish offers a basic layer of corrosion resistance, ensuring that the fixture retains its appearance and function in standard workshop environments. This combination of robustness and compactness supports reliable repeatability for small-batch production and assembly tasks.

Measured clamping power for reproducible results

Specified forces ensure predictable clamping behaviour: a 1,000 N holding force and up to 750 N clamping force enable secure fixation of parts during machining, assembly or inspection. Newton values describe the mechanical force directly; for practical orientation, these figures suit light to medium clamping demands where consistent pressure and positional stability are required. The clamp’s mechanism converts operator input into repeatable holding force, reducing set-up variability and helping to maintain production quality.

Fast fitting and maintenance-friendly design

The right‑angle mounting foot simplifies integration into existing fixtures and tooling plates, allowing the clamp to be bolted down rigidly for direct load transfer. At just 0.151 kg, the component is lightweight yet sturdy, easing handling during jig assembly and replacement. The straightforward geometry of the toggle mechanism permits quick cleaning and inspection; wear parts can be monitored visually and replaced when required, contributing to predictable maintenance intervals and lower downtime in day-to-day use.

For tailored clamping solutions from Kukamet and reliable supply from Metav Werkzeuge, contact Metav Werkzeuge for a bespoke quotation or technical guidance at info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: B213-1-D-C1
• GTIN: 8682843522400
• Designation: Vertical clamp 213

Facts

• Arm length: 38 mm
• Weight: 0.151 kg
• Clamping force: 750 N
• Holding force: 1,000 N
• eClass: 21041717
• ETIM: EC011973

Special features

• Blackened finish
• Massive holding arm (massiver_arm)
• Right‑angle foot mounting (Winkelfuß)
• Brand: Kukamet

FAQ

What maximum holding force does this clamp provide?
The Kukamet vertical clamp 213 offers a maximum holding force of 1,000 N as specified for secure part retention.

Which clamping force can be expected during operation?
Clamping force is rated up to 750 N, giving consistent pressure suitable for light to medium tasks with reproducible results.

How is the clamp mounted to a fixture?
The clamp is fitted using its right‑angle base, allowing bolted attachment to tooling plates or jig frames for rigid installation.

What finish does the clamp have and how does it affect corrosion resistance?
The component has a blackened finish, which provides basic surface protection and a durable appearance under normal workshop conditions.

Is the clamp suitable for production jigs and assembly fixtures?
Yes, the compact footprint, robust arm and repeatable force make the clamp well suited to jigs, fixtures and light production assembly.

Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
