108mm Vertical Clamp With Angle Foot, 1.2kN Push / 1.4kN Hold, Massiv Arm - Kukamet

Compact 108 mm arm and high holding force up to 1,400 N provide secure clamping in confined setups; the angled-foot mounting and robust black oxide finish ensure stable, low-maintenance operation. Order the Vertical Clamp 213 directly via Metav Werkzeuge or ask our consultants if needed.

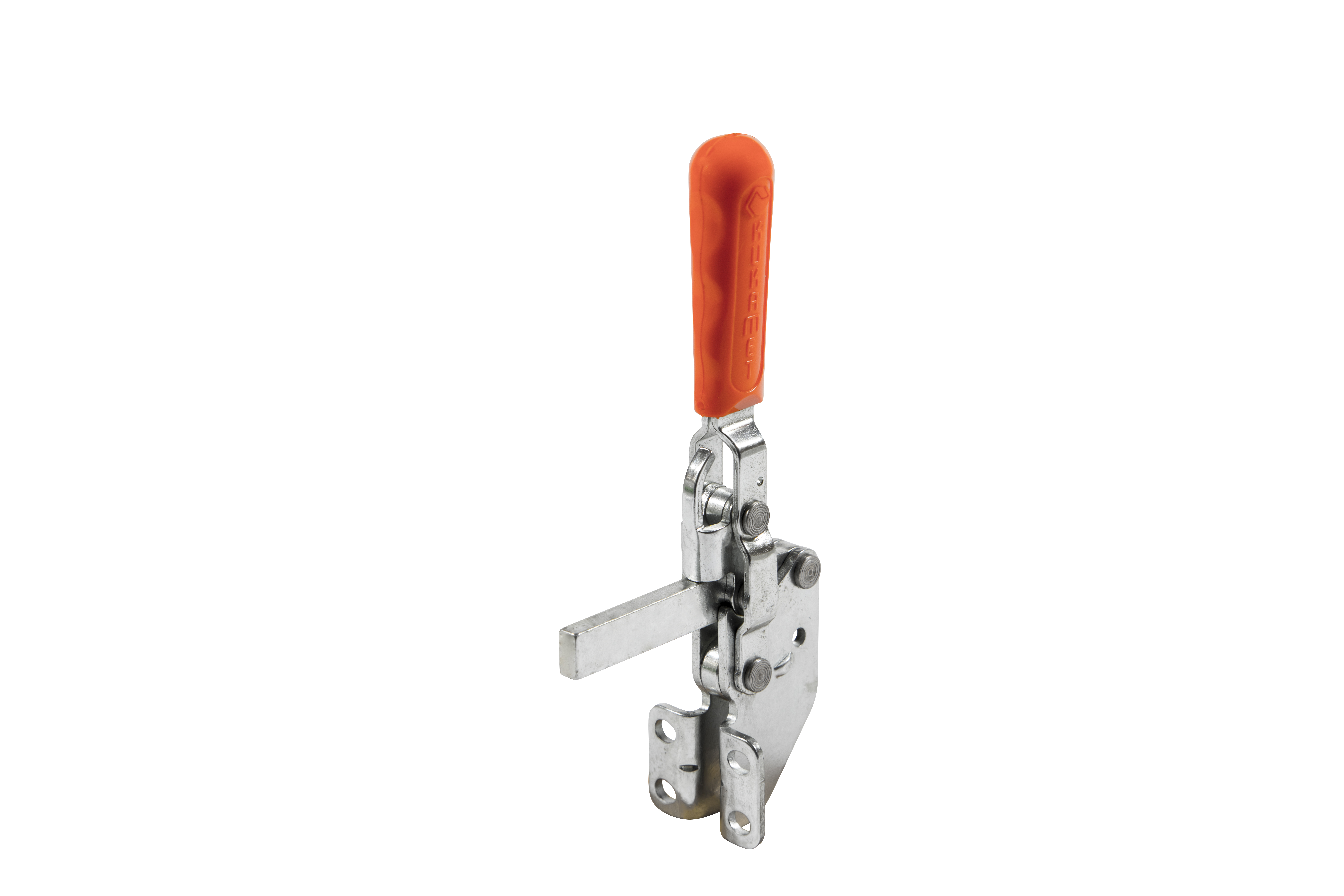

Vertical Clamp 213 – Compact angled-foot clamp with 108 mm arm and 1,400 N holding force (Kukamet)

The Vertical Clamp 213 is a compact clamping device designed for integration into jigs and fixtures where space is limited and reliable retention is required

*Compact 108 mm arm length *Angled-foot mounting for stable positioning *Robust black oxide finish *High holding force up to 1,400 N

Space-saving design with confident clamping power

The Vertical Clamp 213 combines a 108 mm clamping arm with a high holding force of 1,400 N, delivering stable retention without demanding large installation space. The compact dimensions permit straightforward placement in fixtures, allowing machine builders and jig makers to maintain an efficient work envelope. The difference between the clamp’s static holding force and its dynamic pressing capacity is deliberate: the unit secures components under load while supporting moderate actuation forces during operation, contributing to consistent part positioning and reduced rework.

Stable mounting and a finish made for daily workshop use

Mounting is via an angled-foot base that offers a secure attachment point even on slightly irregular surfaces; this reduces play and improves repeatability in repetitive clamping cycles. The clamp’s massive holding arm adds rigidity where it matters, and the black oxide finish provides basic corrosion protection and a non-reflective surface that is beneficial in production environments. These design choices lower the need for frequent maintenance and preserve the clamp’s functional accuracy over time, supporting uninterrupted production runs.

Easy integration, light installation and reliable forces for fixtures

Weighing just 0.266 kg, the unit is light enough for simple fixture assembly while robust where required. The Vertical Clamp 213 supports a maximum pressing force of 1,200 N, enabling firm engagement during actuation, and its concise form factor aids in modular jig design. Clear technical values and a compact profile make it straightforward to specify for medium-duty clamping tasks, offering a predictable mechanical behaviour that streamlines fixture design and shortens commissioning time.

Contact Metav Werkzeuge for tailored advice on integrating the Kukamet Vertical Clamp 213 into existing fixtures or to request detailed specifications from the Emmerich quality filter team

Technical data

• Article number: B213-2-D-C2
• GTIN: 8682843522448
• Manufacturer: Kukamet
• eClass: 21041717
• ETIM: EC011973

Facts

• Arm length: 108 mm
• Holding force max: 1,400 N
• Pressing force max: 1,200 N
• Weight: 0.266 kg

Special features

• Angled-foot mounting
• Massive holding arm
• Black oxide finish
• Compact vertical clamp design

FAQ

What is the arm length of this clamp?
The clamp has an arm length of 108 mm, specified for the Vertical Clamp 213 (Kukamet, SKU B213-2-D-C2).

What holding and pressing forces are specified?
The Vertical Clamp 213 provides a maximum holding force of 1,400 N and a maximum pressing force of 1,200 N for secure fixture retention.

How is the clamp mounted in a fixture?
Mounting is via the angled-foot base; the angled-foot design of the Vertical Clamp 213 improves positional stability when fastened to plates or subframes.

What finish and durability features does the clamp have?
The unit is supplied with a black oxide finish that reduces surface reflectivity and offers basic protection against wear and corrosion for workshop environments.
