218.5mm Vertical Clamp With Angle Base, Massive Holding Arm, 4.5kN Thrust, 5kN Hold - Kukamet

Combine robust clamping performance with a compact footprint: the 213 Vertical Clamp delivers a massive holding arm, up to 5,000 N static holding force and a 218.5 mm reach for secure fixtures. Order the clamp directly via Metav Werkzeuge or consult our specialists for application advice.

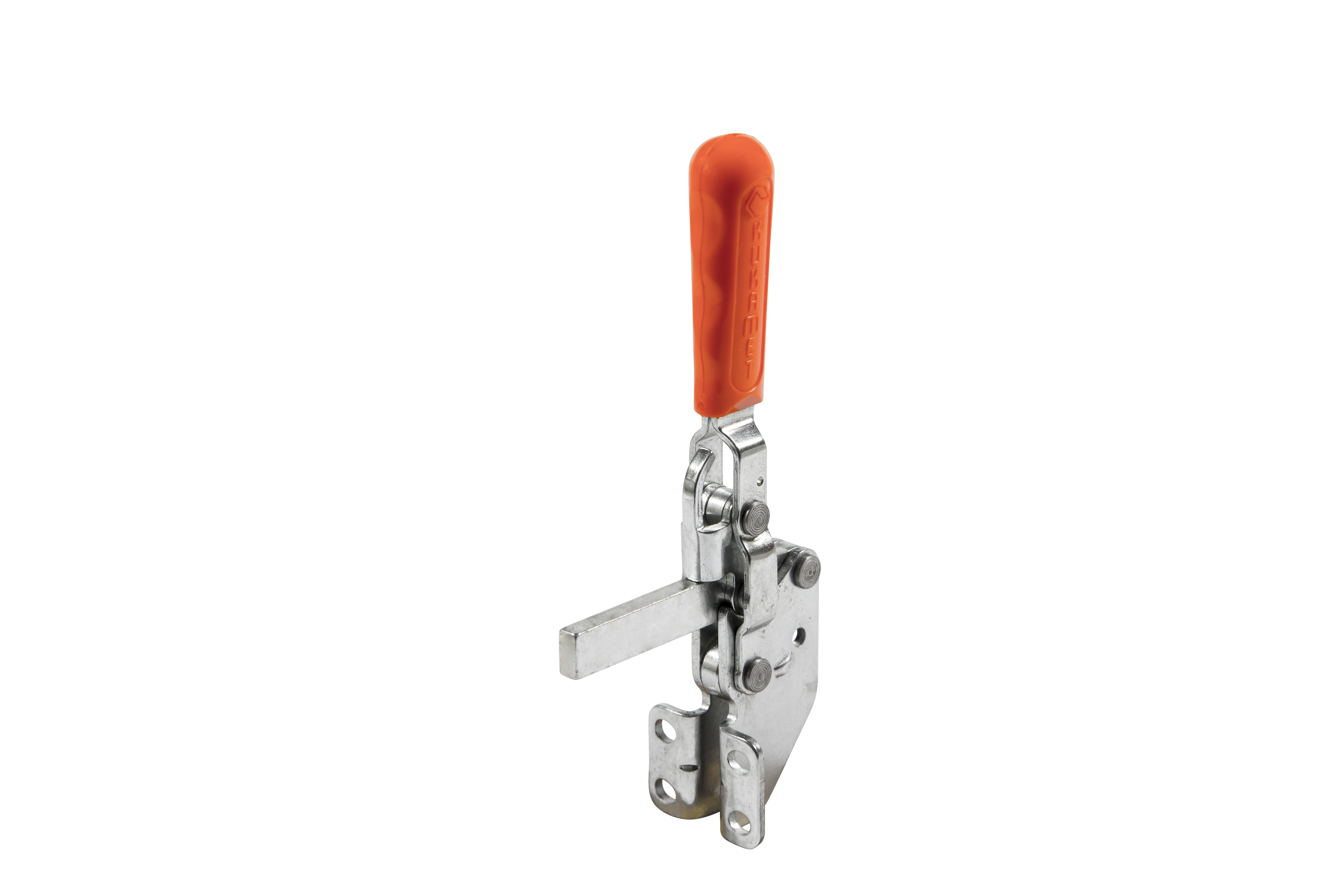

213 Vertical Clamp – Vertical lever clamp with 5,000 N holding force and 218.5 mm arm (Kukamet)

The 213 Vertical Clamp is a vertical lever clamp designed for secure fixturing in workshop and light industrial applications, featuring a solid holding arm and a right‑angle mounting base for fixed installation

• Robust solid holding arm for heavy loads
• Up to 5,000 N static holding force
• 218.5 mm reach for deeper fixtures
• Right-angle base for fixed mounting

Consistent, measurable clamping for repeatable processes

The clamp provides clearly defined mechanical performance: a holding force of 5,000 N and a closing force of 4,500 N, values that translate directly into reliable workholding during machining and assembly. These figures indicate the permissible static and actuation loads, allowing planners to calculate fixture safety margins and cycle security. The solid holding arm reduces deformation under load, so clamping remains consistent across repetitive operations.

Small footprint, flexible installation for workshop integration

With a reach of 218.5 mm and a right‑angle mounting base, this clamp integrates into compact fixture layouts while keeping the working envelope accessible. The right‑angle base permits secure bolting to machine tables or fixture plates without additional adapters. At approximately 1.836 kg, the unit balances heft for stability with manageable handling during assembly of jigs and fixtures.

Durable finish and simple lever action for low maintenance

A black oxide finish provides surface protection and reduces glare in a workshop environment, while the lever‑type actuation offers rapid clamp/unclamp cycles for high throughput. The combination of a massive holding arm and solid mechanical construction reduces wear on moving parts, supporting longer service intervals and predictable maintenance planning. Where quick, repeatable clamping is required, the lever mechanism preserves cycle time without sacrificing grip.

Designed for reliable workshop performance

Engineered as a vertical acting clamp, the device suits general clamping tasks in metalworking and workshop contexts where repeatability and clear force ratings matter. The compact design and robust components support use in fixtures, assembly stations and prototyping benches, providing a pragmatic solution for production and repair environments that prioritise measurable results over guesswork.

Select the Kukamet 213 Vertical Clamp for reliable, repeatable clamping — contact Metav Werkzeuge for application-specific advice or to arrange purchase via info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• SKU: B213-5-D-C3
• GTIN: 8680731508086
• Manufacturer: Kukamet

Core specifications

• Arm length: 218.5 mm
• Holding force: 5,000 N
• Closing force: 4,500 N
• Weight: 1.836 kg
• eClass: 21041717
• ETIM: EC011973

Special features

• Mounting type: Right-angle base
• Finish: Black oxide
• Massive holding arm
• Lever clamp (vertical actuation)
• Category: Clamping devices

FAQ

What maximum holding force does the clamp provide? The 213 Vertical Clamp offers a maximum static holding force of 5,000 N and a closing (actuation) force of 4,500 N for predictable workholding.

How is the clamp mounted? Mounting is via a right‑angle base enabling secure bolting to fixture plates and machine tables.

What is the effective reach of the clamping arm? The clamping arm extends 218.5 mm, providing clearance for deeper or recessed workpieces.

What is the unit weight and how does that affect fixture design? Weight is approximately 1.836 kg; the mass supports fixture stability while remaining manageable for assembly.

What finish and construction features support durability? A black oxide finish and a solid, massive holding arm provide surface protection and reduced deformation under load.

Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
