Take advantage of the precision design and compact 0–20 mm measuring range for reliable weld inspection; the matt‑chrome scale and analogue vernier ensure clear readings and long service life. Order the gauge directly via Metav Werkzeuge or consult our advisors for application guidance. Welding Seam Gauge M201.161 — Precision gauge, 0–20 mm, special steel (Metav IndustryLine) The Welding Seam Gauge M201.161 is a precision gauge for measuring flat and corner weld seams, designed for workshop and fabrication quality checks. Precision 0–20 mm range Matt‑chrome scale and vernier Includes 60°/70°/80°/90° angle set Analogue vernier with 0.1 mm reading Reliable, compact measurement for everyday workshop checks The gauge offers a compact 0–20 mm measuring range in a precision execution that fits routine inspection workflows. Its short profile and low weight make it easy to handle during repetitive checks, while the analogue vernier with a 0.1 mm reading provides an immediately interpretable result without reliance on batteries or electronics. For fabricators and maintenance teams this translates into faster cycle times during visual and dimensional weld assessment and fewer interruptions due to instrument downtime. The robust finish keeps the scale legible under workshop conditions and supports consistent measurement practice. Clear geometry options to assess weld form and penetration Equipped with dedicated angle references at 60°, 70°, 80° and 90°, the tool allows direct comparison of bead geometry against specification tolerances. These fixed gauge angles simplify common acceptance checks for fillet welds and corner joints, reducing subjective interpretation and supporting reproducible decisions during quality control. The matt‑chrome scale and vernier reduce reflections under workshop lighting, improving readout reliability and operator confidence when documenting conformity. Durable construction and straightforward handling Constructed from special steel with a matt‑chrome finish on both scale and vernier, the gauge balances wear resistance with clear graduations for long‑term readability. Weighing approximately 0.1 kg and with a nominal length of 100 mm, the instrument is easy to store and manoeuvre in confined assemblies or on jigged components. The design focuses on pragmatic precision rather than micro‑metrology: it is ideally suited for standard workshop inspection tasks where rapid, trustworthy checks of weld profile and size are required. Choose the Metav IndustryLine Welding Seam Gauge M201.161 for dependable weld inspection in production and maintenance environments — contact Metav Werkzeuge for technical advice and current availability Technical Data Article number: M201.161 GTIN: 4054469100814 eClass: 21170207 Tariff number: 90173000 Facts Measuring range: 0–20 mm Reading (vernier): 0.1 mm Length: 100 mm Weight: 0.1 kg Analogue instrument: yes Special features Scale and vernier matt‑chrome plated Material: special steel Precision angles: 60°, 70°, 80°, 90° Designed for flat and corner weld seam measurement Category: precision gauge for workshop inspection FAQ What is the measuring range of this gauge? The Welding Seam Gauge M201.161 has a measuring range of 0–20 mm, suitable for close‑range weld inspections. How fine is the reading on the vernier? The analogue vernier provides a 0.1 mm reading, giving clear, manual resolution for standard workshop tolerance checks. Which weld types can be assessed with this gauge? The gauge is intended for flat and corner weld seams, using fixed angle references to evaluate bead geometry and basic size criteria. Is the instrument robust enough for daily workshop use? Yes, the M201.161 is made from special steel with a matt‑chrome finish designed to withstand routine workshop handling while keeping graduations legible. Does the product include an official calibration certificate? The gauge is supplied in factory condition; no ISO 17025 certificate is included with this item unless otherwise specified at purchase. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

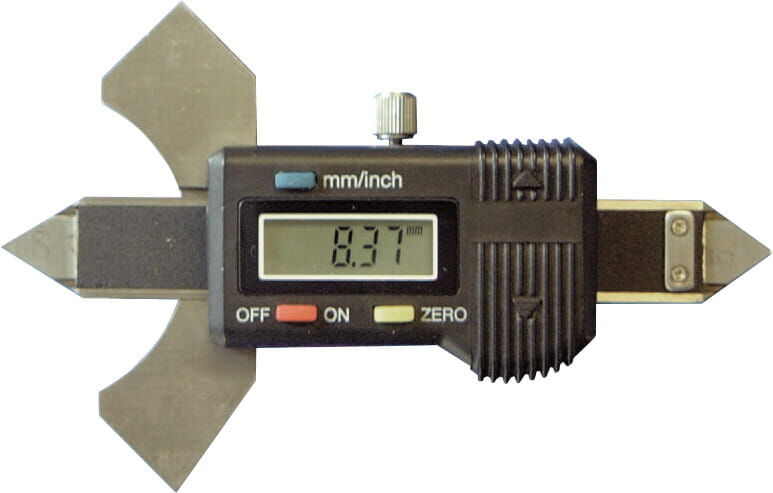

Take advantage of the combination of compact measuring range, a clear digital display and four preset angle checks for efficient weld inspection. The fast readout and lightweight design keep inspection cycles short while preserving accuracy; order the gauge directly via Metav Werkzeuge or ask the consultants for application advice. Digital weld gauge M240.161 – digital weld seam gauge, 0–20 mm, preset 60°/70°/80°/90° (Metav IndustryLine) The Digital weld gauge M240.161 is a compact, handheld measuring instrument intended for rapid assessment of fillet and corner welds up to 0–20 mm, combining a user-friendly digital display with selectable angle references for consistent quality checks across production runs. 0–20 mm measuring range Digital display with mm/inch and zero Four preset angles 60° / 70° / 80° / 90° Lightweight 0.1 kg for handheld use Precise small‑scale measurement that shortens inspection time With a measuring span of 0–20 mm and a display resolution of 0.01 mm, this gauge is optimised for small welds and detailed seam work where rapid, repeatable readings matter. The short measuring range reduces elastic deflection and improves handling, making the instrument particularly useful for workshops and inspection benches that require reliable checks on flat welds and corner welds. The compact form factor and low mass support single‑handed operation, so inspection throughput increases without sacrificing measurement clarity. Clear digital readout and angle presets for consistent results The integrated digital display offers straightforward functions — ON/OFF, mm/inch conversion and a zero‑set key — which reduce transcription errors and speed up routine checks. Built‑in angle references at 60°, 70°, 80° and 90° allow direct comparison to common weld geometries without additional tools; this simplifies conformity checks during welding and post‑weld inspection. The device converts physical measurement into immediate, interpretable data, supporting process control and easier documentation of non‑conformances. Practical workshop benefits and reliable supply chain backing Designed for frequent use on the shop floor, the gauge combines a durable feel with ergonomic handling that encourages correct measurement technique and steady results. The modest weight of 0.1 kg and portable format mean the instrument can be moved between stations or taken to larger assemblies as required. Purchasing through Metav IndustryLine brings the additional advantage of a European distribution and a quality filter in Emmerich, which helps to ensure consistent availability and trusted delivery for production and maintenance teams. For application guidance or to secure the Metav IndustryLine Digital weld gauge M240.161 for your inspection workflow, contact Metav Werkzeuge directly by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 — consultants are available to advise on suitability and integration Technical Data Article number: M240.161 GTIN: 4054469112947 Brand: Metav IndustryLine Category: Gauges / Measuring tools Facts Measuring range: 0–20 mm Resolution: 0.01 mm Weight: 0.1 kg Length: 100 mm Special features Digital display with ON/OFF, mm/inch and zero buttons Preset angles: 60°, 70°, 80°, 90° Intended for measuring flat welds and corner welds Handheld, compact design FAQ What weld sizes can be measured with this gauge? The Digital weld gauge M240.161 measures weld dimensions up to 20 mm, making it suitable for small to medium fillet and corner weld inspections. Does the display offer metric and imperial units? Yes, the gauge provides a mm/inch conversion on its digital display to support both measurement systems. How fine is the resolution of the instrument? The instrument shows measurements with a 0.01 mm resolution, which supports accurate readings for workshop quality control. Is the gauge lightweight enough for handheld inspections? At 0.1 kg, the gauge is designed for handheld use and easy transfer between inspection points. Which angles are available for quick reference on the tool? The instrument includes preset checks for 60°, 70°, 80° and 90°, facilitating direct comparison to common weld geometries. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
