Benefit from a compact yet robust clamping solution: the holder’s 16 mm profile and 100 mm overall length combine to improve tool stability and reduce overhang, while compatibility with DC-- 11T3 inserts keeps tooling simple and cost-effective — order directly via Metav Werkzeuge or ask our product specialists for guidance.

Clamping holder SDNCN 1616 — 100 mm overall length, 16 mm height | Teknik Makina

The Clamping holder SDNCN 1616 is a compact toolholder engineered for use with DC-- 11T3 indexable inserts, offering a stable interface for turning and light grooving applications.

• Compact 16 mm holder height
• 100 mm overall length for reduced overhang
• Compatible with DC-- 11T3 indexable inserts
• 62.5° nominal cutting angle for consistent engagement
• Lightweight construction at 0.196 kg

Secure clamping that supports reliable machining

The SDNCN 1616 toolholder provides secure clamping for DC-- 11T3 indexable inserts, ensuring repeatable positioning of the cutting edge. The specified 62.5° cutting angle promotes a controlled chip flow and consistent contact geometry, which helps to maintain surface finish and dimensional accuracy during series production. For workshop planners, the predictable engagement geometry reduces set-up variation and supports stable cutting conditions across multiple parts.

Compact footprint for improved toolstack stability

With a 16 mm holder height and a 100 mm overall length, this clamping solution is designed to reduce overhang and improve rigidity in compact turning stations. The holder’s moderate mass (approx. 0.196 kg) lowers centrifugal effects in high-speed operations and simplifies balance considerations for rotary setups. As a result, cycle-time-sensitive processes benefit from reduced vibration and longer insert life, contributing to measurable productivity gains in day-to-day production.

Practical specifications that aid quick integration

The holder’s 8 mm cutting-head width and 25 mm cutting height specification provide clear guidance for tool layout and insert selection, enabling fast integration into existing toolchains. The ISO designation SDNCN 1616 and the shank reference H11 facilitate straightforward matching with standard toolpost systems and spare-part lists. By standardising on compatible components, procurement and maintenance become more efficient, lowering administrative overhead and downtime between tool changes.

For procurement and technical advice on the Teknik Makina SDNCN 1616 clamping holder, contact Metav Werkzeuge — procurement-ready stock and application support available at info@metav-werkzeuge.com or +49 2822 7131930

Technical Data

• Article number: D120TM
• Manufacturer: Teknik Makina
• Designation: SDNCN 1616 for DC-- indexable inserts
• SKU: D120TM
• Shank designation: H11

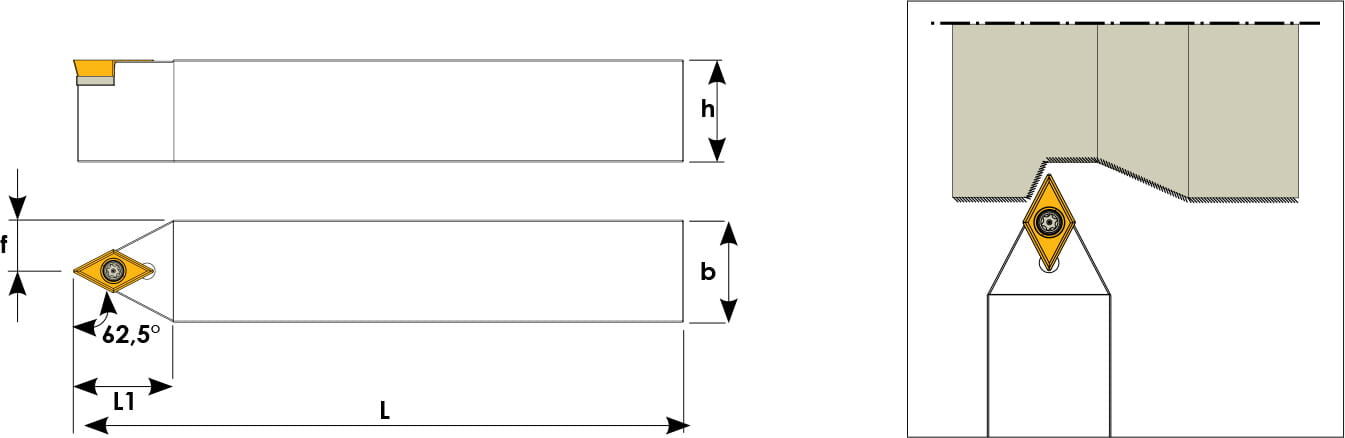

Data

• Holder height: 16 mm
• Holder width: 16 mm
• Cutting-head width: 8 mm
• Cutting height: 25 mm
• Overall length: 100 mm
• Cutting angle: 62.5°
• Weight: 0.196 kg

Special features

• Fits DC-- 11T3 indexable inserts
• ISO designation SDNCN 1616
• Suitable for turning and light grooving operations

FAQ

What inserts are compatible with this clamping holder?
The clamping holder is specified for use with DC-- 11T3 indexable inserts; the SDNCN 1616 geometry matches the insert seat and cutting-angle requirements.

How does the 16 mm holder height affect stability?
A 16 mm profile reduces overhang and increases rigidity compared with taller holders, improving stability for finishing and medium-duty turning operations.

Is the SDNCN 1616 suitable for high-speed turning?
The holder’s compact mass (approx. 0.196 kg) and reduced overhang support improved balance in higher-speed applications, provided machine and insert limits are observed.

Which ISO designation should be referenced for spare parts lists?
Use the SDNCN 1616 designation and the SKU D120TM when ordering spares or matching holders to toolposts and inserts.

What is the nominal cutting angle and why does it matter?
The nominal 62.5° cutting angle provides consistent engagement geometry for reliable chip control and surface finish in standard turning tasks.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
