100mm SVVBN 1616 Turning Holder for VBMT 1604 Indexable Inserts, 72.5° - Teknik Makina

Turning Holder (Klemmhalter) — SVVBN for VBMT Indexable Inserts by Teknik Makina

A robust Turning Holder designed to clamp VBMT 1604 indexable inserts securely for precision turning and finishing operations.

• SVVBN 1616 design for VBMT 1604 inserts
• 100 mm overall length for stable reach
• 16 mm width and height for rigid support
• 72.5° cutting angle for consistent chip control
• Suitable for precision turning and finishing

Maximise Turning Precision with Reliable Clamping

The Turning Holder provides consistent, repeatable clamping for VBMT 1604 indexable inserts, delivering high positional stability during cuts. Its SVVBN 1616 geometry ensures correct seating of the insert and reduces micro-movements that create chatter. For workshops focused on tight tolerances, this tool holder translates insert performance into predictable part quality, making setup reproducible and reducing scrap rates.

Compact Design That Boosts Rigidity and Accessibility

With an overall length of 100 mm and a cross-section of 16 mm by 16 mm, the holder balances reach and stiffness to minimise tool deflection. The 8 mm cutting-head width concentrates support where it matters most, while the 72.5° cutting angle promotes controlled chip flow and consistent surface finishes. An indexable insert is a replaceable cutting tip; using such inserts with a stable holder reduces downtime and simplifies maintenance for less experienced operators.

Designed for Workshops and Precision Machine Shops

This clamping solution is aimed at professional users who require dependable tool performance during finishing and medium-turning operations. The H16 shank designation supports secure mounting and simple replacement routines, lowering setup times. As a result, operators gain efficiency: fewer adjustments, more parts per shift, and improved consistency across production runs. The overall construction supports both manual and CNC lathes when matched to appropriate toolposts.

Easy Handling, Low Maintenance, Proven Manufacturer Support

The holder's straightforward clamping principle allows fast insert changes and minimal tooling overhead, contributing to lower lifecycle costs. The SVVBN configuration and material choices from Teknik Makina are designed for long-term dimensional stability, which reduces frequency of regrinding or replacement of adjacent components. For complex applications or specific material challenges, the robust design simplifies troubleshooting and tool selection.

We recommend Teknik Makina’s Turning Holder for reliable, precision clamping — for expert advice and ordering, contact METAV Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 (WhatsApp +49 170 2837271).

• Bezeichnung: Klemmhalter
• Brand: Teknik Makina
• SKU: D132TM
• Suitable Inserts: VBMT 1604
• ISO Designation: SVVBN 1616
• Secondary Designation: H16

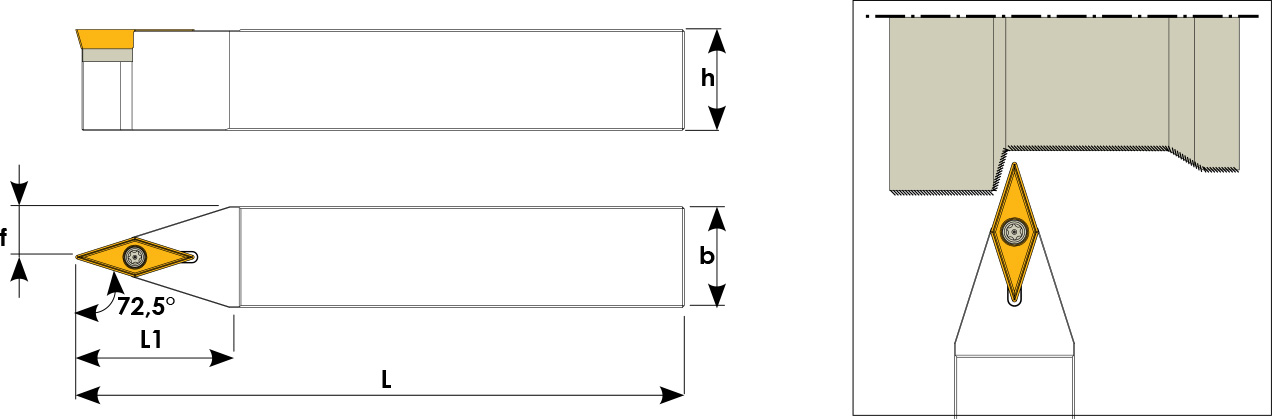

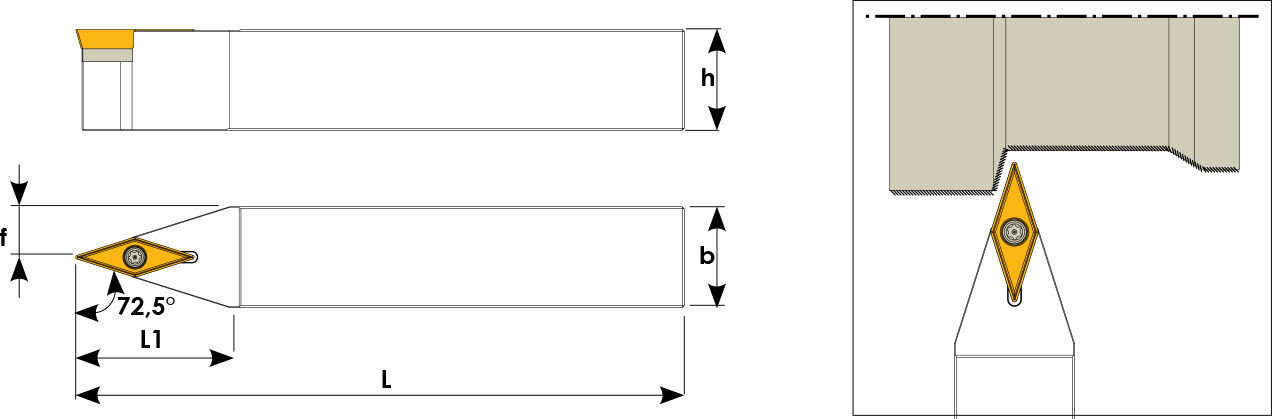

• Overall Length: 100 mm
• Width: 16 mm
• Height: 16 mm
• Cutting Head Width: 8 mm
• Cutting Angle: 72.5°
• Weight: 0.184 kg
• GTIN: 4061905153754
• Condition: new
• Availability: in Stock
• ECLASS: 21181004
• Product Type: VARIANT
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkiye, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

What inserts fit the Turning Holder by Teknik Makina?
The Turning Holder (Klemmhalter) from Teknik Makina is designed specifically for VBMT 1604 indexable inserts, ensuring secure seating and optimal cutting alignment when used with the matching insert geometry.

What are the key dimensions I should check for compatibility?
For the Turning Holder (Klemmhalter) by Teknik Makina check the overall length of 100 mm, the 16 mm width and height, and the H16 designation to confirm fit with your toolpost and machine setup.

How does the 72.5° cutting angle affect machining?
The 72.5° cutting angle on the Teknik Makina Turning Holder promotes consistent chip control and a stable cutting edge engagement, which helps achieve smoother surface finishes in finishing operations.

Where can I get technical advice or order the Turning Holder?
If you need application support or further technical data for the Turning Holder (Klemmhalter) by Teknik Makina, METAV Werkzeuge provides expert consultation — contact info@metav-werkzeuge.com, call +49 2822 7131930, or message via WhatsApp at +49 170 2837271.
