Take advantage of a compact, right-hand clamping solution that combines compatibility with VBMT 1604 inserts, a 93° cutting angle and a robust 100 mm overall length for steady turning performance. Order directly via Metav Werkzeuge or request tailored advice from our consultants for seamless integration into existing tool setups.

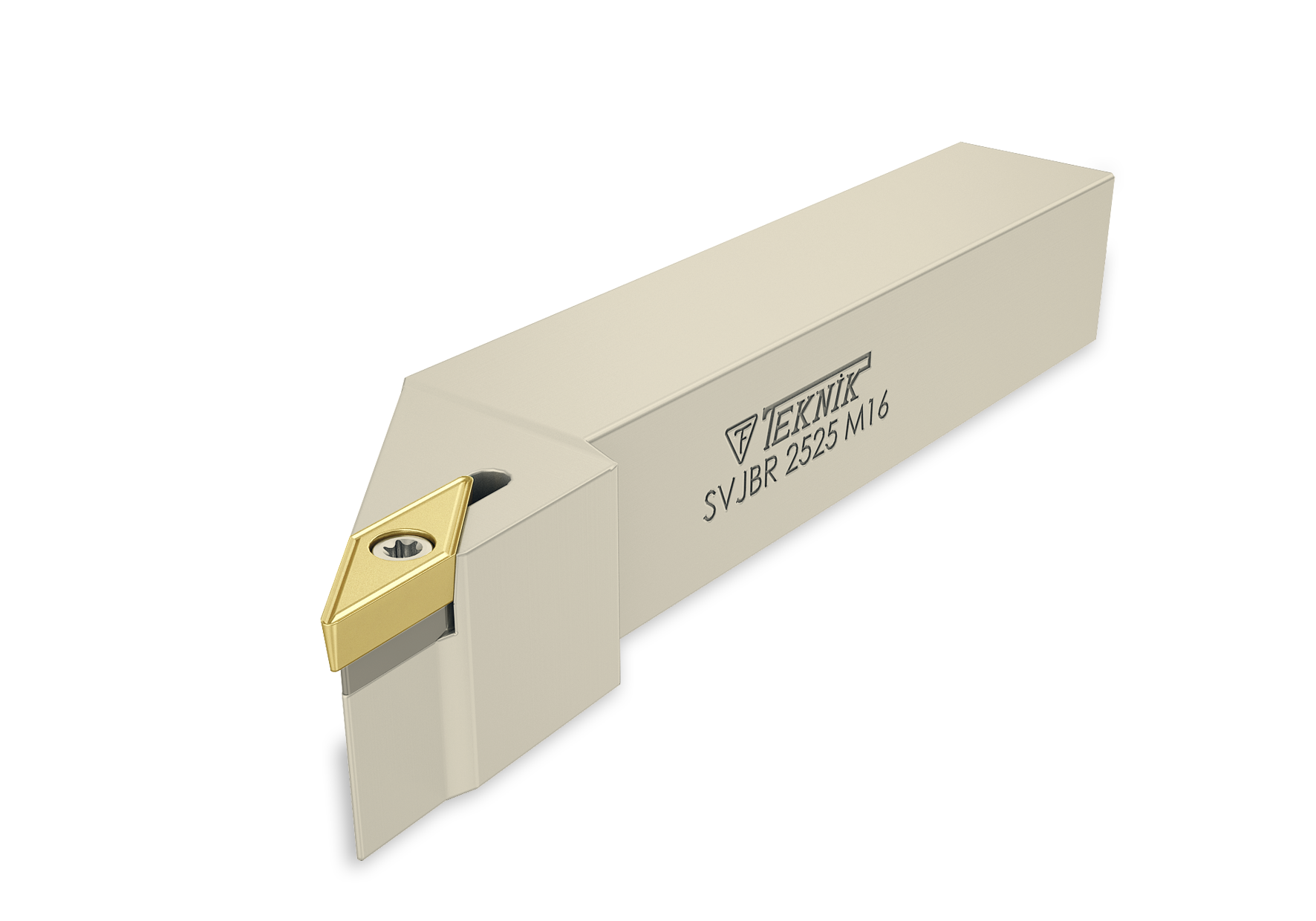

Clamping holder SVJB for VBMT Indexable Inserts — right-hand holder, 100 mm overall length

The Clamping holder SVJB for VBMT Indexable Inserts is a right-hand turning holder designed to accept VBMT 1604 indexable plates, offering reliable clamping and precise positioning for standard lathe operations

• Right-hand orientation for turning operations
• Compatible with VBMT 1604 indexable inserts
• 100 mm overall length for rigid support
• 16 mm holder height, 20 mm cutting-head width

Stable cutting performance that reduces vibration and improves surface finish

The holder is engineered to provide consistent rigidity: with an overall length of 100 mm and a cutting-head width of 20 mm, the accessory minimises chatter during interrupted cuts and helps to maintain repeatable geometry. The unit’s 93° cutting angle supports conventional turning geometries and, together with the SVJBR 1616 ISO designation, makes the tool suitable for many workshop fixtures. This combination of dimensions and geometry translates into fewer reworks and a more predictable process window when machining steel and comparable materials.

Fast set-up and secure clamping to shorten cycle times

Designed for standard VBMT plates, the tool holder simplifies insert changes and reduces downtime during tool swaps. The right-hand configuration aligns with common lathe set-ups and the clamping mechanism secures the insert reliably, lowering the risk of micro-movement under load. At a weight of only 0.192 kg, the holder is easy to handle without compromising stability, supporting efficient toolroom workflows and improved machine uptime.

Practical suitability for industry and trade with straightforward integration

As a compact turning accessory, this holder fits well into mixed-production environments and small-series production where flexibility and dependable repeatability matter. The 16 mm holder height and 33 mm cutting-edge height provide a balanced elevation for standard toolpost arrangements. For procurement and supply reliability, the product is offered through Metav Werkzeuge, whose Emmerich hub acts as a quality filter for European customers and supports predictable delivery and stock transparency.

Contact Metav Werkzeuge for a specification check and procurement from Emmerich — our consultants will confirm fitment and delivery options for the Teknik Cutting Tools clamping holder (SKU D235TM)

Technical data

• Article number: D235TM
• Manufacturer: Teknik Makina
• Designation: SVJB for VBMT Indexable Inserts
• ISO designation: SVJBR 1616

Facts

• Overall length: 100 mm
• Holder height: 16 mm
• Holder width: 16 mm
• Cutting-head width: 20 mm
• Cutting-edge height: 33 mm
• Cutting angle: 93°
• Weight: 0.192 kg

Special features

• Compatible with VBMT 1604 indexable inserts
• Right-hand cutting direction
• Suited for conventional turning operations
• SVJB style clamping for indexable plates

FAQ

Which inserts fit this holder?
The holder accepts VBMT 1604 indexable inserts; the clamping geometry is matched to the VBMT plate form for secure seating.

Is the holder right-hand or left-hand?
This variant is a right-hand clamping holder, intended for conventional right-hand turning directions.

What is the ISO designation for the holder?
The holder is specified as SVJBR 1616, which indicates its nominal shank and clamping form.

What are the key dimensions to check for toolpost fitment?
Relevant dimensions include the 100 mm overall length, 16 mm holder height and 20 mm cutting-head width; these determine compatibility with common toolpost arrangements.

Can this holder be used for heavy interrupted cuts?
The holder’s geometry and 93° cutting angle provide good rigidity for typical interrupted cuts within the limits of the machine and insert capability.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
