Take advantage of secure clamping, compatibility with VCMT 1604 indexable inserts and a compact 100 mm overall length to improve turning efficiency; the result is stable cutting, reduced setup time and reliable repeatability. Order the clamping holder SVJC for VCMT indexable inserts directly via Metav Werkzeuge or ask our consultants if needed.

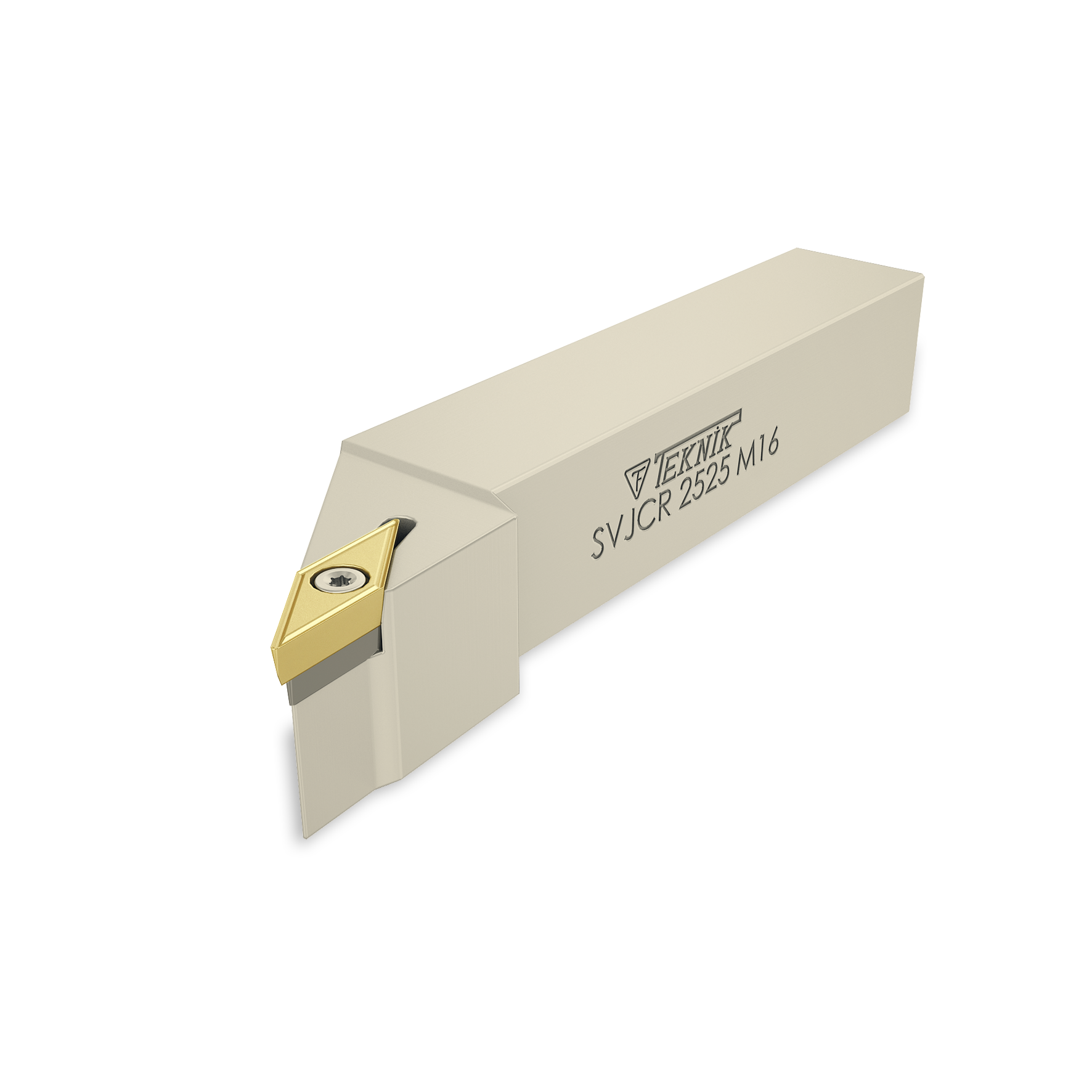

Clamping holder SVJC for VCMT Indexable Inserts — right-hand turning toolholder by Teknik Makina

Clamping holder SVJC for VCMT Indexable Inserts provides a compact, rigid solution for right-hand turning with VCMT-family inserts, optimised for precision shop and industrial lathe applications

• Right-hand turning holder for VCMT inserts
• Compatible with VCMT 1604 indexable inserts
• Sturdy 16 mm shank height for secure clamping
• 100 mm overall length for versatile tooling

Consistent clamping for repeatable turning results

The SVJC-style holder is engineered to deliver stable tool clamping under cutting loads, which reduces vibration and improves surface finish. The combination of a 16 mm shank height and a precisely dimensioned clamping head ensures that the insert pocket maintains rigidity during interrupted or heavy cuts. This mechanical stability translates into predictable chip formation and fewer rejects in production, supporting efficiency targets in batch and single-part manufacturing.

Designed for quick compatibility with standard VCMT inserts

Designed specifically for VCMT 1604 indexable inserts and carrying the SVJCR 1616 ISO designation, the holder simplifies insert changes and tool inventory management. The right-hand orientation and standardised pocket geometry allow the use of widely available indexable inserts, reducing procurement complexity. The toolholder’s compatibility accelerates setup and minimises downtime when swapping inserts or geometries, directly supporting process throughput and cost-efficiency.

Compact dimensions that expand workshop flexibility

With a 100 mm overall length and a 20 mm cutting-head width, the holder fits tighter toolpost arrangements while preserving effective cutting clearance. The relatively low mass (0.195 kg) reduces dynamic overhang and assists balance on the toolpost, which is advantageous for fine turning and finishing passes. These compact dimensions make the holder suitable for confined work envelopes and help to shorten tool-change cycles, increasing usable machine hours.

Practical engineering for integration and dependable service life

A nominal cutting angle of 93° and a 33 mm cutting height are deliberate design choices that support common turning geometries and predictable tool engagement. The robust clamping mechanism and standardised H16 attachment reference simplify integration into existing tool chains. Sourcing through Metav brings further assurance: a quality-filtered European supply chain and access to technical advice streamline procurement and fleet standardisation for trade and industry customers.

Contact Metav Werkzeuge for a fitment check and further technical details on the Teknik Makina clamping holder SVJC (SKU D244TM); their Emmerich-based consultants can confirm suitability for specific lathes and insert grades

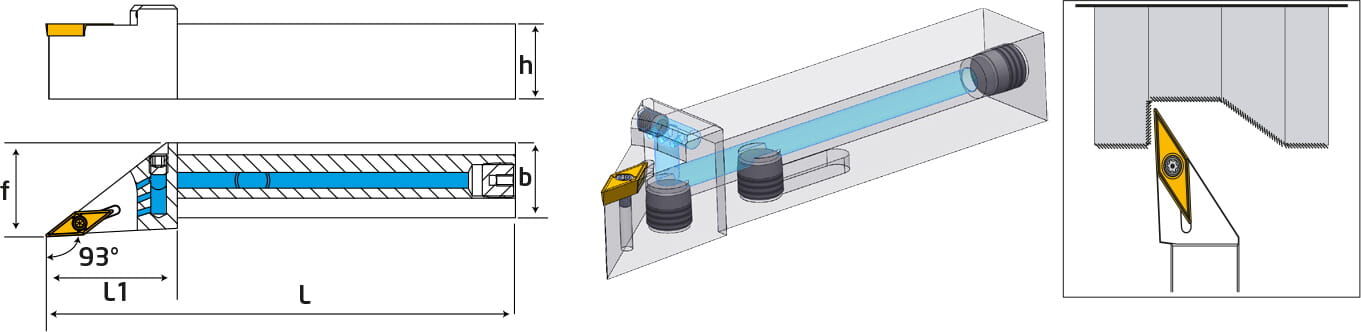

Technical data

• Article number: D244TM
• Manufacturer: Teknik Makina
• Designation: SVJC for VCMT Indexable Inserts
• ISO designation: SVJCR 1616

Core data

• Overall length: 100 mm
• Shank height: 16 mm
• Cutting head width: 20 mm
• Tool width: 16 mm
• Cutting height: 33 mm
• Cutting angle: 93°
• Weight: 0.195 kg
• Cut direction: right-hand

Compatibility & features

• For VCMT 1604 indexable inserts
• Right-hand turning holder
• H16 boring bar designation
• SKU: D244TM

FAQ

Which insert types fit this holder?
The holder is designed for VCMT 1604 indexable inserts; the pocket accepts standard VCMT geometries for secure seating.

Is the holder suitable for right-hand or left-hand turning?
This toolholder is configured for right-hand turning operations.

What is the ISO designation and how does that help with selection?
The ISO designation SVJCR 1616 identifies the mounting and pocket geometry, helping to match the holder with compatible toolposts and insert types.

Are the dimensions suitable for tight toolpost arrangements?
Yes; the 100 mm overall length and 20 mm head width make the holder well suited to confined setups and multi-tool turrets.

What are the shank height and weight specifications?
Shank height is 16 mm and the nominal weight is 0.195 kg, offering a balance of rigidity and low mass for stable turning.
