Klemmhalter 95° SCLCR 1616 H09 for CC-- 09T3 Wendeplatten Innenkühlung Rechtsschneidend - Teknik Makina

Take advantage of a compact, rigid turning solution that combines reliable clamping, precise geometry and easy integration into existing turret setups — ideal for reducing vibration and improving surface finish. Benefit from the holder's compatibility with common CCMT inserts and the practical 100 mm length for lower overhang; order or request application advice via Metav Werkzeuge for fast, reliable supply.

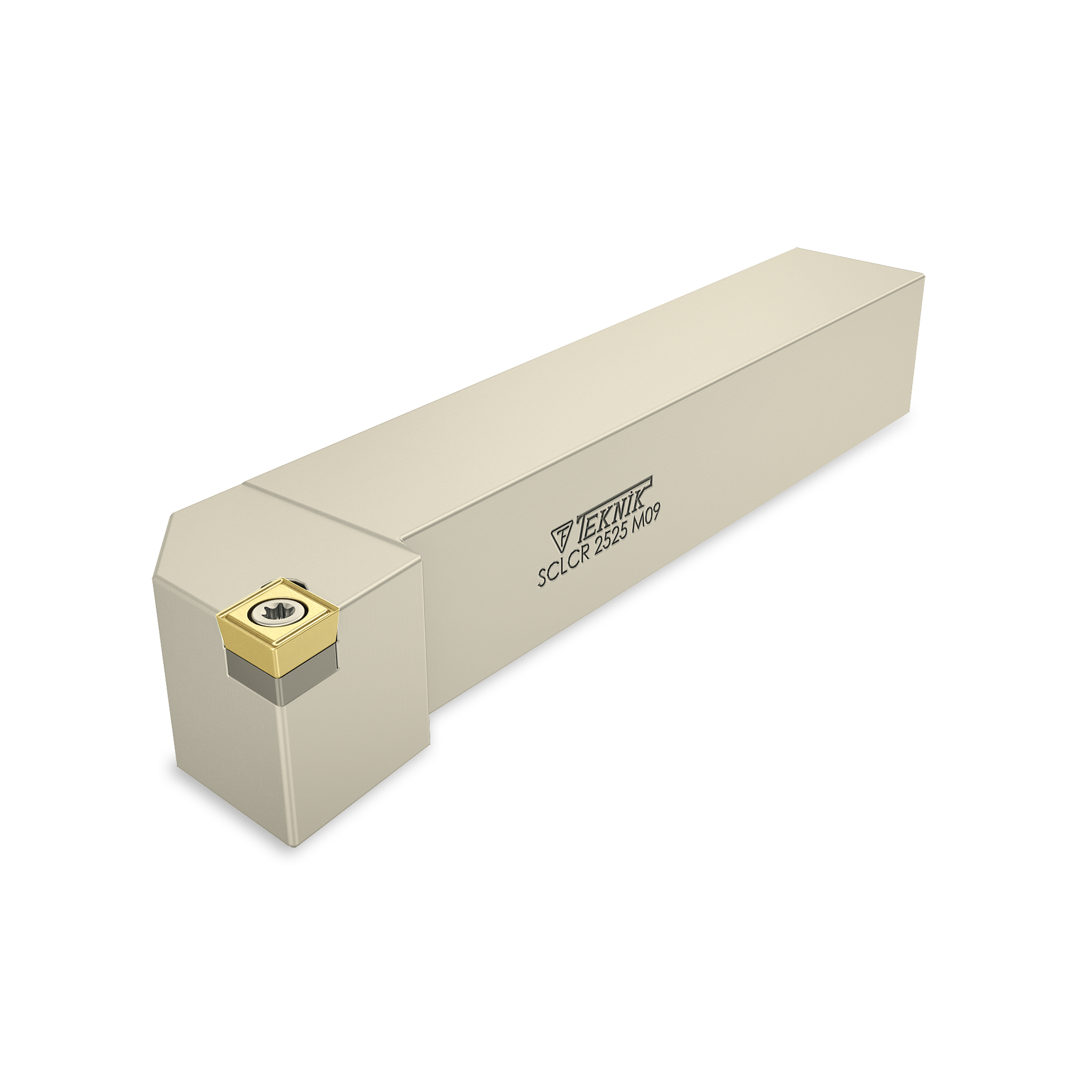

SCLC for CCMT Indexable Inserts — right‑hand turning toolholder by Teknik Makina with 95° cutting angle

The SCLC for CCMT Indexable Inserts is a right‑hand turning holder engineered for use with CC--09T3 (CCMT) indexable inserts in external turning applications

• Right‑hand turning holder SCLCR 1616
• Compatible with CC--09T3 CCMT inserts
• 95° cutting angle for stable machining
• 100 mm overall length for reduced overhang

Stable clamping for consistent turning results

The holder is built around the ISO designation SCLCR 1616, providing a standardised mounting form that supports secure clamping of CCMT‑style inserts. Secure insert fastening and a compact insert pocket reduce micro‑movement, which translates into improved repeatability and a more consistent surface finish on turned components. For production environments, the increased rigidity lowers the risk of chatter and helps maintain dimensional tolerances across longer runs.

Precision geometry that speeds set‑up and cuts cycle time

A 95° cutting angle and a cutting height of 20 mm deliver a geometry that balances clearance and cutting force direction for typical external turning operations. The orientation and angle ease approach to shoulders and allow predictable chip flow, which simplifies initial set‑up and reduces the need for iterative adjustments. With the right‑hand configuration, the toolholder reliably supports conventional turning directions used across lathe platforms.

Compact dimensions for flexible workshop integration

With a total length of 100 mm, head width 20 mm and holder width 16 mm, the toolholder is sized to minimise overhang while retaining the accessibility needed for various turret pockets. The modest mass (0.215 kg) contributes to lower centrifugal loading in high‑speed operations and helps keep dynamic loads manageable. These compact dimensions make the component suitable for cramped tool positions and multi‑station turrets without sacrificing stability.

Production reliability and broad insert compatibility

Designed for indexable CCMT inserts (designation CC--09T3), the holder supports quick insert changes and cost‑effective edge renewals, making it suitable for both small batches and continuous production. The right‑hand cutting direction and standard shank form enable straightforward replacement of existing holders, while the robust design focuses on long‑term reliability and predictable machining outcomes. The combination of secure clamping and standard compatibility reduces tooling downtime and streamlines tool management.

Discuss application requirements with Metav Werkzeuge to confirm insert compatibility and receive delivery options from Emmerich for the Teknik Makina turning holder (SKU D401TM)

Technical data

• Article number: D401TM
• Brand: Teknik Makina
• ISO designation: SCLCR 1616
• Compatible inserts: CC--09T3 (CCMT)
• Cutting direction: right

Facts

• Total length: 100 mm
• Head width: 20 mm
• Holder width: 16 mm
• Holder height: 16 mm
• Cutting height: 20 mm
• Cutting angle: 95°
• Weight: 0.215 kg
• eClass: 21181004

Special features

• Right‑hand turning toolholder
• Designed for indexable CCMT inserts
• Standardised shank form for turret mounting
• Files: migration IDs included

FAQ

Which inserts fit this holder?
The holder accepts CC--09T3 indexable inserts (CCMT style); compatibility ensures quick insert changes and common spare parts.

Is the cutting direction fixed?
Yes, the toolholder is configured for right‑hand cutting, suitable for conventional external turning applications.

What is the ISO designation and why does it matter?
The ISO designation SCLCR 1616 defines the shank and mounting form, providing interchangeability and predictable fit in turret pockets.

How does the 95° cutting angle affect machining?
A 95° cutting angle offers a balance of clearance and cutting force direction, improving contact stability and aiding predictable chip flow.

Can this holder reduce vibration on small lathes?
The compact 100 mm length and rigid clamping reduce overhang and dynamic loading, which helps lower vibration when fitted correctly.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
