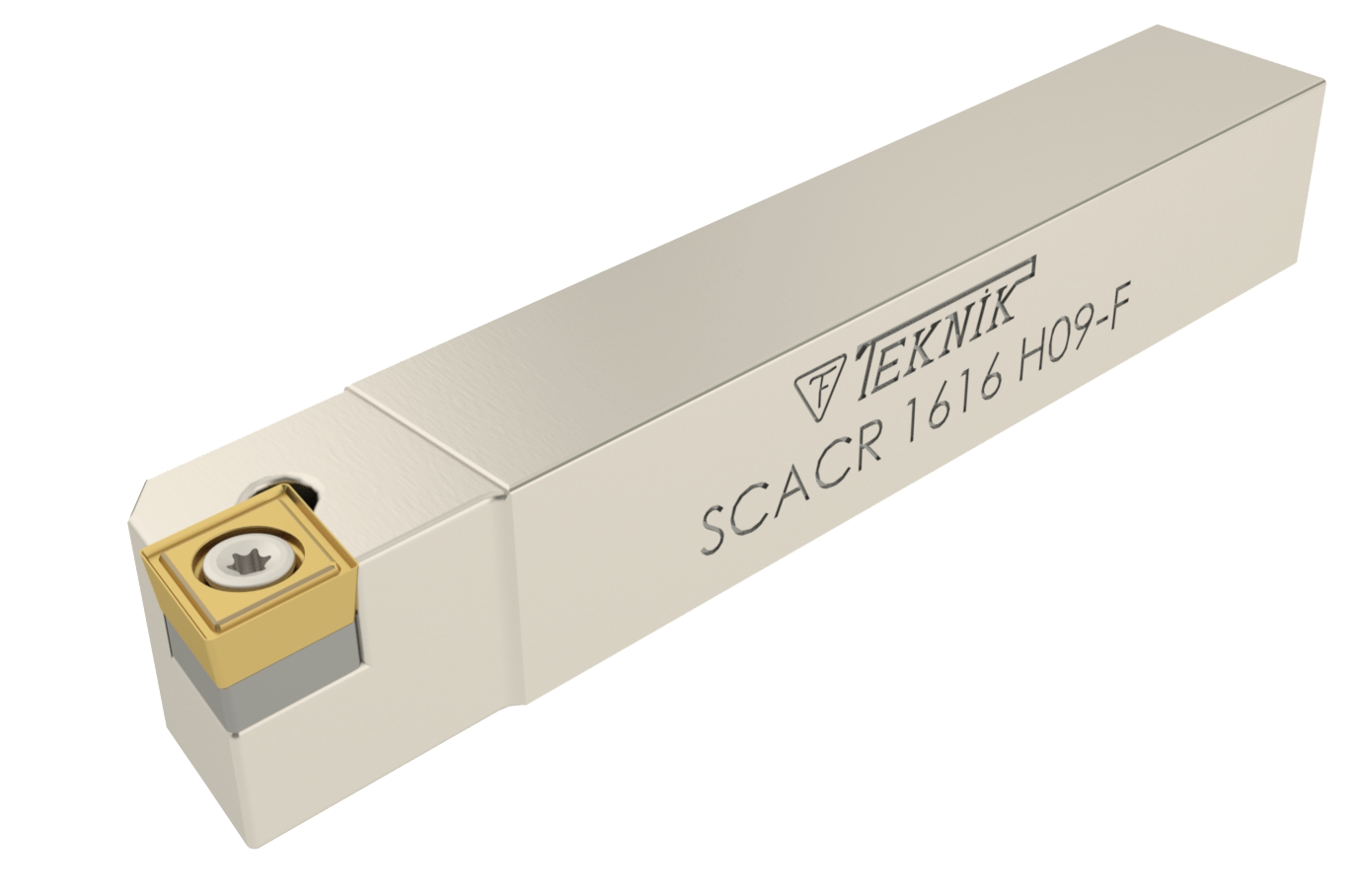

SCACR-F for CCMT Indexable Inserts — Right-hand turning holder, SCACR 1616 by Teknik Cutting Tools

The SCACR-F for CCMT Indexable Inserts is a right-hand turning toolholder engineered for CCMT 09T3 inserts, offering a compact 16 × 16 mm head and a 100 mm overall length for confined turning operations

• Right-hand turning orientation
• Compatible with CCMT 09T3 inserts
• SCACR 1616 toolhead, 16 × 16 mm
• 100 mm overall length, solid build

Stable clamping for consistent turning results

This turning holder uses a proven clamping concept to secure indexable inserts reliably under cutting loads. The SCACR 1616 geometry provides a low centre of gravity and short overhang, which improves rigidity and reduces vibration during interrupted cuts. For workshops requiring repeatable diameters and surface finish, the holder’s compact head (16 × 16 mm) and firm insert seating translate into reduced tool chatter and longer insert life, delivering measurable process stability in serial or single-part production.

Standard compatibility simplifies tooling decisions

Designed specifically for CCMT 09T3 inserts, the holder accepts widely available triangular-turning inserts used across industry. The ISO designation SCACR 1616 denotes the holder’s standardized shank and head dimensions, enabling easy integration with existing toolposts and toolpost adaptors. Using a toolholder that matches common insert formats minimises inventory complexity and facilitates fast replacement during tool changes, supporting efficient shop-floor logistics and predictable machining cycles.

Compact geometry for improved access and chip control

With a 100 mm overall length and a 90° cutting angle, the holder delivers close access to workpiece shoulders and bores while preserving clearance for chip evacuation. The right-hand cutting direction aligns chip flow away from the operator and fixture in conventional turning set-ups, lowering the risk of entanglement and easing post-process cleaning. The combination of a small head dimension and a robust clamping interface makes this holder especially suitable where tool overhang must be minimised without compromising on clamping security.

Arrange an application review with Metav Werkzeuge for the SCACR 1616 turning holder or request tailored advice from our Emmerich specialists to match the holder to the machining task

Technical data

• Article number: D414TM
• Designation: SCACR-F for CCMT Indexable Inserts
• ISO designation: SCACR 1616
• Manufacturer: Teknik Makina

Facts

• Overall length: 100 mm
• Toolhead height: 16 mm
• Toolhead width: 16 mm
• Cutting angle: 90°
• Weight: 0.221 kg
• Cutting direction: Right-hand

Special features

• Compatible inserts: CCMT 09T3
• Shank designation: H09-F
• Right-hand turning holder
• Compact head for restricted access

FAQ

Which insert type fits this holder?
The holder accepts CCMT 09T3 indexable inserts and is optimised for that insert geometry.

What is the ISO designation of the toolholder?
The toolholder is listed as SCACR 1616, indicating the standard head and shank dimensions.

Is this a right-hand or left-hand holder?
This is a right-hand turning holder, designed for conventional right-hand cutting directions.

What are the compact dimensions of the toolhead?
The toolhead measures 16 × 16 mm, providing a low-profile solution for tight turning applications.

What is the overall length of the holder?
Overall length is 100 mm, suitable for reduced overhang and better rigidity.

Who manufactures this toolholder?
The toolholder is produced by Teknik Makina and supplied via Metav Werkzeuge.
