Spannzangen für Drehmaschinen

Take advantage of the combination of precise clamping, proven 5C compatibility and reliable repeatability for steady production results. Order the collet directly via Metav Werkzeuge or consult the team for application guidance. 5C Collet 11 mm (SKU 5C-11) — High-precision 5C workholding by Vertex The 5C Collet 11 mm is a precision workholding collet for machining applications, engineered to secure round tools and blanks with high repeatability and low runout. 11 mm clamping diameter 0.02 mm runout accuracy Compatible with 5C system chucks 87 mm overall length Consistent precision that improves finish quality Designed for accurate gripping, this workholding sleeve delivers 0.02 mm runout accuracy, which reduces vibration and improves surface finish on turned or milled components. The precise clamping action leads to repeatable concentricity, cutting down setup time and minimising scrap rates. By stabilising the tool or workpiece, the collet helps to extend tool life and supports predictable cycle times in batch production. Flexible integration with established 5C systems As a member of the 5C family, the collet fits standard 5C chucks and fixtures, offering straightforward interchangeability across lathes and milling setups. The 11 mm internal diameter accommodates common round shanks, while the 87 mm overall length allows for deeper engagement where required. This compatibility reduces the need for bespoke adapters and enables rapid changeovers between jobs, supporting lean workflow practices. Robust repeatability for workshop and small-scale production Manufactured to deliver dependable performance across repeated cycles, the component offers measurable stability for production environments seeking consistent results. The modest mass and compact dimensions contribute to easier handling and quicker tooling changes without compromising clamping force. Proven repeatability and mechanical simplicity make this collet a practical choice for workshops that prioritise uptime and quality assurance. For precision clamping solutions from Vertex, contact Metav Werkzeuge in Emmerich for tailored advice and reliable supply — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: 5C-11 GTIN: 4061905088643 ECLASS: 21041712 Facts Clamping diameter: 11 mm Overall length: 87 mm Runout accuracy: 0.02 mm Weight: 0.21 kg Special features 5C collet type Compatible with standard 5C chucks Brand: Vertex FAQ What size shank does this collet accept? The collet accepts an 11 mm shank; the 5C Collet 11 mm (SKU 5C-11) is specified for this diameter. How accurate is the clamping concentricity? Concentricity is specified at 0.02 mm, ensuring low runout for improved surface finish and tool life when using the Vertex collet. Is this collet compatible with standard 5C chucks? Yes, the product is a 5C type collet and fits standard 5C chucks and adapters used in lathes and milling machines. What is the overall length and how does that affect use? The overall length is 87 mm, which allows for deeper engagement in applications that require additional grip length. Who manufactures this collet? The collet is manufactured by Vertex and supplied under SKU 5C-11, reflecting Vertex’s workholding range. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of precise ER‑40 clamping together with an MT‑4 taper for fast, secure spindle mounting; the seven-piece set reduces changeover time and keeps tool runout low. Order the set directly via Metav Werkzeuge or consult our specialists for specification matching. V-432 ER‑40 collet set with MT‑4 taper by Vertex The V-432 is a precision ER‑40 collet set with an MT‑4 taper, designed for secure, repeatable clamping in milling and drilling applications ER‑40 collet system for high clamping accuracy MT‑4 Morse taper for secure spindle mounting 7-piece set covering common tool shanks Robust design suited to workshop conditions High-precision clamping that reduces rework The ER‑40 collet system is engineered to deliver consistent concentricity and minimal tool runout, which translates into improved surface finish and extended cutter life. As supplied in the V-432 set, the collets are matched to a single collet chuck, ensuring that clamping force is distributed evenly across the tool shank. This level of repeatability supports tighter tolerances in serial production and reduces time lost to part rework and inspection. Quick mounting and compatibility for diverse machines Fitted with an MT‑4 taper, the chuck is compatible with spindles and adaptors that accept the Morse taper standard, allowing straightforward installation and rapid changeover between operations. The design of the taper facilitates accurate axial positioning and reliable torque transfer, making the set appropriate for both light and moderate-duty machining tasks. The set format streamlines tool inventory by offering multiple collet sizes for common shank diameters. Durable construction for dependable workshop use The set is supplied as a compact kit, built to withstand routine workshop handling while maintaining functional precision. The mechanical design emphasises secure locking and wear resistance so that clamping performance remains stable over repeated cycles. By reducing unscheduled downtime through dependable holding power, the kit contributes directly to a more predictable production flow and cost-effective operation. Practical handling and maintenance to keep production moving Maintenance is straightforward: regular cleaning of the collet mating surfaces and inspection for wear preserves clamping accuracy and prevents deterioration in performance. The sectional design allows easy disassembly for debris removal and lubrication where appropriate. Clear labelling of the set components simplifies selection during tool changes, helping to accelerate workflows and maintain throughput in busy machining environments. For supply from Metav Werkzeuge in Emmerich and tailored advice on the Vertex V-432 ER‑40 collet set with MT‑4 taper, contact info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: V-432 GTIN: 4061905095979 Eclass: 21022190 Manufacturer: Vertex Core specifications Weight: 4.6 kg Taper: MT‑4 Collet type: ER‑40 Pieces per set: 7 Special features Set with collet chuck and MT‑4 arbor Designed for secure, repeatable clamping SKU: V-432 FAQ What taper is used for mounting the chuck? The chuck in this kit uses an MT‑4 Morse taper for secure spindle mounting and accurate axial positioning. How many collets are included in the set? The V-432 set is supplied as a 7-piece kit, offering a range of commonly used collet sizes for ER‑40. Is the ER‑40 system suitable for high-precision work? Yes; the ER‑40 collet system included in the V-432 is designed to provide high concentricity and low tool runout for precision machining. Who manufactures the collet set? The set is produced by Vertex; the SKU for this kit is V-432 and it is marketed as a workshop-grade ER‑40 collet set. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of secure, damage‑reducing clamping and straightforward workshop checks for uninterrupted threading operations; order the collets directly via Metav Werkzeuge or consult our team for application guidance. Rubber-Flex collets FC for thread-cutting machine VTA7 — secure clamping, compact 26.5 mm diameter Rubber-Flex collets FC for thread-cutting machine VTA7 provide reliable clamping for thread-cutting applications on VTA7 systems and are designed for simple inspection with common workshop calipers Rubber-Flex design for secure gripping For VTA7 thread-cutting machines Compatible with calipers Ø5.36–Ø9 mm Diameter 26.5 mm, length 15 mm Reduced thread damage through elastic clamping The Rubber-Flex collet concept uses an elastic clamping surface that reduces radial point loading, which helps to preserve delicate thread profiles during cutting. By distributing clamping forces more evenly than rigid alternatives, the sleeve minimises distortion and burr formation; this results in consistent thread geometry and fewer rework cycles. The compact 26.5 mm diameter and short 15 mm length support tight tool envelopes and efficient use of spindle space, contributing to dependable throughput in repetitive operations. Engineered for VTA7 machines and rapid inspection Designed specifically for the VTA7 thread-cutting apparatus, this clamping sleeve aligns with common workshop inspection routines: the collet is compatible with handheld calipers in the range Ø5.36–Ø9 mm, enabling quick verification of gripping size and runout without special gauges. The clear compatibility reduces setup uncertainty and shortens quality checks, helping maintain steady production speeds. Where traceability is required, the product is listed under SKU FC-30 and GTIN 4061905086717 for cataloguing and procurement. Simple fit that keeps workshop throughput steady Installation and replacement are kept straightforward by the collet’s compact form factor and standardised interface for the VTA7 unit, which reduces downtime during tooling changes. The design focus on repeatable seating and elastic contact means fewer adjustments between cycles, delivering a practical benefit for workshops that prioritise uptime and predictable performance. The result is a component that supports efficient processes and integrates into existing tool control routines without extensive retraining. For procurement or technical advice on Vertex Rubber-Flex collets (FC-30) contact Metav Werkzeuge — email info@metav-werkzeuge.com or call +49 2822 7131930 for reliable supply and application support from Emmerich Technical data SKU: FC-30 GTIN: 4061905086717 Article: Rubber-Flex collets for thread-cutting machine VTA7 Core measurements Diameter: 26.5 mm Length: 15 mm Caliper range: Ø5.36–Ø9 mm eClass: 21041712 Compatibility and features For thread-cutting machine VTA7 Designed for secure, elastic clamping Compatible with handheld caliper inspection Brand: Vertex FAQ Which machines is this clamping sleeve intended for? The Rubber-Flex collet is designed for the VTA7 thread-cutting machine and listed as SKU FC-30 for clear identification in procurement and maintenance records. What are the key dimensions to check during setup? Check the 26.5 mm diameter and 15 mm length; the gripping range is compatible with calipers from Ø5.36 to Ø9 mm for quick workshop inspection. How is runout or grip size verified? Use a handheld caliper within the specified range to verify external dimensions and seating; the collet’s compatibility with standard calipers simplifies routine checks for quality control. Is the product traceable for inventory and ordering? Yes; the collet is identified by SKU FC-30 and GTIN 4061905086717, facilitating ordering, stock management, and traceability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Compact and lightweight storage with a focus on organisation and protection: the plastic construction and the compact dimensions 220 x 110 x 6 mm keep VMS-5 collet sleeves ready for use while saving bench space. Order the VMS-5 Plastic Holder directly via Metav Werkzeuge or ask our consultants if needed. VMS-5 Plastic Holder for Collet Sleeves – Compact 220 x 110 x 6 mm by Vertex The VMS-5 Plastic Holder is a compact storage solution for workshop and tooling environments, engineered to keep VMS-5 collet sleeves organised and protected within a small footprint. Durable plastic construction Compact 220 x 110 x 6 mm format Lightweight at just 0.2 kg Designed for VMS-5 collet sleeves Better organisation, less downtime A streamlined storage solution reduces searching and handling time, directly supporting workflow efficiency. The plastic tray is shaped for orderly placement of collet sleeves, enabling quick access and clear separation of tooling. With a compact footprint of 220 x 110 x 6 mm, the tray fits into standard tool cabinets and bench shelving, contributing to a tidier workstation and fewer misplaced parts. This organisation helps to maintain production rhythm and minimise interruptions. Robust protection without bulk Made from resilient plastic, the holder offers protection from knocks and contamination while remaining exceptionally lightweight at 0.2 kg. The low mass minimises stress on storage systems and makes handling effortless during tool changes. The material resists common workshop soiling and is easy to wipe clean, preserving the condition of stored components and reducing maintenance of both holder and tooling. Such protection supports consistent clamping performance and prolongs the service life of precision parts. Easy integration into existing setups The holder is designed specifically for VMS-5 collet sleeves and adapts well to established tool-storage arrangements. Its slim profile saves shelf depth and allows several units to be placed side by side, creating modular storage arrays for different sleeve sizes or types. The simple, functional design requires no additional fixtures and can be combined with bench organisers or drawer inserts to form a compact, efficient storage system that helps maintain order in busy shops. Secure organised clamping storage with the Vertex VMS-5 Plastic Holder — contact Metav Werkzeuge in Emmerich for technical advice and reliable supply. Technical Data Article number: VMS-5 GTIN: 4061905084768 Manufacturer: Vertex Machinery Works Co., Ltd. Material: Plastic Dimensions: 220 x 110 x 6 mm Weight: 0.2 kg Facts Dimensions (L x W x H): 220 x 110 x 6 mm Weight: 0.2 kg ECLASS: 21022190 GTIN numeric: 4061905084768 Special features For collet sleeves: VMS-5 Brand: Vertex Compact, low-profile design Easy-to-clean plastic material FAQ How compatible is the holder with different collet sleeve types? The VMS-5 Plastic Holder is designed specifically for VMS-5 collet sleeves and provides correct seating and separation for that sleeve type, ensuring consistent organisation for compatible tooling. What material is the holder made from and how durable is it? The Vertex VMS-5 plastic holder is manufactured from a resilient plastic that resists workshop dirt and provides impact protection while remaining lightweight for easy handling. Can the holder be used in drawers or on open shelving? The slim 220 x 110 x 6 mm profile makes the holder suitable for both drawer storage and open bench shelving, allowing modular arrangement alongside other workshop organisers. Does the holder require special maintenance? Maintenance is minimal: the plastic surface can be wiped clean with a cloth; the design of the VMS-5 holder avoids crevices that trap debris, simplifying routine upkeep. Is the product identified for ordering by a catalogue number or GTIN? Yes, the holder is listed under article number VMS-5 and GTIN 4061905084768 for straightforward procurement and inventory management. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of precise clamping with standard ER collets and a compact Ø 28 mm form factor to streamline tooling operations. The combination of ER-16 compatibility, a Morse taper mounting and lightweight design supports fast spindle changes and space-saving setup. Order the component directly via Metav Werkzeuge or contact our consultants for compatibility guidance. V-401 collet chuck — Collet chuck for ER collets, ER-16, Ø 28 mm (Vertex) A V-401 collet chuck engineered for use with ER collets and a Morse taper mounting, providing compact clamping for machine spindles and toolholding operations ER-16 compatibility for standard ER collets Morse taper (MT) mounting for spindle integration Compact Ø 28 mm outside diameter Manufactured by Vertex Consistent clamping for repeatable machining results The compact design delivers precise clamping for short, repeatable toolholding cycles. Compatibility with ER collets and the specified ER-16 size ensures standardised grip across common tooling ranges, reducing setup variation. Explained simply: an ER collet is a segmented sleeve that contracts uniformly around a tool shank when tightened, so the holder transfers torque and axial forces evenly. This makes the system particularly suitable where consistency between multiple operations is required and where quick tool changes improve throughput. Easy integration into Morse taper spindles Designed for machines with a Morse taper mounting, the unit allows straightforward spindle integration without extensive adapters. The Morse taper interface is a long-established spindle standard that provides concentric seating and secure axial positioning; when combined with the ER clamping system it offers both mechanical stability and fast interchangeability. This pairing supports rational workshop workflows by simplifying the transition between different holders and minimising machine downtime. Space-saving, lightweight solution for versatile workshops With an outside diameter of Ø 28 mm and a low mass, the chuck occupies minimal axial and radial space in the spindle, enabling closer tool spacing and improved access in compact setups. The reduced mass contributes to lower inertia during acceleration and deceleration phases, which can be advantageous in high-volume or high-speed sequencing where every gram counts. The construction suits general workshop and industrial environments that value compact, industry-standard toolholding components. For secure and compatible clamping solutions from Vertex, consult Metav Werkzeuge in Emmerich for tailored advice and to confirm spindle compatibility — contact via email info@metav-werkzeuge.com, phone +49 2822 7131930 or WhatsApp +49 170 2837271 Technical data Article number: V-401 GTIN: 4061905083877 Model: Collet chuck (V-401) Facts Outside diameter: 28 mm Weight: 0.2 kg EClass: 21020405 Special features Compatible with ER collets (ER-16) Morse taper mounting for spindle integration Manufacturer: Vertex FAQ Which collet size does this holder accept? The holder accepts ER-16 collets; confirm the required clamping range against the ER-16 specification when selecting tooling. Is the chuck suitable for standard Morse taper spindles? Yes, the unit is specified for a Morse taper mounting intended for direct spindle seating and integration. What is the outside diameter of the toolholder? The outside diameter is Ø 28 mm, making it suitable for compact spindle arrangements. How heavy is the V-401 collet chuck? The V-401 weighs approximately 0.2 kg, facilitating lower rotational inertia in short overhang setups. Who manufactures the component and where is it produced? The component is manufactured by Vertex, listed under the model V-401 and distributed through Metav Werkzeuge for the European market. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of precision clamping, a compact ER-20 steep taper and robust build for stable machining and reliable repeatability; order directly via Metav Werkzeuge or consult Metav's specialists for tailored advice. V-742D collet chuck — ER-20 steep taper, 34 mm nominal diameter (Vertex) V-742D is a collet chuck designed for secure toolholding with ER collets, optimised for precision tool clamping in milling and drilling applications ER-20 steep taper for ER collets 34 mm nominal diameter Precision clamping for machining stability Robust 1.2 kg construction Stable gripping for reproducible results The collet chuck is engineered to deliver precision clamping and consistent concentricity in demanding workshop environments. The steep ER-20 taper ensures a tight, coaxial fit between the toolholder and spindle, reducing radial play and improving repeatability. Lower runout translates to longer tool life and better surface finishes, which is particularly valuable in serial machining where each cycle must meet the same tolerances. The compact 34 mm envelope supports confined setups without compromising stiffness. Faster setup and secure tool retention A reliable clamping system shortens non-productive time and increases machining throughput. The steep taper design provides positive tool retention under axial and radial loads, enhancing stability during heavy cuts. The construction weight of 1.2 kg contributes to a stable toolholder mass while remaining manageable for rapid changeovers. Compatibility with standard ER collets simplifies tool inventory and reduces the need for specialised adapters, enabling straightforward integration into existing toolholding systems. Practical application and workshop benefits This toolholder is suited for a range of conventional milling and drilling tasks where repeatable concentricity is required. The geometry of the taper and the ER system supports a wide selection of collet sizes, allowing flexible clamping of various shank diameters when used with the appropriate ER collet set. For shops seeking a reliable, compact solution for precision toolholding, the Vertex collet chuck offers a pragmatic balance of rigidity, size and compatibility. If specification advice is required, Metav's technical team is available to assist with selection and integration guidance. For procurement and technical advice on Vertex collet chucks such as the V-742D, contact Metav Werkzeuge for direct support from Emmerich: info@metav-werkzeuge.com • +49 2822 7131930 • WhatsApp +49 170 2837271 Technical data Article number: V-742D GTIN: 4061905085451 Manufacturer: Vertex Core dimensions Diameter: 34 mm Weight: 1.2 kg Cone: ER-20 Features Steep taper for ER collets Compatible with ER collet system Compact toolholder for confined setups FAQ Which collets fit this chuck? The V-742D collet chuck from Vertex accepts ER collets compatible with an ER-20 cone, allowing use of the standard ER collet range for that taper. What is the nominal diameter and mass of the toolholder? The toolholder has a nominal diameter of 34 mm and a weight of 1.2 kg, providing a compact yet stable solution for precision clamping. What benefits does the steep taper provide? A steep ER-20 taper in the V-742D improves coaxial alignment and retention, reducing runout and enhancing machining stability and tool life. Is the V-742D suitable for high-speed operation? The V-742D is designed for precision clamping with ER collets; suitability for specific spindle speeds depends on machine setup and collet selection. How does this collet chuck integrate with existing toolholding systems? The V-742D uses the ER-20 standard taper, enabling straightforward integration with ER collets and common collet accessories used in workshop toolholding systems. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Im Lieferumfang enthalten: 2 Sätze aus soliden Backen

Spannzangenfutter — Collet Chuck Spannzangenfutter Collet Chuck for precision toolholding in machine shops and toolroom applications, designed to secure cutting tools with consistent concentricity and dependable clamping force. ER-50 taper for robust clamping 78 mm Diameter for compact mounting Lightweight at 2 kg for easy handling Compatible with standard toolholders Precise concentricity for high-accuracy machining Exceptional precision for repeatable results The Spannzangenfutter is engineered to deliver consistent concentricity and repeatable clamping, making it a reliable choice where Accuracy matters. Built around the ER-50 taper, the Collet Chuck minimises runout and supports high-speed machining operations. Its compact 78 mm Diameter and balanced design reduce vibration, which translates into improved Surface Finish and longer tool life. For workshops seeking measurable performance gains, this toolholder offers a direct improvement in process stability and component Quality. Practical design that eases everyday use This Collet Chuck combines functional simplicity with robust construction to reduce setup time and handling effort. With a Weight of 2 kg, the unit is easy to fit and remove, while remaining sturdy during machining. The ER-50 system enables fast collet changes and broad tool compatibility, reducing idle time between operations. The straightforward geometry means less maintenance and fewer alignment checks—benefits that support higher throughput in busy production environments and make the toolholder particularly suited to small and medium-sized enterprises looking to increase Efficiency. Who benefits and where it excels Toolrooms, CNC workshops and maintenance departments will appreciate the clear advantages in repeatability and handling. The V-105 Collet Chuck is appropriate for general milling and drilling setups where precise toolholding is required without overcomplication. Because the design focuses on mechanical reliability rather than electrical features, it is ideal for environments that value straightforward, low-failure tooling solutions. Operators will notice fewer adjustments and more predictability in cycle-to-cycle results, which supports consistent Quality control. Why choose Metav and Vertex for your tooling needs Metav stands for the democratisation of Precision: supplying accurate measuring and tooling solutions that are affordable for every workshop while acting as a quality filter for the European market. With a long-standing partnership approach and an extensive range of products, Metav ensures reliable supply and informed advice from its base in Emmerich. Choosing the Vertex Collet Chuck through Metav combines Vertex engineering with a supply chain focused on trust, stock availability and service continuity for industry and trade. Choose the Vertex Collet Chuck V-105 for superior clamping precision and contact Metav for tailored technical advice and reliable supply from Emmerich — eMail: info@metav-werkzeuge.com, Phone: +49 2822 7131930 Product Features Article number: V-105 Brand: Vertex Product: Spannzangenfutter (Collet Chuck) Taper: ER-50 Diameter: 78 mm Weight: 2 kg Facts Diameter: 78 mm Weight: 2 kg Features Kegel: ER-50 SKU: V-105 eClass: 21020405 FAQ What taper does this collet chuck use? The Vertex Spannzangenfutter V-105 uses an ER-50 taper, providing robust clamping suitable for many standard collet sizes and ensuring reliable tool retention during machining. Is the Collet Chuck suitable for high-speed milling? Yes, the Vertex Collet Chuck (Spannzangenfutter) V-105 is designed with balanced geometry and precise concentricity, making it appropriate for many high-speed operations where reduced vibration is essential. How heavy is the V-105 and does weight affect handling? The V-105 Collet Chuck weighs 2 kg, which offers a good balance between sturdy performance and easy handling during setup and tool changes. What diameter is the chuck and how does that affect mounting? This collet chuck has a 78 mm Diameter, allowing compact mounting arrangements and compatibility with a wide range of standard toolholders used in workshop environments. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

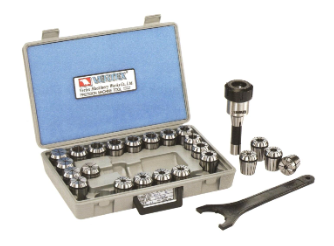

Benefit from a high-precision ER-32 clamping system combined with a secure R8 shank and a complete 18-piece set for reliable toolholding and reduced setup time. Order the collet chuck directly via Metav Werkzeuge or contact our consultants for tailored fitment advice. V-313 Collet Chuck (R8 shank) – ER-32 set by Vertex V-313 is a collet chuck designed for secure toolholding on machines with an R8 spindle taper, optimising repeatability and setup efficiency. ER-32 precision clamping system R8 taper for standard milling spindles Complete 18-piece collet set Robust build at 5.3 kg for stability Consistent clamping for repeatable results The ER-32 clamping system provides uniform gripping force across the tool shank, improving repeatability and surface finish in serial or precision machining. The design reduces micro-movement under load, which translates into fewer rejected parts and less rework. For production environments and jobbing shops alike, the reliable clamping behaviour shortens inspection cycles and supports predictable process windows. Smooth integration with R8 machine spindles Fitting an R8 taper allows straightforward insertion into compatible milling spindles, enabling fast tool changes and secure axial alignment. The chuck’s mass contributes to spindle stability during cutting, helping to dampen vibration and maintain concentricity. This results in more consistent tool life and predictable machining performance, supporting throughput and operational efficiency without complex retrofit work. Workshop-ready set that reduces downtime Supplied as a set, the package includes a complete ensemble of ER-32 collets to cover a broad range of shank diameters, enabling immediate use after installation. Having a matched set to hand reduces changeover time and minimises the need for frequent regripping. The sturdy construction and balanced design promote long-term durability, making this clamping solution a practical choice for workshops that prioritise uptime and consistent results. Contact Metav Werkzeuge to discuss the Vertex V-313 collet chuck and confirm compatibility with existing equipment, or request further technical details via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: V-313 GTIN: 4061905093043 Manufacturer: Vertex Shank: R8 Collet type: ER-32 Set: yes Facts Weight: 5.3 kg Pieces per set: 18 eClass: 21020405 SKU: V-313 Special features ER-32 collet system R8 spindle taper Complete 18-piece collet set Designed for precision toolholding FAQ What spindle taper is required for installation? The chuck requires an R8 spindle taper and is intended for machines that accept R8-mounted accessories; check spindle compatibility before fitting. How many collets are supplied with the set? The set contains 18 pieces, delivered as a matched ER-32 collet ensemble for a wide range of shank diameters. Which collet type is used and what does it mean? The unit uses ER-32 collets, a standard clamping system that provides versatile, concentric gripping across many common tool shank sizes. What is the unit weight and why does it matter? The assembly weighs 5.3 kg, a factor that contributes to rotational stability and vibration damping during machining. Is this product suitable for high-precision workshop use? Yes, the chuck’s precision clamping and balanced construction support stable toolholding and consistent part quality in precision workshop applications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Benefit from the combination of SK-50-100L taper stability, ER-40 versatility and a complete 7-piece set for consistently precise clamping in demanding machining tasks. Order the Collet chuck directly via Metav or request technical consultation for seamless integration into your workshop. Collet chuck (Spannzangenfutter) – V-758 with ER-40 collets, SK-50-100L taper The Collet chuck V-758 provides secure clamping for machining operations, combining an SK-50-100L taper with ER-40 collet compatibility to support versatile toolholding applications in milling and drilling. Collet chuck V-758 for ER-40 collets SK-50-100L taper for secure spindle fit Complete 7-piece set including collets Robust 6 kg construction for stable machining Precision clamping that reduces setup time and runout The chuck is designed for high-accuracy toolholding: the ER-40 interface provides concentric clamping with low runout, while the SK-50-100L taper ensures rigid spindle mounting. This combination reduces vibrations and tool deflection, which leads to improved surface finish and longer tool life. The Result: fewer reworks and more predictable cycle times on production and prototype runs. Practical set composition for everyday workshop use Supplied as a 7-piece set, the accessory grouping covers common tool diameters and simplifies changeovers. The set configuration keeps essential collets organised and ready, helping to shorten machine downtime between operations. The solid 6 kg construction gives the assembly weight that contributes to damping during milling and drilling cycles, supporting steady, repeatable machining results. Clear explanation of technical terms and compatibility ER-40 refers to the ER collet system — a widely used clamping standard that grips a range of tool shank sizes with a single collet type. SK-50-100L denotes the spindle taper size, the mechanical interface that mates the chuck to the machine spindle; compatibility with an SK-50-100L taper is essential for correct fit and concentricity. These standards make the chuck compatible with many conventional milling machines and machining centres that accept SK-50 tapers. Who benefits and where this excels This toolholding solution is intended for workshops and small production environments that require reliable, repeatable clamping without complex accessories. Toolmakers, maintenance shops and small manufacturers will value the balance of rigidity and versatility. The product is particularly appropriate where frequent tool changes occur and consistent concentricity is critical for part tolerances. Strong recommendation: opt for the Vertex V-758 Collet chuck with ER-40 compatibility for dependable, precise clamping — order through Metav for expert advice and reliable supply from Emmerich; for technical queries contact info@metav-werkzeuge.com or call +49 2822 7131930 Product Features Name: Collet chuck with ER collets in set Article number: V-758 Manufacturer: Vertex Facts Weight: 6 kg Pieces per set: 7 Special features Kegel: SK-50-100L (taper) Spannzangen Typ: ER-40 (collet size) Set: Yes (complete collet set included) FAQ What taper does the chuck use and why does it matter? The chuck uses an SK-50-100L taper; the taper determines the mechanical fit to the spindle and affects concentricity and rigidity. Correct taper matching ensures the V-758 unit seats properly and maintains accurate runout. Which collet standard is included in the set? The set is configured for the ER-40 collet standard, a common system for gripping a range of tool shank diameters; the V-758 with ER-40 provides flexible clamping across multiple tool sizes. How many collets are supplied with the set? The delivery comprises a 7-piece set, giving a practical selection of collets for common machining diameters and enabling quick tool changes. Is the Collet chuck suitable for production use? Yes. The combination of the SK-50-100L taper and ER-40 clamping yields the rigidity and repeatability expected in small-batch production and demanding workshop environments; the V-758 is intended for regular operational use. Who manufactures this chuck and what is the SKU? The chuck is manufactured by Vertex and is listed under SKU V-758; Vertex supplies the component with the specified SK-50-100L taper and ER-40 compatibility. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
