406mm Indexing Rotary Table Three-Point Clamping 65mm Bore, 4°/Rev, 10" Readout, T-Slots 6x16mm - Vertex

Take advantage of precision indexing, robust load capacity and secure fixturing to keep production repeatable and efficient. The combination of a 406 mm working diameter and a reliable 4° indexing increment supports accurate multi-face machining while robust construction ensures vibration resistance. Order the rotary table directly via Metav Werkzeuge or contact our consultants for specification support.

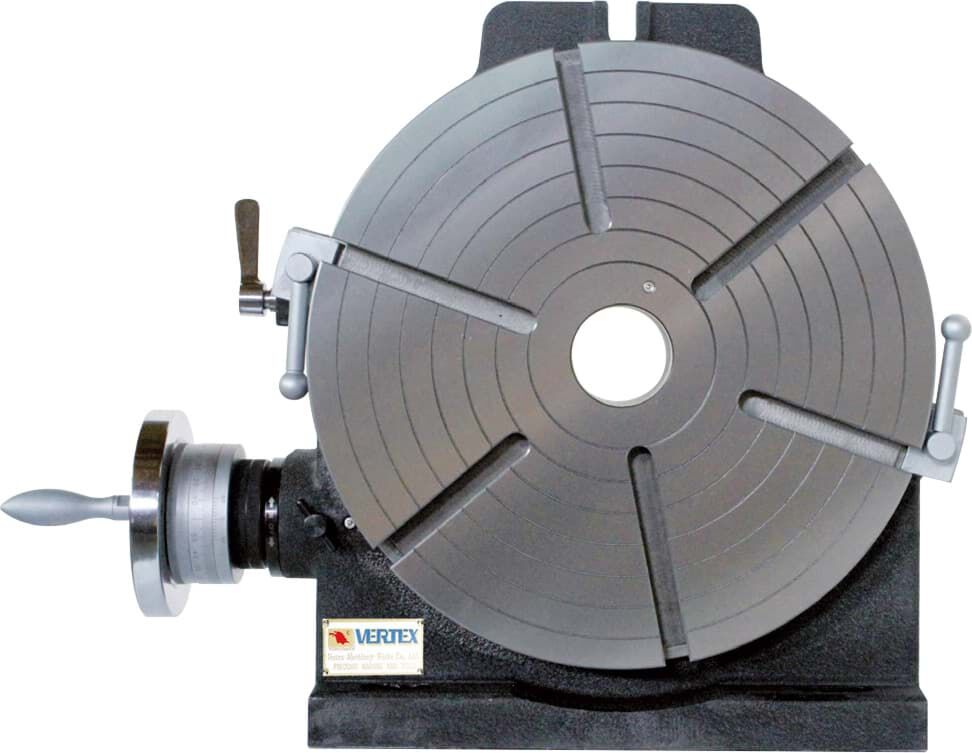

HVD-400 Round indexing rotary table — 406 mm diameter, 4° indexing (Vertex)

The HVD-400 is a compact round dividing table designed for precision machining and fixture applications where repeatable angular indexing and secure clamping are required

• 406 mm working diameter
• 4° indexing per spindle revolution
• T-slots 6 x 16 mm for secure fixturing
• Max load 140 kg horizontal, 70 kg vertical

Accurate indexing for reproducible multi-face machining

The rotary table delivers precise angular positioning through its 4° indexing per spindle revolution combined with a fine 10″ vernier reading, enabling repeatable setups for series work. Indexing here means that the table rotates in defined angular increments, so complex operations such as evenly spaced hole patterns or staged toolpaths are executed with consistent accuracy. The clear graduated scale reduces setup time and the risk of cumulative error, making the component flow more reliable and lowering scrap rates in medium-volume production.

Robust construction that stabilises heavier workpieces

A solid platform with a 406 mm diameter and a mass of approximately 122 kg provides a stable base for machining. The heavy build dampens vibration, which improves surface finish and cutter life during milling or peripheral grinding. Practical features such as T-slots 6 x 16 mm and a 65 mm mounting bore allow flexible clamping and compatibility with common fixtures, while rated capacities of 140 kg horizontal and 70 kg vertical define safe working limits for different orientations. These characteristics support confident workholding of bulky or asymmetrical parts with reduced re‑fixtures.

Versatile integration for workshop and production cells

Designed for use as a dividing table in milling, drilling and custom fixture setups, this rotary indexing table enhances workflow when incorporated into automated or manual stations. As a compact rotary indexing table, it suits toolrooms and small batch production where space is at a premium but precision is essential. Clear mechanical indexing and standardised mounting dimensions make retrofitting straightforward; end users benefit from reduced engineering time and faster changeovers. The construction and feature set are aligned with common clamping technology standards, simplifying the selection of accessories and reducing procurement complexity.

Contact Metav Werkzeuge today to discuss the Vertex HVD-400 rotary indexing table for your machining application, or request detailed mounting and fixturing advice by email at info@metav-werkzeuge.com or by phone on +49 2822 7131930

Technical Data

• SKU: HVD-400
• GTIN: 4061905084959
• eClass: 36600610
• Diameter: 406 mm
• Height: 130 mm
• Mass: 122 kg
• Max load horizontal: 140 kg
• Max load vertical: 70 kg

Core data

• Indexing increment: 4° per spindle revolution
• Reading resolution: 10″ vernier
• Mounting bore / clamping: 65 mm
• T-slots: 6 x 16 mm
• Manufacturer: Vertex

Special features

• Round dividing/rotary table design
• Designed for fixture and indexing tasks
• Suitable for milling and drilling applications
• Robust construction for vibration damping

FAQ

What level of angular accuracy does the unit provide?
The HVD-400 dividing table offers a 4° indexing increment with a 10″ vernier reading, enabling fine manual positioning and consistent repeatability for indexed operations.

Which materials and workpiece sizes can be clamped reliably?
With a 406 mm diameter, T-slots 6 x 16 mm and rated loads of 140 kg horizontal and 70 kg vertical, the table suits medium-sized workpieces across common machining materials where secure fixturing is required.

How is the table mounted to a machine or fixture plate?
Mounting uses the 65 mm bore and T-slot pattern for direct clamping or adapter plates; the dimensions follow standard workshop fixture practice for straightforward integration.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
