150mm Boring Bar SDQC With Coolant, Left-Hand, Solid Carbide Set 13-16mm - Teknik Makina

Take advantage of the combination of solid carbide construction and internal coolant to secure stable, high-precision performance in indexable-insert turning operations; order via Metav Werkzeuge or consult our specialists for application guidance.

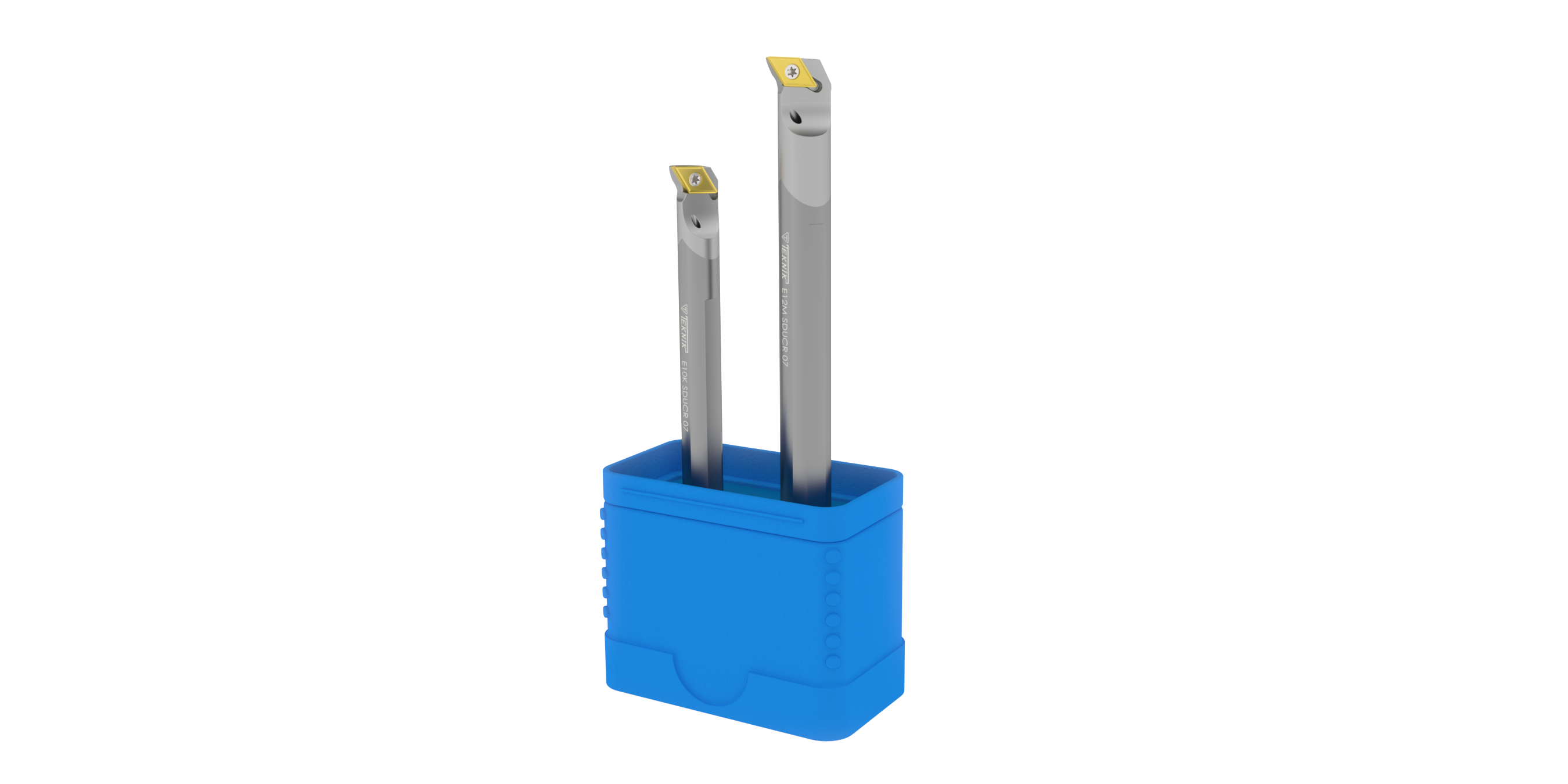

Boring bar SDQC with Coolant — solid carbide, internal coolant, for DCMT 0702 inserts (Teknik Makina)

A SDQC with Coolant boring bar set designed for left-hand turning applications, compatible with DCMT 0702 indexable inserts and supplied as a two-piece set.

• Solid carbide construction for high rigidity
• Internal coolant supply for improved chip evacuation
• Compatible with DCMT 0702 indexable inserts
• Left-hand cutting, set 13–16 mm, 2 pieces per set

Built for rigidity and repeatable accuracy

The design is focused on delivering consistent machining results through solid carbide construction, which increases rigidity and reduces vibration during internal turning. Greater stiffness translates into improved surface finish and tighter tolerances, making the tool suitable for precision operations on production lathes and turning centres. The robust build reduces insert wear under comparable cutting conditions, supporting predictable tool-change intervals and steady throughput.

Coolant-fed design increases tool life and process stability

With an integrated internal coolant channel, the holder supplies cutting fluid directly to the insert edge, improving chip control and reducing thermal load. This targeted cooling enables higher cutting parameters and longer insert life by preventing edge deformation and built-up edge formation. The coolant-fed geometry also helps evacuate chips from deep bores, lowering the risk of recutting and ensuring consistent cycle times for repetitive parts.

Practical compatibility and workshop-ready details

The IPS35TM set includes sizes for the 13–16 mm diameter range and is supplied as two items (E10K SDQCL 07 and E12M SDQCL 07), offering immediate interchangeability. It accepts DCMT 0702 indexable inserts and secures the insert with an M2.5x5.5 Torx screw (Torx key T8), enabling quick maintenance and reliable clamping. The compact 0.15 kg weight per item supports simple handling and fast setup in batch production. These features reduce downtime and simplify inventory management in an organised workshop.

Ideal use cases and operational advantages

Intended for left-hand turning tasks, the toolset performs best where access or machining strategy favours a left-hand cutting direction. The combination of coolant delivery and a carbide body makes the set well suited to demanding internal turning where thermal stability and chip evacuation are priorities. In practice, the configuration minimises rework and contributes to a smoother production flow by lowering the frequency of insert change-outs and reducing scrap rates.

Contact Metav Werkzeuge for tailored application advice on Teknik Makina coolant-fed boring bars and secure supply directly from Emmerich: info@metav-werkzeuge.com • +49 2822 7131930

Technical data

• SKU: IPS35TM
• Manufacturer: Teknik Makina
• Contents: E10K SDQCL 07 and E12M SDQCL 07

Facts

• Diameter range: 13–16 mm
• Pieces per set: 2
• Weight: 0.15 kg
• Torx key: T8
• Torx screw: M2.5x5.5
• Cutting direction: left-hand
• Material: solid carbide

Special features

• Internal coolant supply
• Compatible with DCMT 0702 indexable inserts
• Supplied as a set for quick interchange
• Compact, workshop-ready design

FAQ

How does the internal coolant improve performance?
The internal coolant channel delivers fluid directly to the cutting edge, improving chip evacuation and cooling; the IPS35TM coolant-fed holder from Teknik Makina reduces thermal stress and extends insert life.

Which inserts fit this holder?
The holder is designed for DCMT 0702 indexable inserts, offering secure clamping and straightforward insert replacement for consistent cutting geometry.

What sizes are included in the set?
The set covers a diameter range of 13–16 mm and is supplied as two pieces (E10K SDQCL 07 and E12M SDQCL 07), providing immediate compatibility for the listed bore sizes.

Is the tool right- or left-hand cutting?
This variant is a left-hand cutting tool, specified for operations that require a left-hand approach.

What material is the holder made from?
The holder is manufactured from solid carbide, chosen for its stiffness and wear resistance in precision turning applications.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
