6mm S06H SCLCR Drill Bar SCLC for CC-- Indexable Inserts, 95° Cutting Angle, 18mm Cutting Height - Teknik Makina

Robust compact design combines a small Ø6 mm cutting shank with compatibility for CC-- 0301 indexable inserts and a 95° cutting angle, delivering consistent internal profiling; the right‑hand S06H SCLCR configuration plus a shaft Ø8 mm ensures secure mounting and controlled chip formation. Order the boring bar directly via Metav Werkzeuge or ask our consultants if needed.

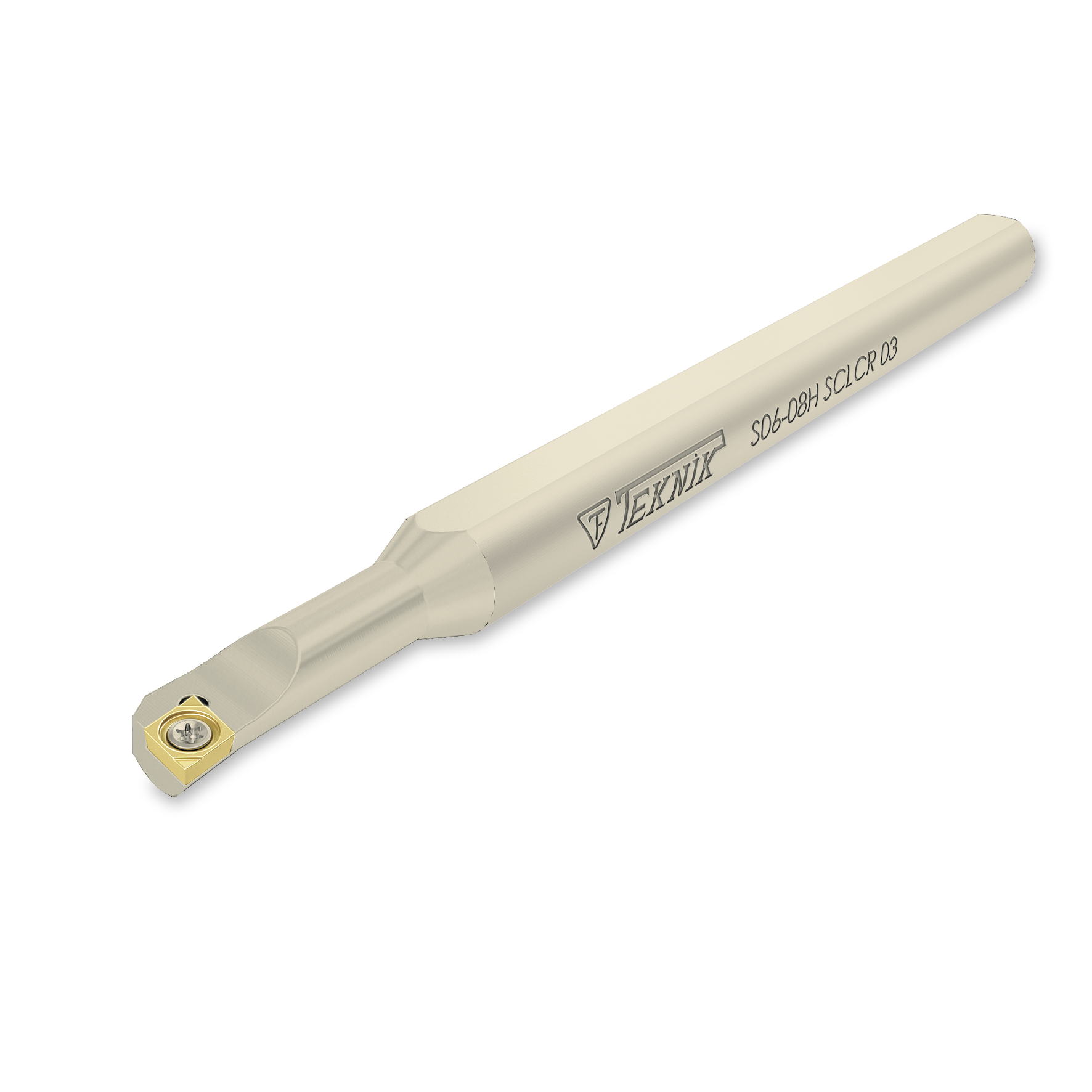

Boring bar SCLC for CC-- indexable inserts (S06H SCLCR, Teknik Makina) — Ø6 mm, 100 mm overall length

A boring bar SCLC for CC-- indexable inserts intended for right‑hand internal turning, optimised for compact bores and reliable insert seating

• Compact Ø6 mm body for tight bores
• Compatible with CC-- 0301 indexable inserts
• 95° cutting angle for precise internal profiling
• Shaft Ø8 mm for secure clamping

Accurate internal machining with a compact profile

The compact Ø6 mm tool body is designed for machining confined internal diameters where rigid control is required. With an overall length of 100 mm and a short exposed section, vibration is reduced and repeatability is improved; this results in better bore roundness and surface finish. The small diameter does not compromise stability when clamped correctly against a shaft Ø8 mm, so consistent machining results can be achieved even in narrow bores.

Stable clamping and proven insert interface

Compatibility with CC-- 0301 indexable inserts gives flexibility in edge geometry and grade selection. The S06H SCLCR mounting form is engineered for reliable insert seating and positive clamping, which lowers the risk of insert movement under cutting loads. The 95° cutting angle supports controlled chip flow and stable cutting forces, translating into longer insert life and predictable tool performance for series production.

Efficient setup and straightforward application

The right‑hand cutting direction and standard ISO designation simplify integration into existing toolholders and set‑ups. With a cutting height 18 mm and low overall weight (approx. 0.048 kg), the tool is easy to handle during tool changes and reduces operator effort without sacrificing rigidity. Clear compatibility with a common insert size reduces inventory complexity and speeds up changeovers in multi‑machine environments.

Engineered for dependable production results

Manufactured to industrial tolerances and intended for internal turning operations, this tool supports process stability and repeatable outcomes. The combination of compact diameter, secure clamping and a standard insert interface provides a cost‑effective solution for workshops requiring precision inside turns. Selection of the appropriate insert grade will determine achievable surface finish and tool life under the given machining conditions.

For reliable internal turning with Teknik Cutting Tools' SCLC boring bar, contact Metav Werkzeuge for expert advice and supply from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• Article number: K098TM
• Manufacturer: Teknik Cutting Tools

Facts

• Diameter: 6 mm
• Shaft diameter: 8 mm
• Overall length: 100 mm
• Cutting height: 18 mm
• Weight: 0.048 kg
• Cutting angle: 95°
• Cutting direction: right

Special features

• ISO designation: S06H SCLCR
• Type: SCLC for CC-- indexable inserts
• Compatible inserts: CC-- 0301
• Brand: Teknik Makina

FAQ

What insert size fits this boring bar?
The boring bar is designed for CC-- 0301 indexable inserts; the seat geometry and clamp align with that insert format to ensure secure seating and correct cutting geometry.

Is the tool right‑hand or left‑hand cutting?
This SCLC boring bar is specified for right‑hand cutting, matching standard internal turning directions in most lathes.

What is the overall length and diameter?
Overall length is 100 mm and the cutting diameter is 6 mm, suitable for tight internal diameters and limited access bores.

Which ISO designation applies to the shank?
The shank is designated S06H SCLCR, a standard mounting form for indexable boring bars facilitating compatible toolholder selection.

Can this boring bar be used for series production?
Yes; the combination of secure clamping, a 95° cutting angle and compatibility with common indexable inserts makes it suitable for repeated internal turning operations where process stability is required.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
