M206.045.T double-column height gauge (300 mm) by Metav IndustryLine — dial reading 0.01 mm, stainless steel

The M206.045.T double-column height gauge provides workshop-grade height and scribing measurements for toolrooms and production benches, combining stable column guidance with a fine-adjustment feed and a round carbide scriber.

• Dial indicator with 0.01 mm reading

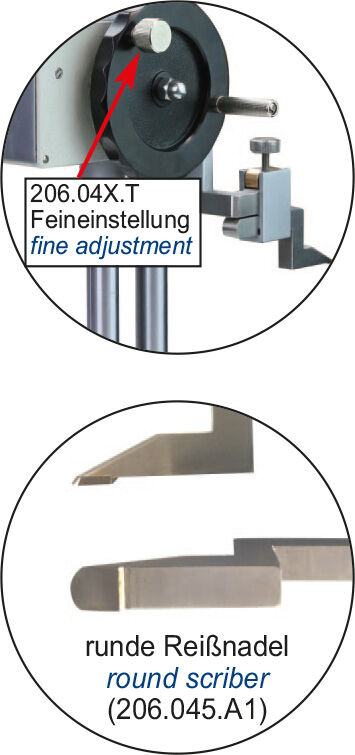

• Fine-adjustment feed for controlled scribing
• Robust stainless steel construction
• Carbide round scriber for lasting edges

High-precision layout and repeatable results

The gauge is built around a double-column construction that greatly reduces lateral play and torsion during measurement and scribing operations. Fitted with a mechanical dial that gives a 0.01 mm reading, the instrument supports repeatable height transfer and step marking with an overall stated accuracy ±0.03 mm, making it suitable for routine workshop tolerance checks and layout tasks. The inclusion of a dedicated handwheel and fine adjustment enables slow, controlled feed when marking fragile or pre-finished components, which reduces the likelihood of costly surface damage or repositioning errors.

Workshop durability and ergonomic handling

Made from stainless steel, the device withstands typical shop environments while keeping sliding surfaces stable. The carbide scriber with a round tip maintains its geometry over longer use cycles, so marking performance remains consistent and service intervals are extended. Weighing 7.2 kg, the assembly combines mass for stability with a compact footprint for bench or surface-plate use. The integrated double counter and dial arrangement record upward and downward movement separately, supporting clear documentation of repeated operations and easing handover between operators.

Practical integration into inspection and production workflows

Designed for routine layout and measurement up to 300 mm, this analogue instrument fits standard inspection processes where mechanical readouts are preferred for immediate visual control. The mechanical dial and separate counters simplify reporting during repetitive marking or step-setting tasks and avoid dependence on digital interfaces where traceability is recorded manually. The robust clamping and feed components ensure the gauge holds settings reliably during transfer operations, supporting consistent results across batches and aiding process stability in small to medium production runs.

For precise layout and lasting reliability choose the Metav IndustryLine M206.045.T — contact Metav Werkzeuge in Emmerich for tailored technical advice and delivery options.

Technical data

• Article number: M206.045.T
• GTIN: 4054469151625
• Customs tariff: 90173000
• Manufacturer: Metav IndustryLine

Key measurements

• Measuring range: 0–300 mm
• Accuracy: ±0.03 mm
• Dial reading: 0.01 mm
• Weight: 7.2 kg

Special features

• Double-column construction
• Fine-adjustment feed
• Handwheel operation
• Carbide (hardmetal) round scriber
• Mechanical dial indicator with separate up/down counter
• Clamping: 9x21
• Analogue instrument
• Intended for workshop layout and height measurement

FAQ

What is the stated accuracy of the M206.045.T double-column height gauge?
The M206.045.T double-column height gauge from Metav IndustryLine is specified with an accuracy of ±0.03 mm and a dial resolution of 0.01 mm.

Can the carbide scriber be replaced or reconditioned?
Yes, the round carbide scriber on the Metav IndustryLine gauge is a replaceable tooling item and can be reconditioned or swapped for serviceable tips to maintain marking quality.

Is the gauge suitable for use on a surface plate or in a production bench environment?
The robust double-column design and 7.2 kg mass make the gauge well suited to bench and surface-plate use for layout and repeatable marking tasks in production or toolroom settings.

Does the instrument provide measurements for both upward and downward movement?
The mechanical arrangement includes a double counter that records movements separately for upward and downward travel, simplifying repeatable setting and documentation.

Which materials is this height gauge intended for marking and layout?
The gauge is intended for standard workshop materials where mechanical scribing is suitable; the carbide tip is durable for regular use on workshop metals and components.
