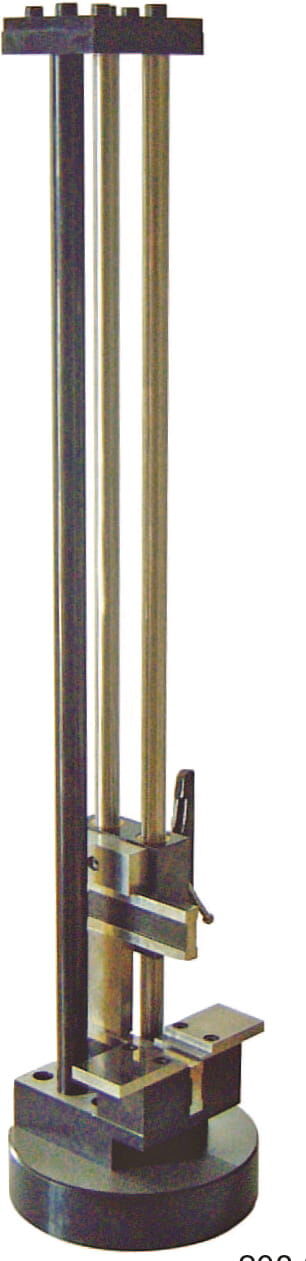

Setting fixture for internal dial gauges M208.030 — adjustable horizontal & vertical, 50–400 mm (Metav IndustryLine)

Setting fixture for internal dial gauges M208.030 provides a compact, stable reference for the calibration and pre‑setting of internal dial indicators and fine measuring instruments across inspection benches and workshop tables.

• Adjustable for horizontal and vertical setting
• Wide setting range 50–400 mm
• Lapped measuring jaws 9×19×100 mm
• 25 mm setting depth for recessed gauges

Reliable alignment that reduces setup time

The fixture offers horizontal and vertical adjustment, enabling alignment of internal dial gauges without repositioning the workpiece. The 50–400 mm setting range covers common inspection tasks in metalworking and assembly, reducing the need for multiple specialised tools. By allowing the instrument to be presented to a controlled reference surface, this tool increases repeatability and shortens inspection cycles — a clear efficiency gain for production and quality control.

Precision contact surfaces for consistent readings

Equipped with lapped measuring jaws sized 9×19×100 mm, the device delivers a flat, wear‑resistant contact face that preserves measurement integrity over repeated use. The 25 mm setting depth allows secure engagement with recessed or narrow‑neck internal indicators, ensuring that contact geometry remains constant. Together with the unit’s mass (approx. 10.4 kg) the result is a stable platform that minimises vibration and operator influence, translating directly into reliable measurement outcomes.

Workshop-ready design that supports everyday quality control

The construction emphasises practical handling: sturdy geometry and clear adjustment axes make orientation changes quick and unambiguous, while the compact footprint keeps the fixture at hand on inspection benches. As part of the Metav IndustryLine, the component is intended for regular workshop use where robust, repeatable setting operations are required. The combination of stable mass, precise contact faces and versatile adjustment addresses both routine checks and occasional special measurements with confidence.

Contact Metav Werkzeuge today to discuss the Metav IndustryLine M208.030 setting fixture and ensure the right configuration for precise internal dial indicator alignment.

Technical data

• SKU: M208.030
• GTIN: 4061905045158
• Weight: 10.4 kg

Facts

• Setting range: 50–400 mm
• Setting depth: 25 mm
• Measuring jaws: 9×19×100 mm

Special features

• Adjustment: horizontal and vertical possible
• Material: lapped measuring jaws

FAQ

What applications is this setting fixture intended for?
The setting fixture M208.030 is designed for the pre‑setting and alignment of internal dial gauges and fine measuring instruments in workshop and inspection environments.

Does the device support recessed internal indicators?
Yes, the fixture provides a 25 mm setting depth that facilitates secure contact with recessed or narrow internal indicators.

How does the fixture improve measurement repeatability?
Repeatability is improved by the combination of lapped measuring jaws, the unit’s mass for stability and the ability to orient the instrument horizontally or vertically, which keeps contact geometry consistent.

Is the M208.030 suitable for routine production inspections?
The robust design and wide 50–400 mm range make the M208.030 well suited to regular production and quality control tasks where repeatable, fast pre‑setting is required.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
