180mm Internal Calibration Set With 33 Parallel Gauge Blocks, Lapped Jaws, Packed Case - Metav IndustryLine

Reliable setting for internal dial gauges combines a wide 6–180 mm range with a set of 33 parallel end gauges and lapped measuring faces to ensure repeatable adjustments and stable reference points. Order the setting device directly via Metav Werkzeuge or contact our consultants for application-specific advice.

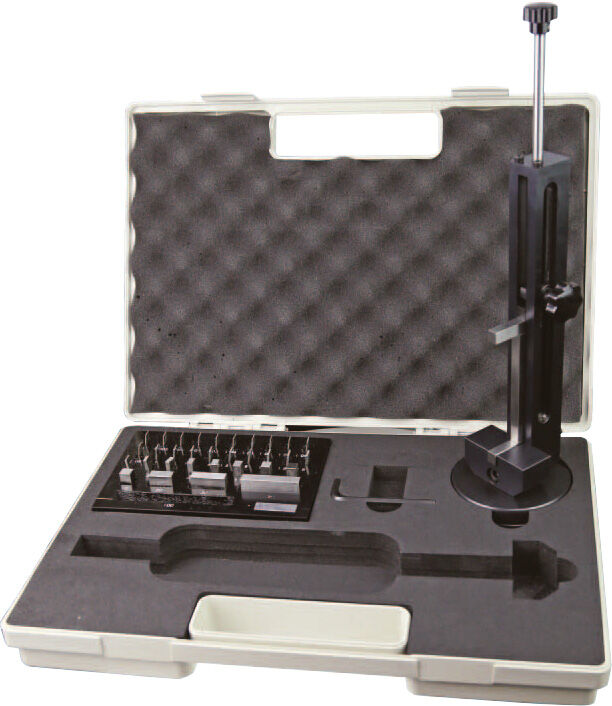

Setting device for internal fine measuring instruments M208.031.N — 6–180 mm range, 33 end gauges (Metav IndustryLine)

The Setting device for internal fine measuring instruments M208.031.N provides a compact, stable reference for the calibration and adjustment of internal dial gauges and fine bore measurement tools.

• Setting range 6–180 mm
• 33 parallel end gauges included
• Lapped measuring faces for stability
• Robust 3.8 kg base for repeatable use

Precision setting across the standard workshop range

The unit covers the Standard measurement band (maximum 180 mm), offering a practical compromise between reach and stiffness that suits everyday workshop and machine‑shop tasks. The integrated set of 33 parallel end gauges, graded Grade 2, simplifies stepwise setting across small to mid‑sized bores and internal features, reducing changeover time. As a dedicated adjustment standard for internal dial gauges and fine measuring instruments, the device streamlines setup work and strengthens process reliability by providing defined reference points for repeat checks.

Repeatable results through engineered contact and stability

Key to consistent settings are the lapped measuring faces and the solid construction that yields low deformation under clamping. The lapped jaws (measuring faces) and the specified jaw block size (9 × 10 × 60 mm) maintain contact geometry and reduce wear over repeated use, while the 25 mm effective setting depth provides a controlled engagement for many internal gauges. The mass of the base (3.8 kg) contributes to mechanical stability, meaning fewer micro‑movements during adjustment and therefore better reproducibility of the reference setting.

Faster inspection workflows and clear workshop benefits

By combining a broad setting span with a complete set of parallel end gauges, the device reduces the number of individual spare parts needed during setup and minimises downtime between checks. The practical configuration suits quality control benches and toolrooms where internal dial indicators require quick, reliable comparison against a stable master. Alongside the tangible productivity gains, the clear specification and robust contact surfaces support straightforward integration into routine inspection procedures and make the tool a dependable element of the measuring kit.

Request application guidance from Metav Werkzeuge for this Metav IndustryLine setting device M208.031.N with its 6–180 mm range and 33 parallel end gauges — our specialists in Emmerich will advise on fit and use for your inspection tasks

Technical data

• SKU: M208.031.N
• GTIN: 4061905045141
• Brand: Metav IndustryLine

Core specifications

• Setting range: 6–180 mm
• Setting depth: 25 mm
• Weight: 3.8 kg
• Measuring jaws: 9 × 10 × 60 mm
• End gauges: 33 parallel pieces
• Grade: Grade 2

Materials & features

• Lapped measuring faces
• Intended for internal fine measuring instruments / internal dial gauges
• Robust base for repeatable adjustments

FAQ

What setting range does the device cover?
The setting device M208.031.N covers a range from 6 to 180 mm, making it suitable for standard workshop measurement tasks.

What is included in the delivery?
Delivery comprises the setting device itself and a set of 33 parallel end gauges supplied as the reference accessories for stepwise internal settings.

What tolerance or grade applies to the end gauges?
The included parallel end gauges are supplied to Grade 2, providing defined increments for reliable comparative adjustments.

Are the measuring faces treated to reduce wear?
Yes, the device features lapped measuring faces, providing stable contact geometry and enhanced durability for repeated use.
