6-35mm Internal Setting Device Adjustable Stop Height And Width, Lapped Measuring Jaws, Supplied In Case - Metav IndustryLine

Benefit from precise, repeatable setups thanks to an adjustable stop and lapped measuring jaws that reduce setup time and minimise measurement uncertainty; ideal for internal dial‑gauge preparation and inspection tasks. Order the setting fixture directly via Metav Werkzeuge or contact our consultants for tailored advice.

Setting device for internal fine measuring instruments, 6–35 mm, stop 80×40 — adjustable stop and lapped jaws (Metav IndustryLine)

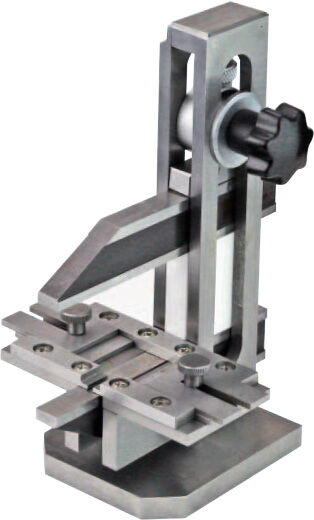

The Setting device for internal fine measuring instruments, 6–35 mm, stop 80×40 is a compact calibration fixture intended for preparing internal dial gauges and fine‑measuring instruments in workshop and inspection environments.

• Adjustable stop, height and width
• For internal dial gauge setup 6–35 mm
• Lapped measuring jaws 9×19×75 mm
• Delivered in protective transport case

Consistent, measurable set‑ups that save time

The fixture delivers repeatable settings for internal measurement tools by combining a clearly defined range of 6–35 mm with an 80×40 mm adjustable stop. This makes it straightforward to reproduce reference positions for dial gauges and comparable internal measuring devices, reducing the need for iterative adjustments and lowering scrap rates. The combination of rigid construction and finely adjustable stop enables reliable datum points that support efficient quality control and faster throughput in batch inspection routines.

Integrates into existing workflows with minimal effort

Designed for straightforward use on the workshop bench or inspection table, the device allows rapid height and width adjustment of the stop to match a variety of measurement tasks. The lapped measuring jaws provide a stable contact surface that minimises lateral play and ensures a clean seating for the gauge or probe. For teams seeking to reduce set‑up time, this translates into quicker changeovers between different diameters and faster preparation of internal measuring instruments for both repetitive production checks and sporadic precision tasks.

Robust construction for workshop endurance and traceable results

Weighing 6.6 kg, the fixture has sufficient mass to remain stable during setting operations while remaining manageable for handling and positioning. The 9×19×75 mm lapped jaws combine dimensional accuracy with wear resistance, offering a durable reference interface for prolonged use. Supplied in a protective transport case, the unit is suited to workshop environments where transport between workstations or secure storage is required. Its clear mechanical design supports traceability in inspection procedures and helps maintain the integrity of subsequent measurements.

Choose the Metav IndustryLine setting fixture for dependable internal gauge preparation and contact Metav Werkzeuge for specialist advice and delivery from Emmerich

Technical data

• Article number: M208.032.2
• GTIN: 4061905045592
• Manufacturer: Metav IndustryLine

Facts

• Range: 6–35 mm
• Setting depth: 35 mm
• Weight: 6.6 kg
• Jaw size: 9×19×75 mm

Special features

• Lapped measuring jaws
• Variable stop adjustable in height and width
• Stop dimensions: 80×40 mm
• Delivered in protective transport case

FAQ

What is the usable measuring range of the fixture?
The usable measuring range is 6–35 mm as specified for the setting device for internal fine measuring instruments.

Are the jaws finished to a precision surface?
Yes, the unit is supplied with lapped measuring jaws (9×19×75 mm) that provide a precisely finished contact surface.

Can the stop be adjusted for different diameters and heights?
The fixture features a variable stop adjustable in height and width, allowing adaptation to a wide variety of internal gauge set‑ups.

Is the device suitable for workshop transport?
The product is supplied in a protective transport case to facilitate safe movement between workstations.

Which manufacturer and article number identify this product?
This setting fixture is offered by Metav IndustryLine and listed under article number M208.032.2.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
