140mm Magnetic Indicator Stand With 135mm Cross Arm, 30kg Permanent Base - Metav IndustryLine

Compact magnetic mounting with 30 kg holding capacity and a low 140 mm profile supports reliable indicator work; combine this stability with the permanent magnetic base and adjustable cross arm for consistent measurement set-ups. Order the item directly via Metav Werkzeuge or ask our consultants for application advice.

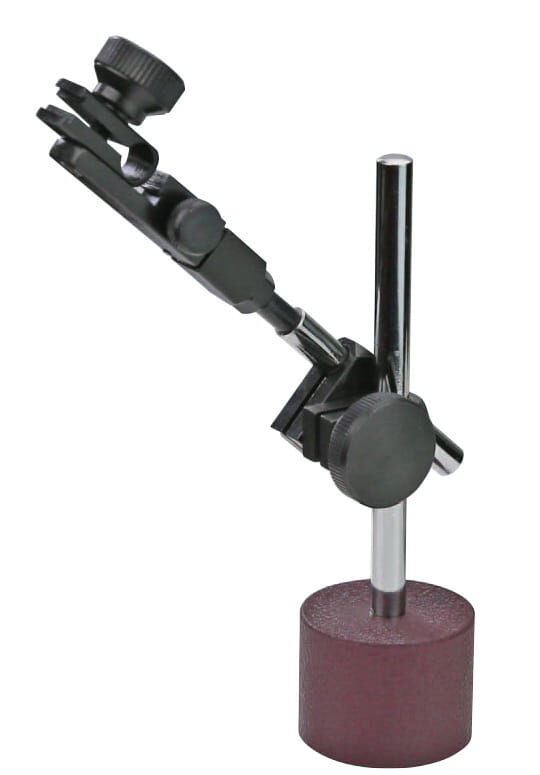

Magnet-Messstativ M208.111.2 – small magnetic stand, 30 kg holding force, 140 mm height (Metav IndustryLine)

A compact Magnet-Messstativ M208.111.2 designed to secure dial gauges or test indicators with a dovetail guide; the permanent magnetic base and slim column make it ideal for confined benches and machine-side inspections

• Compact 140 mm overall height
• 30 kg magnetic holding force
• Permanent magnetic base Ø40×30 mm

Stable mounting for accurate, repeatable readings

The small magnetic stand delivers a stable measuring platform by combining a sturdy permanent magnetic base with a compact column and cross arm. The result is reduced micro‑movement during readings and fewer re‑set operations on the shop floor. Thanks to the dovetail-compatible top, dial gauges and test indicators with a dovetail guide are held securely, which simplifies setup and limits indicator deflection. This dependable clamping reduces measurement variation and speeds up routine quality checks without relying on heavy or cumbersome fixtures.

Space-saving design that retains rigidity and accessibility

With an overall height of 140 mm and a lightweight construction of 0.5 kg, the stand offers a small footprint while maintaining the rigidity required for repeatable measurements. The base dimensions and arm geometry—including a cross arm and column engineered for minimal flex—allow close placement to workpieces and access to tight machine areas. The compact form factor speeds alignment and repositioning tasks, lowering setup times in production environments where bench space and quick changeovers are valuable. The configuration supports efficient workflows and consistent results.

Universal application across inspection and workshop tasks

As a universal magnetic stand, this model suits general workshop measuring, machine inspection, and bench‑level quality control. The permanent magnetic base provides trustworthy holding force for magnetic surfaces, and the combination of column and cross arm sizes supports versatile indicator positions. For operations that require frequent indicator changes or multiple measuring points, the stand offers a practical balance between manoeuvrability and stability. The reliable mechanical function, paired with a straightforward mounting interface, makes it suitable for both experienced operators and those new to workshop metrology.

For dependable workshop mounting choose the Metav IndustryLine magnetic stand and contact Metav Werkzeuge in Emmerich for tailored advice and supply: info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: M208.111.2
• GTIN: 4054469159478
• Tariff number: 90319000

Facts

• Overall height: 140 mm
• Weight: 0.5 kg
• Magnet strength: 24
• Holding capacity (label): 30 kg

Special features

• Permanent magnetic base
• Foot: Ø40×35, M6
• Foot plate / permanent foot: 40 × 30 mm
• Cross arm: Ø8×135
• Column: Ø8×105, M4
• Suitable for dial gauge or test indicator with dovetail guide
• Universal application

FAQ

What holding force does the magnetic stand provide?
The magnetic stand offers a labelled holding capacity of 30 kg and a listed magnet strength value of 24; this ensures secure placement on ferrous surfaces during inspection tasks.

Is the magnetic base permanent or switchable?
The base is a permanent magnetic base, designed for continuous holding force without a switch mechanism.

Which indicators are compatible with the stand?
Dial gauges or test indicators with a dovetail guide fit the top mounting; the stand is intended for standard dovetail‑type indicator interfaces.

How compact is the stand for machine‑side work?
With an overall height of 140 mm and a slim profile, the stand is compact enough for machine‑side measurements and tight bench spaces while still providing stable support.

Is this stand suitable for repeated on‑machine inspections?
Yes; the combination of permanent magnetic base and adjustable arm geometry allows for quick repositioning and reliable readings across repeated inspection cycles.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
