10-18mm Digital Internal Micrometer 0.01mm Resolution Reversible Measurement Force ≤2.2N In Case - Metav IndustryLine

Benefit from the combination of a compact 10–18 mm measurement range, a digital display with 0.01 mm resolution and a reversible measuring direction for flexible internal checks; order the instrument directly via Metav Werkzeuge or consult our specialists for technical advice.

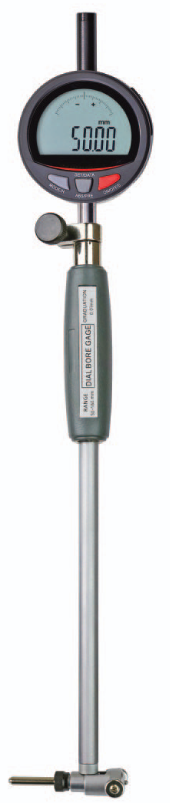

Digital internal fine measuring instrument 10–18 mm — digital dial, 0.01 mm resolution

The Digital internal fine measuring instrument 10–18 mm is a compact digital gauge designed for precise internal diameter inspection in fine mechanical and watchmaking applications.

• Compact 10–18 mm internal range
• Digital display with 0.01 mm resolution
• Reversible measuring direction for flexibility

Precision that reduces rework and inspection time

The instrument offers a digital display with 0.01 mm resolution and a declared accuracy of 0.01 mm, which establishes a clear, measurable basis for pass/fail decisions in small-bore inspection. The preset function enables a rapid zero or reference value to be set, speeding repeated checks and reducing handling steps. The specified measurement force ≤ 2.2 N limits the influence of operator pressure on readings; a lower, consistent contact force helps to maintain stable contact without deforming delicate parts, improving throughput and lowering the risk of rework.

Compact design tailored to micro applications

Classified in the Micro range (maximum measuring range 10–100 mm), this gauge is optimised for fine mechanical work where short jaws and high stiffness matter. The 10–18 mm span covers many common small bores in watchmaking, precision fittings and miniature components, while a measuring depth of 100 mm allows access into recessed features. The matt‑chromed device holder and compact probe geometry make the tool easy to position in tight spaces, supporting accurate, repeatable internal measurements even on small workpieces.

Practical functions that support shop‑floor quality control

Practical features include a reversible measuring direction for left- or right‑hand routines, a preset option for quick reference setting and a digital dial suited to rapid readout. The instrument is supplied with a set of measuring pins that cover the 10–18 mm span in defined steps, enabling fast selection of the closest probe for a given bore. Together these functions create a workflow-friendly gauge that integrates into incoming inspection, assembly checks and final control processes, improving documentation speed without adding complexity.

Contact Metav Werkzeuge for personalised technical guidance or to arrange an inspection at our Emmerich quality centre; our specialists will advise on fit-for-purpose use and measurement routines

Technical Data

• Article number: M208.260
• Type: Digital internal fine measuring instrument, 10–18 mm
• Resolution: 0.01 mm
• Accuracy: 0.01 mm
• Measuring range: 10–18 mm
• Measuring depth: 100 mm
• Measurement force: ≤ 2.2 N
• Measuring pin diameter: 3.5 × M 3.5
• Preset function
• Reversible measuring direction

Facts

• Measuring range min: 10 mm
• Measuring range max: 18 mm
• Display resolution: 0.01 mm
• Pass gauge / feeler: 0.5 mm
• Measuring pin set: 9 × positions covering 10–18 mm (±0.6 mm reference)

Special features

• Digital dial for direct readout
• Matt‑chromed device holder
• Preset (initial value set)
• Reversible measurement direction
• Suitable for micro internal diameter inspection

FAQ

What measurement range does the instrument cover?
The instrument covers internal diameters from 10 mm to 18 mm, making it suitable for micro‑range inspection tasks.

What resolution and accuracy are provided by the gauge?
The digital readout shows 0.01 mm steps and the declared accuracy is 0.01 mm, enabling clear pass/fail decisions on small bores.

Is the measuring direction fixed or reversible?
The measuring direction is reversible, allowing the gauge to be used comfortably in different orientations and setups.

What depth can be reached with this instrument?
A measuring depth of 100 mm permits access into moderately recessed bores and features.

How is repeatability handled for short‑run checks?
The instrument includes a preset function and a consistent measurement force (≤ 2.2 N) to support repeatable readings during serial checks.
