10-170° Digital Angle Gauge 100×150mm Sliding Beam, 0.05° Readout ±15′, Stainless Steel - Metav IndustryLine

Benefit from dependable angle measurement and simple handling: the stainless steel construction combined with a 10–170° measuring range and 0.05° resolution ensures fast, reproducible checks; the integrated locking screw and practical function keys shorten inspection cycles. Order the digital protractor directly via Metav Werkzeuge or contact the consultants for application advice.

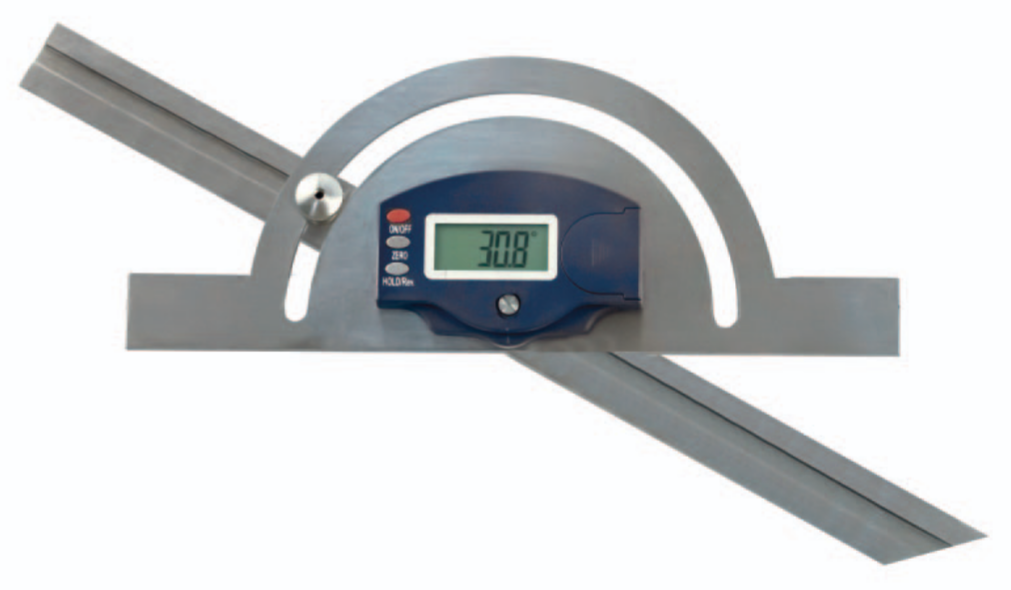

Digital protractor M214.044 – digital angle gauge with sliding rail (10–170°)

The Digital protractor M214.044 is a compact precision angle gauge designed for measuring and transferring angles in metalworking and inspection tasks, featuring a robust sliding rail for stable positioning.

• Stainless steel construction for corrosion resistance
• Measuring range 10–170° with 0.05° resolution
• Accuracy ±15′ for repeatable angle checks
• Zero, Hold and Rev functions with lock screw

Faster, repeatable angle checks for production routines

The instrument’s 10–170° measuring range and 0.05° readout turn routine angle checks into quick, quantifiable operations. With an accuracy of ±15′ (fifteen minutes), the device provides a reliable margin for incoming inspection and set-up verification, reducing uncertainty in alignment tasks. The digital display gives immediate numerical feedback, which simplifies pass/fail decisions and shortens throughput time compared with visual-only methods.

Intuitive controls that reduce measurement time

Key functions such as Zero, Hold and Rev are provided for flexible measurement sequences: zeroing on a reference face, freezing a reading for transfer and reversing the display direction for awkward orientations. The dedicated On/Off control and the locking screw for the sliding rail secure the measured position during transfer or marking. These operational features support efficient, reproducible workflows in jigs, fixtures and assembly tasks.

Robust build for the workshop environment

Constructed from stainless steel, the protractor resists corrosion and withstands daily workshop use. The device’s nominal footprint of 120 x 150 mm (B x L) and a cross-section 22 x 3 mm sliding beam combine accessibility with rigidity, aiding stable contact on profiles and flanges. The sliding rail design keeps the measuring faces aligned and reduces play, which is particularly useful when checking compound angles or setting up fixtures.

Practical integration into quality procedures

The product is supplied as a ready-to-use digital angle gauge with clear numeric output that can be recorded manually or incorporated into quality routines. Its compact form factor makes it suitable for bench inspections as well as machine-side checks. The combination of a clear resolution, dependable accuracy and straightforward operation helps lower scrap and rework rates by catching alignment errors early in the process.

Request a quotation or technical consultation from Metav Werkzeuge for application-specific advice and procurement assistance; Metav IndustryLine specialists in Emmerich are available to support workshop and production requirements.

Technical data

• Article number: M214.044
• Brand: Metav IndustryLine
• Material: stainless steel
• Measuring range: 10–170°
• Readout / resolution: 0.05°
• Accuracy: ±15′
• Dimensions (B x L): 120 x 150 mm

Facts

• Cross-section sliding beam: 22 x 3 mm
• Controls: On/Off, Zero, Hold, Rev
• Locking device: locking screw
• Display type: digital display
• SKU: M214.044

Special features

• Sliding rail for stable angle transfer
• Compact format for bench and machine-side use
• Corrosion-resistant construction
• Rapid, numeric angle readout

FAQ

Is the device suitable for transfer of set angles to workpieces? Yes. The Digital protractor M214.044 (Metav IndustryLine, SKU M214.044) is designed for angle measurement and transfer; the sliding rail and locking screw allow measured angles to be secured and marked on the workpiece.

What precision can be expected during routine checks? Routine checks deliver a resolution of 0.05° and an accuracy of ±15′, making the instrument suitable for common workshop inspection and set-up tasks where reproducible angle readings are required.

Can the display orientation be changed for awkward positions? The unit includes a Rev function that reverses the display direction, and a Hold function to freeze readings, which simplifies use in restricted or awkward measuring positions.
