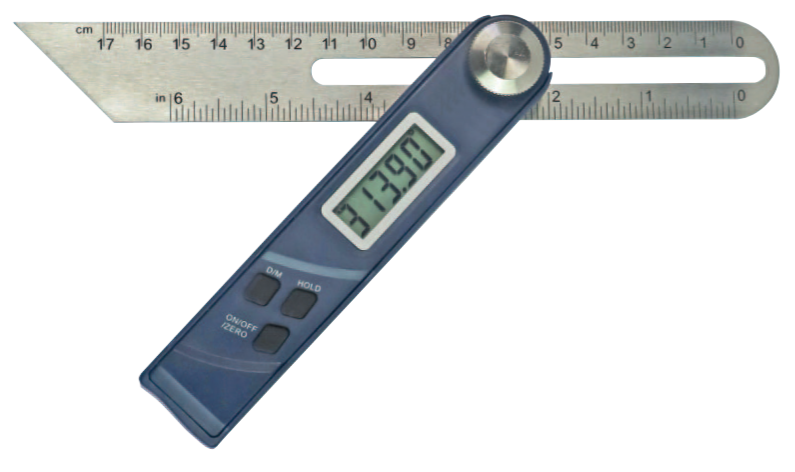

Digital Bevel Protractor, 200 x 30 mm blade, 0–360° (Metav IndustryLine)

The Digital Bevel Protractor, 200 x 30 mm is a workshop-grade angle gauge designed for precise angle setting, inspection and layout across a full 360° range.

• Slotted 200 x 30 mm blade
• High-resolution 0.05° / 1' readout
• On/Off, D/M and Hold controls
• Locking screw for repeatable fixes

Accurate readings for production control

The instrument delivers high-resolution measurements with a selectable 0.05° or 1' display, enabling reliable positioning where reproducibility is critical. With a continuous 360° measurement range, the device covers bevels, mitres and full rotations without the need for repositioning, reducing setup time and the risk of cumulative error. The clear numerical display and the D/M toggle ensure that values can be interpreted in the unit most useful for the task, which supports faster decision-making on the shop floor.

Blade design that suits tight workspaces

Equipped with a slotted blade sized at 200 x 30 mm, the gauge permits measurements in constrained locations and on stepped components where a solid blade might obstruct access. The rail profile of 200 x 27 x 1.2 mm provides a balance between rigidity and manoeuvrability so that angle transfer remains stable during handling. This geometry helps maintain contact with reference surfaces and reduces measurement scatter, translating into fewer rechecks and a smoother production flow.

Simple controls and secure fixing for repeatable results

Operation is straightforward thanks to dedicated On/Off, D/M and Hold controls that speed up routine tasks. The Hold function captures a reading for later documentation, while the locking screw secures the blade for repeated transfers of the same angle. These features combine to support both individual checks and batch inspection routines, improving throughput and ensuring traceable, repeatable outcomes without complex procedures.

Contact Metav Werkzeuge today to discuss how the Metav IndustryLine digital bevel protractor (M214.145.N) can be integrated into inspection workflows — tel +49 2822 7131930 or info@metav-werkzeuge.com

Technical data

• Article number: M214.145.N
• Name: Digital Bevel Protractor, 200 x 30 mm blade, 0–360°
• Brand: Metav IndustryLine
• Measurement range: 360°

Core specifications

• Blade dimensions: 200 x 30 mm
• Rail profile: 200 x 27 x 1.2 mm
• Display resolution: 0.05° or 1'
• Measurement sweep: 0–360°

Features and functions

• Slotted blade for access in tight spaces
• On/Off, D/M and Hold buttons
• Locking screw for repeatable settings
• Suitable for layout, inspection and angle transfer

FAQ

What resolution and units does the device provide?
The Digital Bevel Protractor (Metav IndustryLine, M214.145.N) offers a selectable resolution of 0.05° or 1', switched via the D/M control for degrees or minutes.

Can the blade be locked for repeated transfers?
Yes — the gauge is fitted with a locking screw so that set angles can be secured and transferred consistently using the bevel protractor (M214.145.N).

Is the tool suitable for full-circle measurements?
The instrument supports a full 360° measurement range, enabling complete rotation checks and mitre settings without repositioning.

How does the slotted blade benefit workshop tasks?
The slotted 200 x 30 mm blade on this digital bevel protractor allows access to narrow or stepped workpieces and simplifies inside and outside angle transfers.
