4 x 90° Digital Inclinometer 100 x 50 x 23mm Aluminium Housing, 0.1°/1 mm/m Readout - Metav IndustryLine

Take advantage of the robust aluminium housing and secure magnetic base for hands-free alignment, combined with simultaneous X/Y measurement to speed up machine set-ups. Order the device directly via Metav Werkzeuge or consult our specialists for application advice.

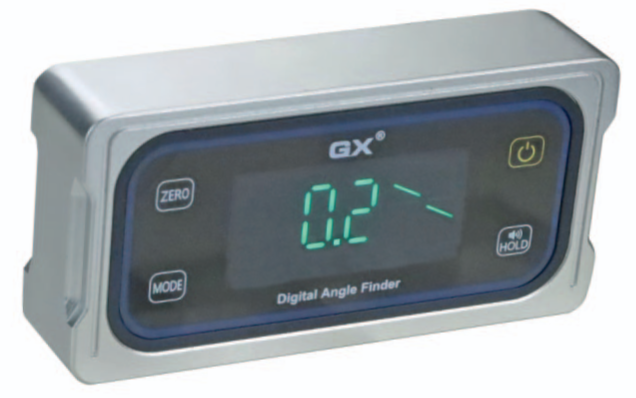

Digital tilt meter 4 x 90° (M215.214) — digital inclinometer with magnetic base and aluminium housing (Metav IndustryLine)

A Digital tilt meter 4 x 90° (M215.214) designed for rapid, repeatable angle checks on machine beds, fixtures and jigs where compact size and reliable positioning matter

• Robust aluminium housing with magnetic base
• Simultaneous X and Y inclination measurement
• Readings in °, mm/m and % with 0.1° resolution
• Touch controls with auto shut-off for battery life

Secure placement and rapid checks for workshop use

The compact 100 x 50 x 23 mm format combines a corrosion‑resistant aluminium housing with a base that includes a prism and a permanent magnet, so the instrument stays firmly in place on ferrous surfaces. Fast, repeatable set-ups are possible because the unit holds position during adjustment and inspection, reducing the need for clamps or temporary supports. The solid casing also withstands everyday workshop handling, making the tool suitable for routine alignment tasks on machine spindles, fixtures and assembly jigs.

Dual-axis readings that reduce set-up time

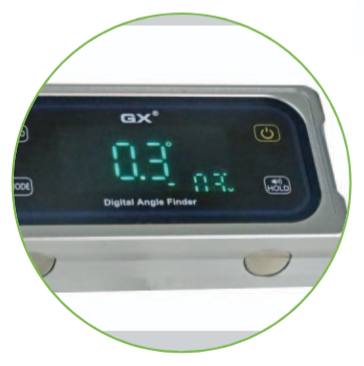

Designed for simultaneous measurement in two axes, the instrument provides real‑time inclination in both X and Y directions, which shortens alignment workflows and minimises rework. The display can show values in degrees, mm/m or %, and offers both relative and absolute readouts so reference and comparison checks are straightforward. An integrated inclination‑direction bar and a display that always orients in the correct direction help prevent misreading and speed decision making on the shop floor.

Intuitive operation that keeps inspections efficient

Operation is handled via capacitive touch controls — On/Off, Zero, Hold/Beep and Mode — which enable one‑handed adjustments and immediate capture of a stable reading. The unit runs on 2 x AA batteries (not included) and features an automatic shut‑off after approximately three minutes to preserve battery life. The Hold and Beep functions support noisy environments and unattended measurements, ensuring recorded values are preserved when immediate notation is impractical.

Accurate, compact instrument for alignment and QA

With an indicated resolution of 0.1° and an accuracy around ±0.2°, the device provides reliable precision for routine alignment, level checks and angular verification tasks. The compact inclinometer is especially useful where a small form factor is required but measurement certainty cannot be compromised — for instance, aligning fixtures, checking table tilt or verifying component angles during assembly. Clear, numeric readouts combined with the magnetic mounting translate technical performance into everyday productivity gains.

For hands‑free, repeatable angle control with Metav IndustryLine quality, contact Metav Werkzeuge in Emmerich for stock availability and tailored technical advice

Technical data

• Article number: M215.214
• Manufacturer: Metav IndustryLine
• SKU: M215.214

Facts

• Measurement range: 4 x 90°
• Resolution: 0.1°
• Accuracy: ±0.2°
• Dimensions: 100 x 50 x 23 mm
• Auto shut-off: approx. 3 minutes

Special features

• Aluminium alloy housing
• Simultaneous measurement in X and Y direction
• Base with prism and permanent magnet
• Display modes: °, mm/m, %
• Relative and absolute readouts
• Display always in correct direction
• Inclination direction bar
• Touch buttons: On/Off, Zero, Hold/Beep, Mode
• Power: 2 x AA batteries (not included)

FAQ

How accurate is the instrument for alignment checks?
The digital tilt meter delivers a resolution of 0.1° and an accuracy of approximately ±0.2°, suitable for standard workshop alignment and QA tasks.

Can the device measure both axes at the same time?
Yes, the inclinometer supports simultaneous X and Y readings, allowing faster set‑ups and fewer measurement steps.

Which units and readout modes are available?
The display provides values in degrees, mm/m and %, with both relative and absolute modes selectable for different verification scenarios.

What power source does the unit use and is there energy saving?
The instrument is powered by 2 x AA batteries (not supplied) and includes an automatic shut‑off after about three minutes to preserve battery life.

Is the base suitable for magnetic mounting on machine beds?
Yes, the base combines a prism with a permanent magnet, enabling secure mounting on ferrous surfaces for hands‑free operation.
