1000mm Bore Distance Digital Caliper Cone Ø20mm, Fine Adjustment, mm/inch Display, ABS/PRESET, Supplied In Case - Metav IndustryLine

Combining a 1,000 mm measuring range, a 20 mm measuring cone and a clear digital readout, this instrument delivers reproducible bore‑centre distances for large assemblies; its hardened stainless steel construction and fine‑adjustment mechanism support consistent results across production runs — order directly via Metav Werkzeuge or consult our specialists for application advice.

Digital bore-distance caliper M240.295 — 1,000 mm range, 20 mm cone (Metav IndustryLine)

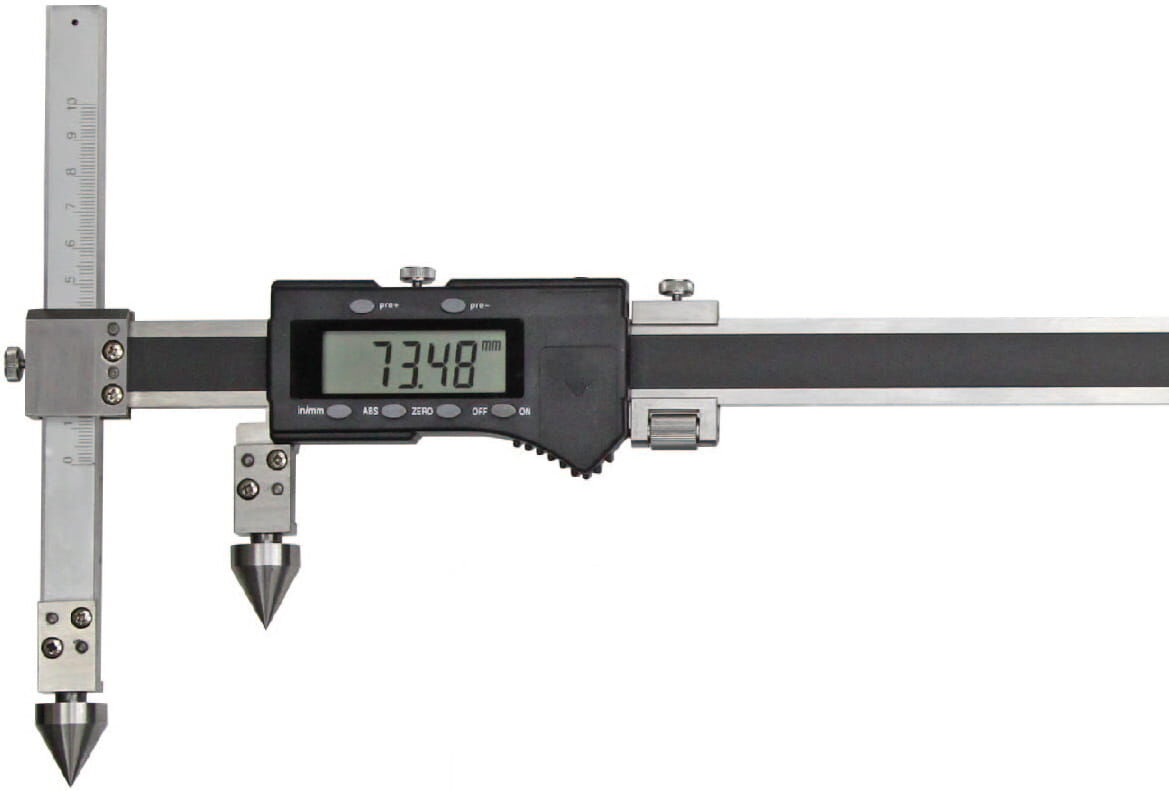

A Digital bore-distance caliper M240.295 for precise measurement of bore-to-bore distances up to 1,000 mm, featuring a 20 mm measuring cone and fine adjustment for repeatable alignment.

• Digital readout with mm/inch and ABS/INC
• Measuring range 20–1000 mm
• Fine-adjustment for exact positioning
• Hardened stainless steel construction

Engineered for large‑format bore measurements that stay reproducible

The long‑span design targets the demands of larger assemblies where reach and rigidity matter: classified in the Mit Gross category for ranges up to 1,000 mm, the instrument keeps deflection and handling effects to a minimum while enabling measurements over extended distances. The hardened stainless steel beam and robust jaw geometry preserve straightness and resist wear, which reduces drift over time and maintains a predictable measurement baseline for serial checks.

Fast, traceable digital results with industrial connectivity

A clear digital readout provides standard functions (mm/inch, ABS/INC, zero/preset) and a resolution of 0.01 mm, allowing quick, unambiguous readings and straightforward documentation. The caliper is fitted with a data output (RB 2) for integration into inspection routines or data collection systems, simplifying quality control and reducing transcription errors during batch production. The combination of digital clarity and data export supports efficient process control and traceability.

Precise positioning and handling for bore centres and long fixtures

The 20 mm measuring cone and the included fine‑adjustment mechanism enable accurate placement in bores and on locating surfaces; the short cone base (L1 = 70 mm) and the extended probe length (L2 = 400 mm) make it suitable for staggered or recessed centres. Paired with the fine feed, the instrument reduces sensitivity to operator pressure and facilitates reproducible contact, which is crucial when measuring multiple points on large housings or jigs.

Durable build for workshop and production environments

Weighing approximately 3.6 kg, the instrument balances stability and manageability for two‑handed or supported single‑operator tasks. The hardened stainless construction resists corrosion and mechanical wear, lowering life‑cycle costs through extended service intervals. The caliper conforms to the manufacturer's Werksnorm, offering a factory standard of quality suitable for routine workshop use and in‑line inspection stations.

Discuss measurement requirements with Metav Werkzeuge — call +49 2822 7131930 or email info@metav-werkzeuge.com to arrange delivery from Emmerich and specify the Metav IndustryLine M240.295 for your application

Technical Data

• Article number: M240.295
• GTIN: 4054469159133
• eClass: 21170344

Facts

• Measuring range: 20–1000 mm
• Measuring cone diameter: 20 mm
• Resolution: 0.01 mm (0.0005 in)
• Weight: 3.6 kg
• Data output: RB 2

Special features

• Material: hardened stainless steel
• Digital functions: ON/OFF, mm/inch, ABS/INC, zero/preset
• Fine adjustment: yes
• Norm: Werksnorm
• Probe lengths: L1 = 70 mm, L2 = 400 mm

FAQ

What applications is this caliper suitable for?
The Metav IndustryLine M240.295 is designed for measuring bore‑to‑bore distances and centre spacings on large components where a long measuring range and high repeatability are required.

What reading accuracy and resolution can be expected?
The instrument offers a resolution of 0.01 mm and a digital display with standard ABS/INC functions; this supports reliable workshop and production checks with clear numeric feedback.

Can the measurements be exported to a data system?
Yes — the caliper includes a data output (RB 2) to transfer measured values into inspection software or data‑collection setups.

Is the caliper robust enough for daily workshop use?
Constructed from hardened stainless steel, the device is built to withstand regular handling and maintain straightness and wear resistance in demanding environments.

Are fine adjustments provided for delicate positioning?
A dedicated fine‑adjustment mechanism is integrated to facilitate exact probe placement and repeatable contact in bores and recessed features.
